Sony HCD-DZ777K - Chassis Section

76
HCD-DZ265K/DZ266K/DZ270K/DZ570K/DZ777K
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-1382-421-A POWER BOARD, COMPLETE
(DZ265K/DZ266K/DZ270K:PH,SP)
101 A-1382-609-A POWER BOARD, COMPLETE (DZ270K:EA)
101 A-1392-694-A POWER BOARD, COMPLETE
(DZ570K:PH,SP/DZ777K:SP)
101 A-1452-056-A POWER BOARD, COMPLETE (DZ570K:EA)
101 A-1519-580-A POWER BOARD, COMPLETE (DZ270K:TH)
101 A-1519-582-A POWER BOARD, COMPLETE
(DZ570K:TH/DZ777K:TH)
102 2-677-839-01 +PWH 3X8 (SUMITITE)
103 4-232-478-31 FOOT
104 4-231-099-91 SHEET, RADIATION
105 3-077-331-21 +BV 3 (3-CR)
106 1-828-293-11 WIRE (FLAT TYPE) (5 CORE)
107 1-828-359-11 WIRE (FLAT TYPE) (19 CORE)
(DZ270K/DZ570K/DZ777K)
107 1-828-369-11 WIRE (FLAT TYPE) (21 CORE) (DZ265K/DZ266K)
108 1-828-337-11 WIRE (FLAT TYPE) (15 CORE)
(DZ265K/DZ266K/DZ270K)
108 1-828-347-11 WIRE (FLAT TYPE) (17 CORE) (DZ570K/DZ777K)
109 A-1441-334-A IO-COMPONENT BOARD, COMPLETE
(DZ265K/DZ266K)
109 A-1441-418-A IO-COMPONENT BOARD, COMPLETE (DZ777K)
109 A-1442-933-A IO-COMPONENT BOARD, COMPLETE (DZ270K)
109 A-1442-935-A IO-COMPONENT BOARD, COMPLETE (DZ570K)
110 3-077-331-11 +BV 3 (3-CR)
111 3-100-158-01 SHEET, RADIATION (DZ777K)
111 3-100-158-21 SHEET, RADIATION (EXCEPT DZ777K)
112 3-100-158-11 SHEET, RADIATION
113 4-231-099-41 SHEET, RADIATION
114 1-828-296-11 WIRE (FLAT TYPE) (7 CORE)
9 115 A-1441-337-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ265K/DZ266K)
9 115 A-1441-384-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ270K:PH,SP,TH)
9 115 A-1441-412-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ570K:PH,SP,TH)
9 115 A-1441-420-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ777K)
9 115 A-1545-341-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ270K:EA)
9 115 A-1545-352-A MAIN BOARD, COMPLETE (for SERVICE)
(DZ570K:EA)
116 3-273-733-01 COVER (CDM-DSR) (RU,EA,PH)
116 3-273-733-11 COVER (CDM-DSR) (SP,TH)
117 A-1419-028-A SCORE BOARD, COMPLETE
0 F901 1-576-233-51 FUSE (H.B.C.) (T6.3HA/250V) (EXCEPT EA)
0 F901 1-576-300-51 FUSE, H.B.C. (T8HA/250V) (EA)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#5 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
Note: If the wire (fl at type) was replaced, fold it some as
the wire (fl at type) before replacement.

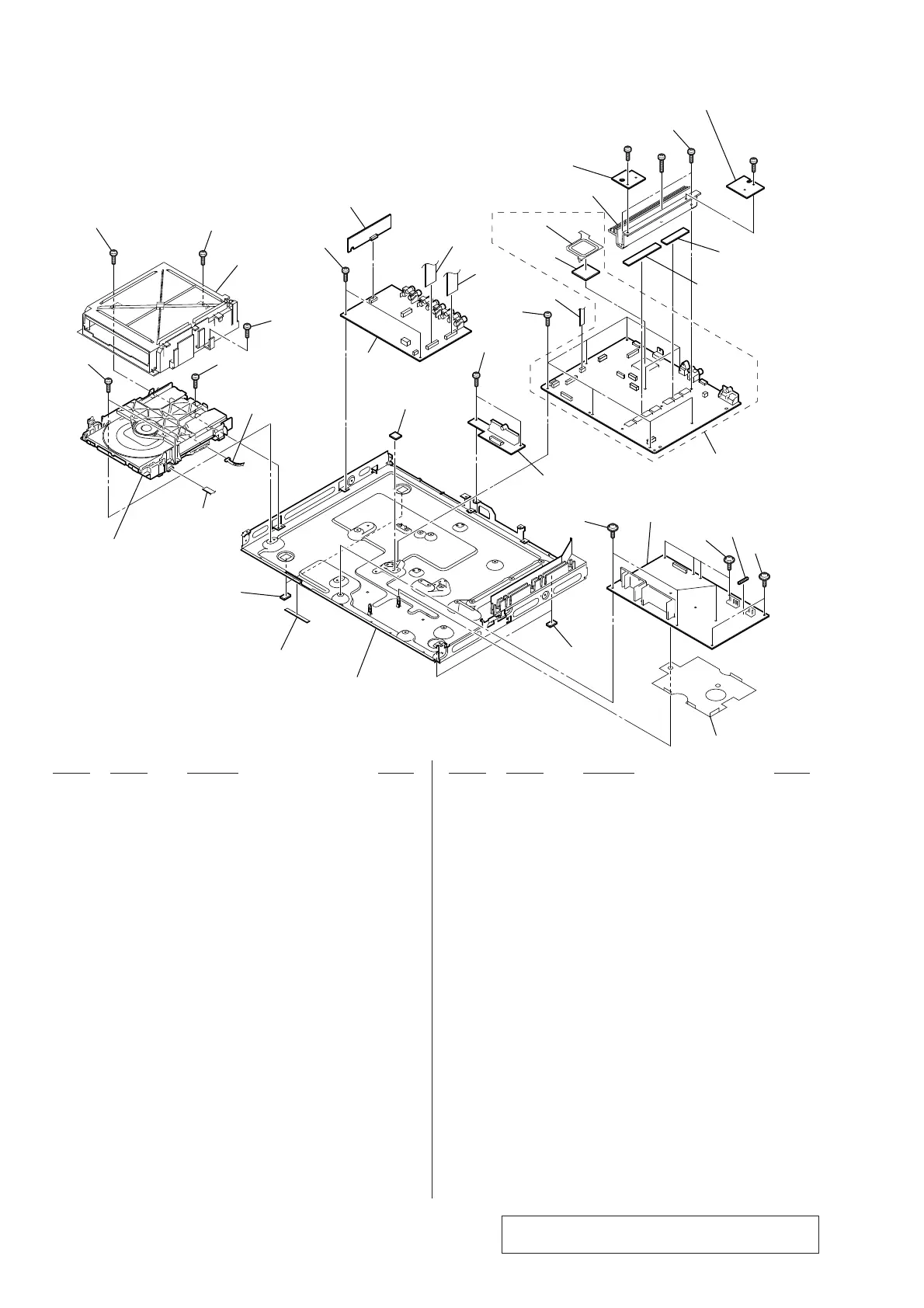

7-3. CHASSIS SECTION
101
102
102
103
104
105
105
109
107
108
110
111
112
113
114
115
117
105
105
105
116
105
106
105
105
103
102
#5
#1
#1
not supplied
not supplied
F901
not supplied
not supplied
not supplied
(HEAT SINK A board)
not supplied
(SPEAKER board)
not supplied
(HEAT SINK B board)
not supplied
not supplied
CDM85-DVBU102
