HCD-DZ265K/DZ266K/DZ270K/DZ570K/DZ777K
51 2-889-990-01 KNOB (VOL)
52 3-273-726-01 ORNAMENT (DSR) (EXCEPT DZ777K)
52 3-273-726-11 ORNAMENT (DSR) (DZ777K)
53 3-273-728-01 BUTTON (PLAY-SP) (EXCEPT DZ777K)
53 3-273-729-02 BUTTON (PLAY) (DZ777K)
54 3-943-995-01 EMBLEM (NO. 5), SONY
55 3-273-724-21 WINDOW, INDICATION (DSR-1) (DZ270K)
55 3-273-724-31 WINDOW, INDICATION (DSR-1) (DZ265K)
55 3-273-724-61 WINDOW, INDICATION (DSR-1) (DZ570K)
55 3-273-725-11 WINDOW, INDICATION (DSR-2) (DZ777K)
55 3-298-415-11 WINDOW, INDICATION (DSR-3) (DZ266K)
56 3-280-669-01 SHEET (DSR WINDOW), ADHESIVE
57 3-273-722-42 PANEL (DSR-1), FRONT (DZ265K)
57 3-273-722-51 PANEL (DSR-1), FRONT
(DZ270K/DZ570K/DZ777K)
57 3-273-723-21 PANEL (DSR-1), FRONT (DZ266K)
58 3-273-730-01 BUTTON (POWER-DSR) (EXCEPT DZ266K)
58 3-273-730-11 BUTTON (POWER-DSR) (DZ266K)
59 3-273-732-01 FILTER, COLOR
60 3-273-731-01 HOLDER (FL)
61 A-1382-431-A FL BOARD, COMPLETE
62 3-087-053-01 +BVTP 2.6 (3CR)
63 1-828-307-11 WIRE (FLAT TYPE) (9 CORE)
64 1-828-363-11 WIRE (FLAT TYPE) (19 CORE)
65 A-1441-372-A JACK BOARD, COMPLETE (RU,EA)
65 A-1441-382-A JACK BOARD, COMPLETE (PH,SP,TH)
ND100 1-519-988-11 INDICATOR TUBE, FLUORESCENT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

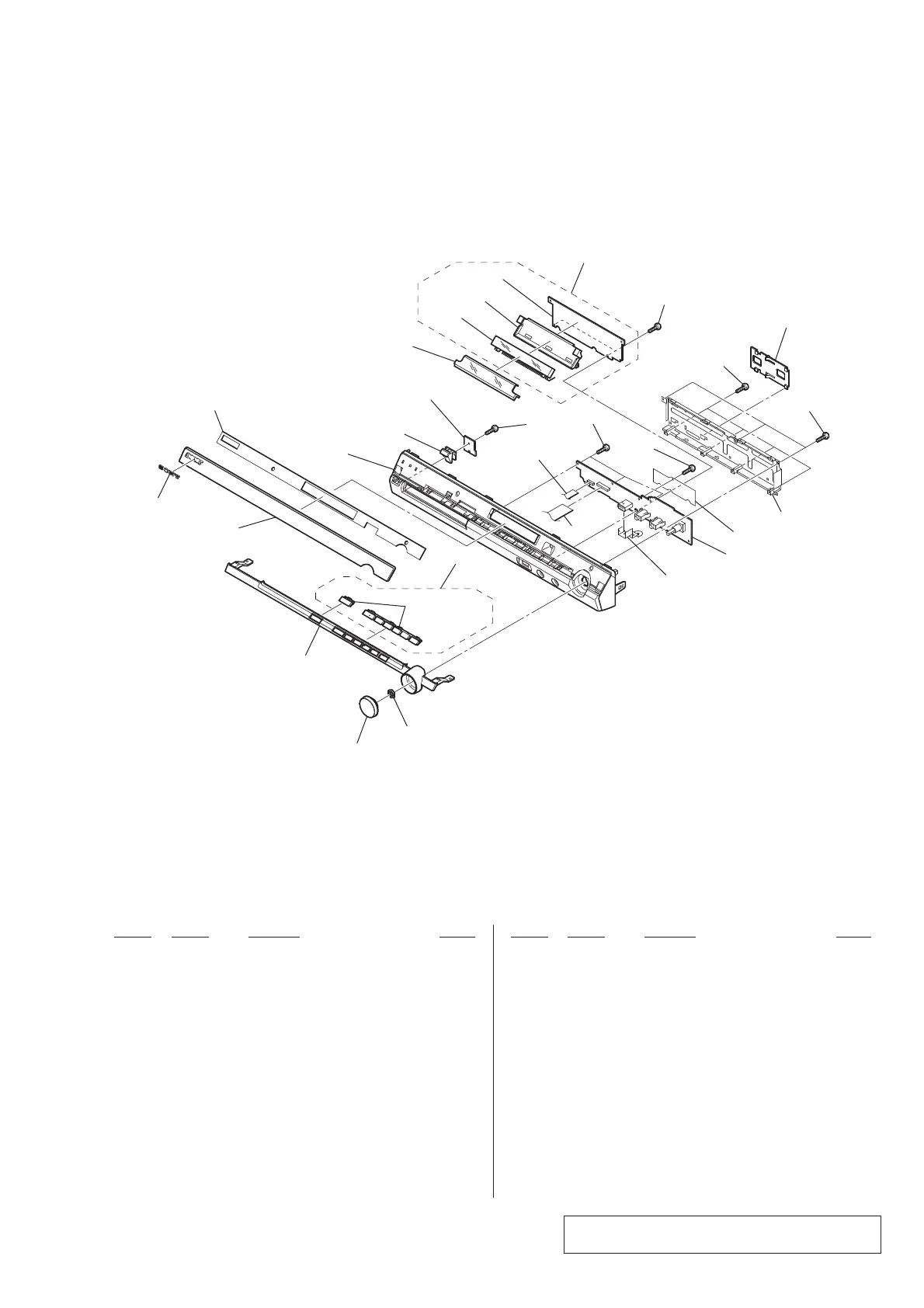

7-2. FRONT PANEL SECTION
Note: If the wire (fl at type) was replaced, fold it some as
the wire (fl at type) before replacement.
51
not supplied
(P-SW board)
ND100
not supplied
not supplied
not supplied
supplied with
S107
not supplied
not supplied
not supplied
52
53
54
55
56
57
58
59
60
61
62
62
62
63
64
65
62
62
62
To Next Page
