Sony HCD-EC50 - SECTION 7 EXPLODED VIEWS; 7-1. OVERALL SECTION

38
HCD-EC50
2 2-649-133-41 CABINET, REAR (KR, AUS)
3 2-649-130-11 PANEL (R), SIDE (EXCEPT US)
3 2-649-130-21 PANEL (R), SIDE (US)
4 3-254-143-11 SCREW (B3), (+) BV TAPPING
5 3-363-099-32 SCREW (CASE 3 TP2)
#1 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
•Abbreviation
AUS: Australian model
CET : East Europian and Russian models
CND : Canadian model
E3 : 240V AC area in E model
KR : Korean model
SP : Singapore model
Ref. No. Part No. Description Remark
1 2-649-129-11 PANEL (L), SIDE (EXCEPT US)
1 2-649-129-21 PANEL (L), SIDE (US)
2 2-649-133-01 CABINET, REAR (US)
2 2-649-133-11 CABINET, REAR (CND)
2 2-649-133-21 CABINET, REAR (E3, SP)
2 2-649-133-31 CABINET, REAR (AEP, UK, CET)

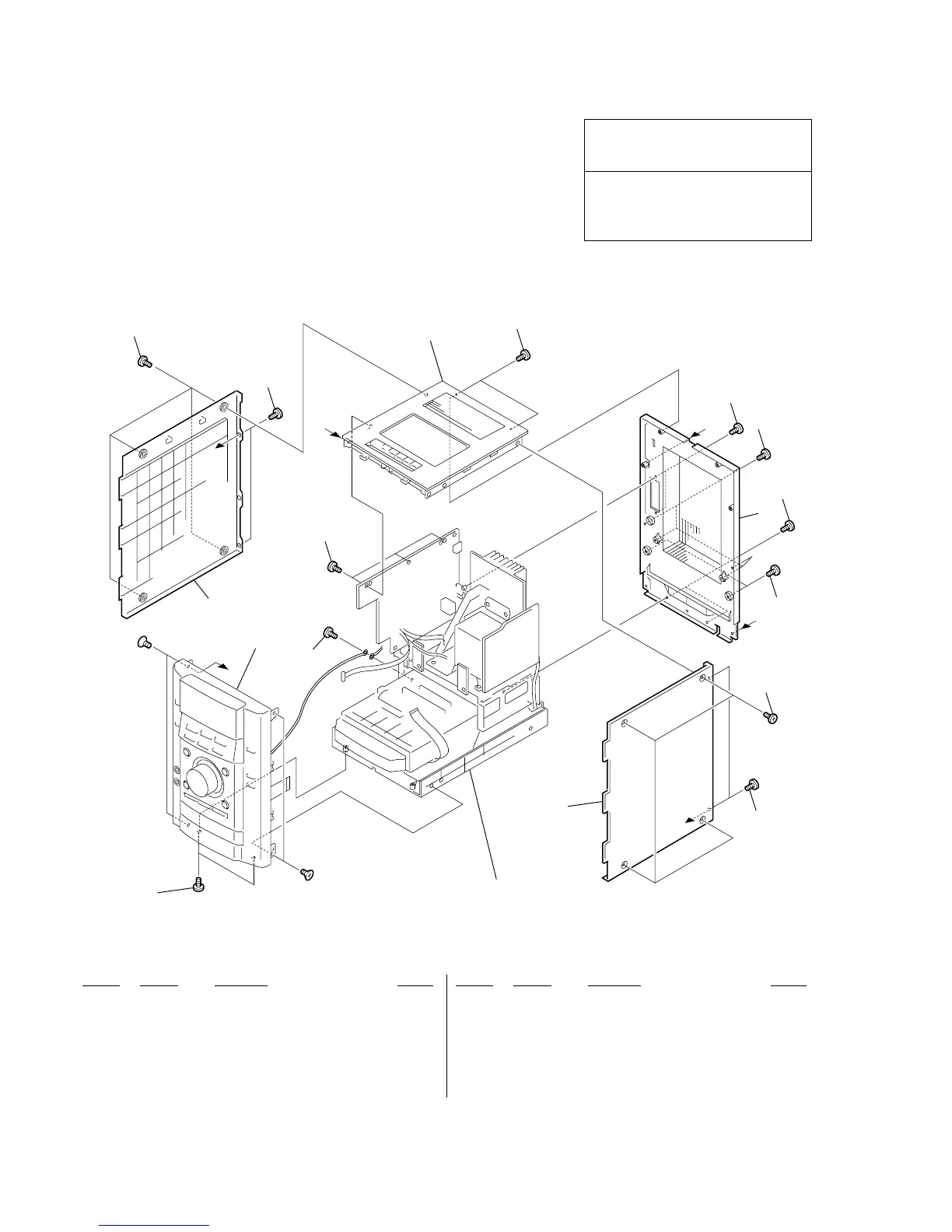

7-1. OVERALL SECTION
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque 0
sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant le
numéro spécifié.
Ref. No. Part No. Description Remark
A
A
B
B
C
C
3
2
4
4
4
4
5
4
4
4
4
4
5
front panel
section
chassis section, CD section and
Base unit (BU-K6BD83S-WOD) section
top section
#1
#1
1
4
Ver. 1.3
