Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

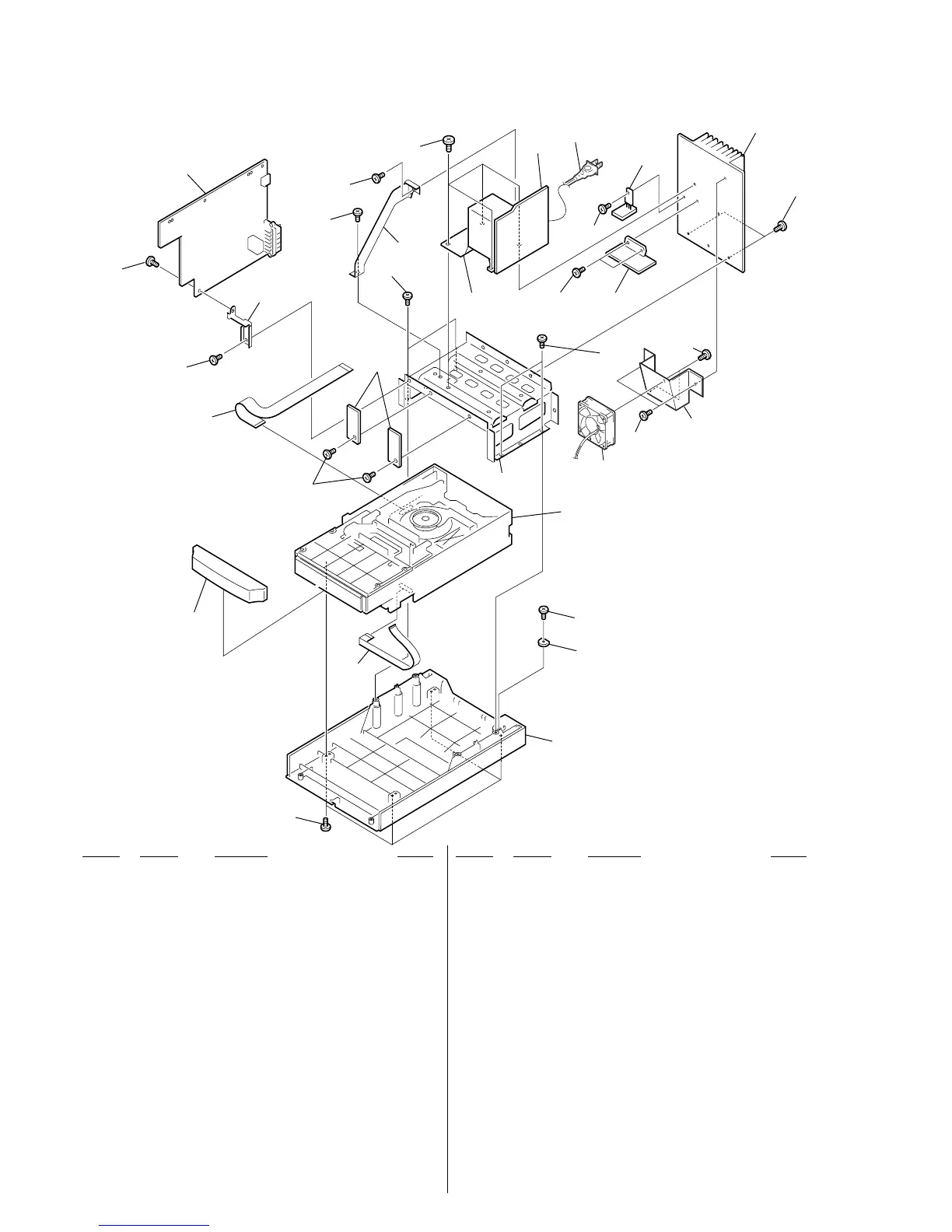

7-3. CHASSIS SECTION
101 2-649-153-01 CHASSIS (MAIN MOLD) (US)
101 2-649-153-11 CHASSIS (MAIN MOLD) (CND)
101 2-649-153-21 CHASSIS (MAIN MOLD)
(AEP, UK, CET, SP, KR, AUS)
101 2-649-153-41 CHASSIS (MAIN MOLD) (E3)
102 3-254-143-11 SCREW (B3), (+) BV TAPPING
103 1-828-974-21 WIRE (FLAT TYPE) (13 CORE)
104 2-649-127-01 PANEL, TRAY
105 1-828-643-21 WIRE (FLAT TYPE) (23 CORE)
106 3-905-609-31 SCREW (TRANSISTOR)
107 A-1144-848-A MAIN BOARD, COMPLETE (US, CND)
107 A-1169-435-A MAIN BOARD, COMPLETE (E3, SP, AUS)
107 A-1169-436-A MAIN BOARD, COMPLETE (AEP, UK, CET)
107 A-1181-748-A MAIN BOARD, COMPLETE (KR)
108 4-900-386-01 SCREW
109 A-1144-825-A PT BOARD, COMPLETE (US, CND)
109 A-1169-506-A PT BOARD, COMPLETE (E3, SP)
109 A-1169-507-A PT BOARD, COMPLETE (AUS)
109 A-1169-540-A PT BOARD, COMPLETE (AEP, UK, CET)
109 A-1181-750-A PT BOARD, COMPLETE (KR)
110 A-1146-444-A TRANSISTOR BOARD, COMPLETE
111 X-2102-477-1 HEAT SINK ASSY (US, CND, AEP, UK, CET)
111 X-2108-555-1 HEAT SINK ASSY (50W SP2) (E3, SP, KR, AUS)
112 A-1144-850-A AMP BOARD, COMPLETE (US, CND)
112 A-1171-961-A AMP BOARD, COMPLETE (AEP, UK, CET)
112 A-1175-788-A AMP BOARD, COMPLETE (E3, SP, KR, AUS)
113 2-671-683-01 HOLDER (FAN50) (E3, SP, KR, AUS)
0ACW001 1-769-079-51 CORD, POWER (KR)
0ACW001 1-775-790-81 CORD, POWER (AUS)
0ACW001 1-790-757-51 CORD, POWER (US, CND)
0ACW001 1-830-891-11 CORD, POWER (UK)
0ACW001 1-831-370-11 CORD, POWER (AEP, CET, SP)
0ACW001 1-832-377-11 CORD, POWER (E3)
M901 1-787-396-11 D.C. FAN (50 SQUARE) (E3, SP, KR, AUS)
0PT001 1-443-845-11 TRANSFORMER, POWER (US, CND)
0PT001 1-443-910-11 TRANSFORMER, POWER (AEP, UK, CET)
0PT001 1-443-911-11 TRANSFORMER, POWER (E3, SP, KR, AUS)
#3 7-685-661-14 SCREW +BVTP 4X12 TYPE2 IT-3
101
102
102
103
104
105
102
102
102
107
102
102
108
109
111
102
110
102
112
106
not
supplied
PT001
not
supplied
not
supplied
not
supplied
not
supplied
CD section and Base unit
(BU-K6BD83S-WOD) section
#3
#3
ACW001
M901
102
113
102
