Sony HCD-F200 Service Manual

58
HCD-F200/F500
1
2
4
3
8
5
6
7
not supplied
not
supplied
not supplied
not supplied
#1
#2
#2
#6
#7
#7
#8
#2
#3
not supplied
front panel section
not
supplied
not supplied
3
9
SECTION 7
EXPLODED VIEWS
1 4-225-252-01 CUSHION (FOOT)
2 3-291-160-01 PANEL (STAND-TOP)
3 4-302-555-01 BAND, BEADS WIRE
4 3-291-137-02 COVER (SYS)
5 3-291-136-02 COVER (REAR-HCD)
6 3-294-314-01 LABEL (CONNECTION) (F200)
6 3-294-315-01 LABEL (CONNECTION) (F500)
7 3-291-138-01 COVER (TERMINAL-HCD)
8 3-291-159-01 SHEET (HOLE)
9 4-900-386-01 SCREW
#1 7-682-561-09 SCREW +B 4X8
#2 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#6 7-685-232-19 SCREW +KTP 2.6X5 TYPE2 NON-SLIT
#7 7-682-247-09 SCREW +K 3X6
#8 7-685-872-09 SCREW +BVTT 3X8 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color
• Abbreviation
AUS : Australian model
CND : Canadian model
E3 : 240V AC area in E model
E15 : Iranian model
E32 : Latin American model
(110 – 240V AC area)
EA : Saudi Arabia model
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
TH : Thai model
TW : Taiwan model

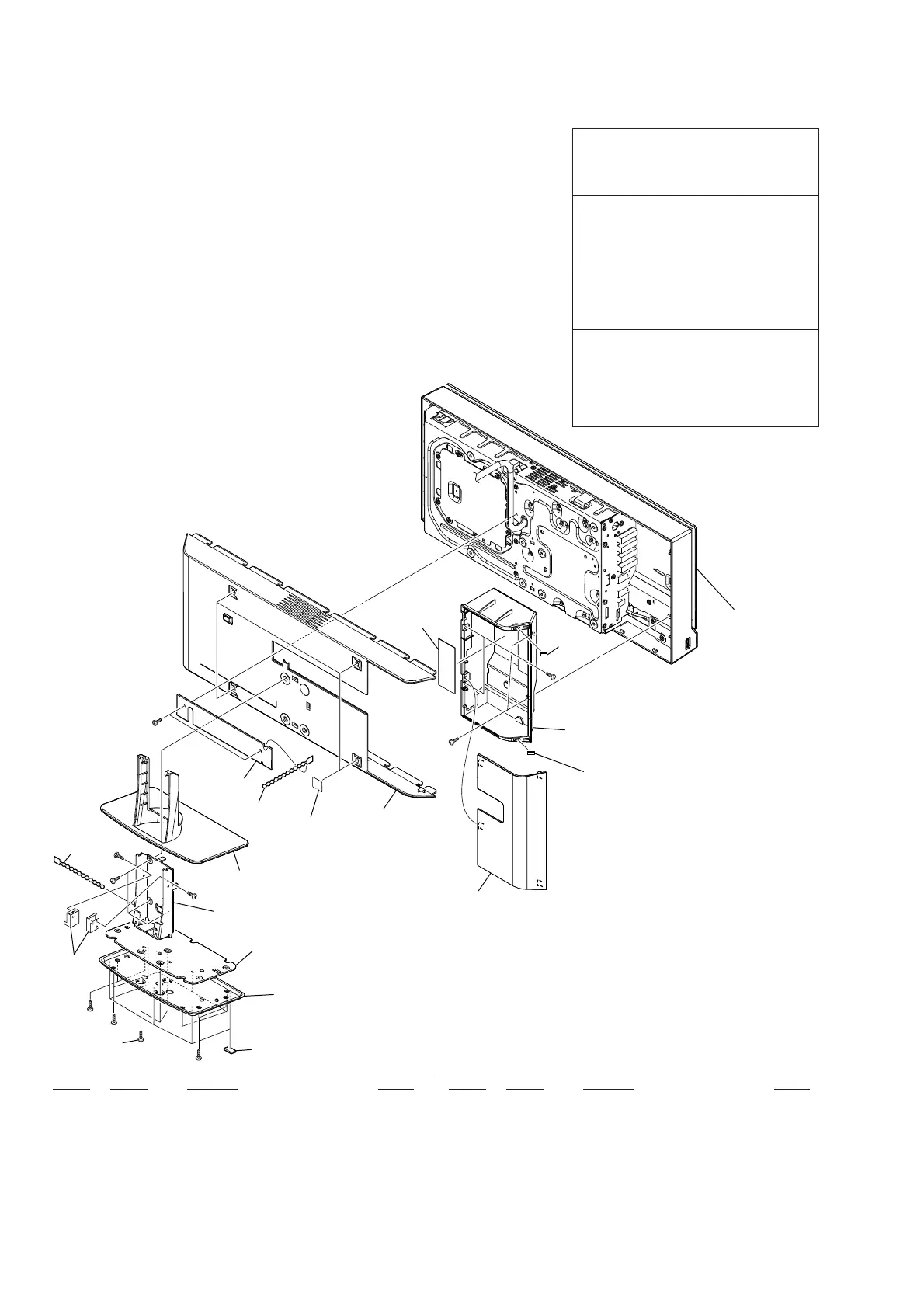

7-1. REAR COVER SECTION
Note: This illustration is seen from the back.
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
Ver. 1.1
