Sony HCD-FX205 - Top Panel Section Exploded View

33
HCD-FX200/FX205

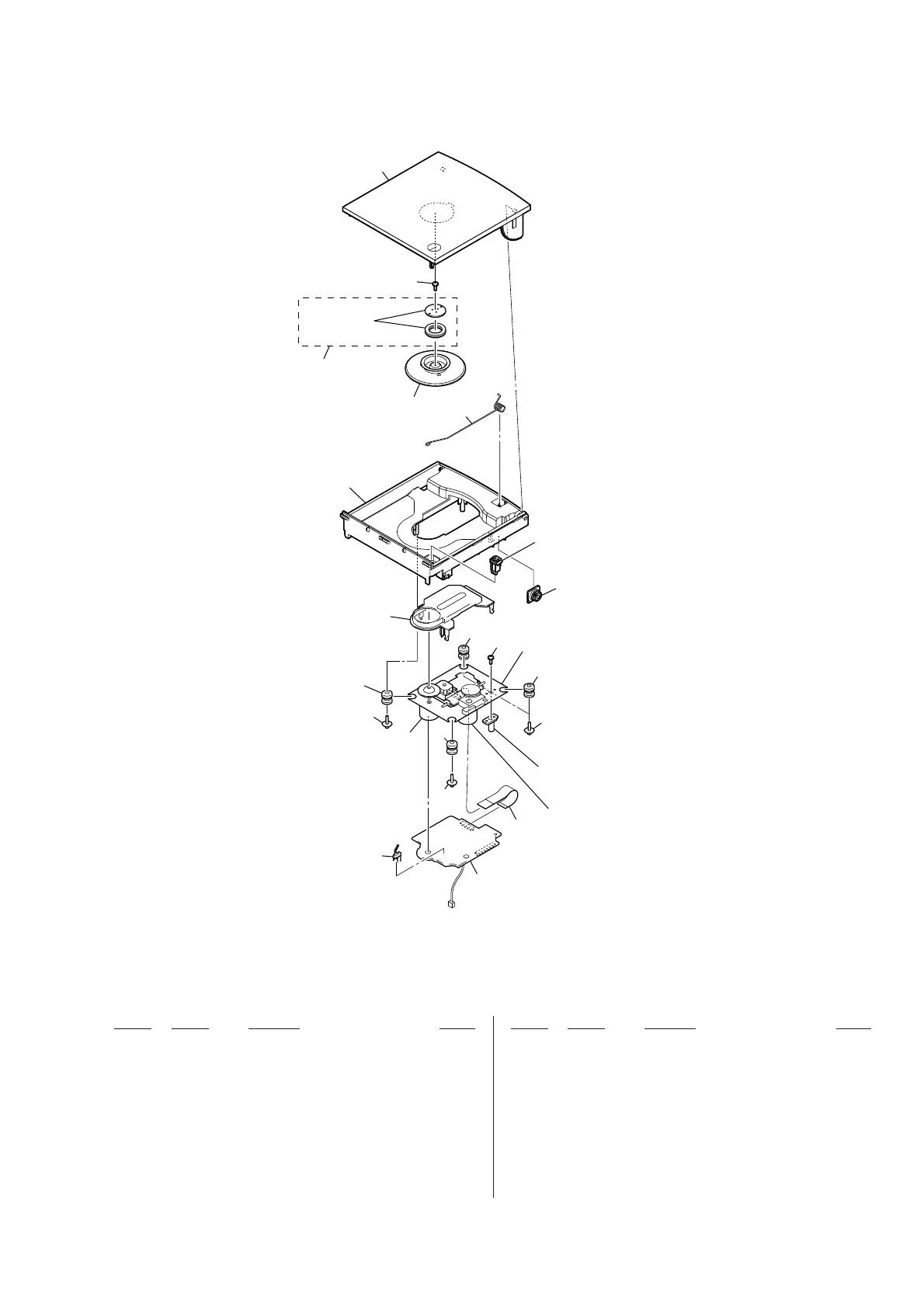

6-2. TOP PANEL SECTION
51 A-1748-698-A BD73U BOARD, COMPLETE
52 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)
53 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
54 3-931-379-31 RUBBER, VIBRATION PROOF (GREEN)
55 3-931-379-21 RUBBER, VIBRATION PROOF (RED)
0 56 A-1780-028-A OPTICAL PICK-UP BLOCK (DA11MMVGP)
(Including sled motor, spindle motor)
57 4-166-010-01 COVER (D1)
58 4-232-238-01 DAMPER
59 4-171-954-11 PANEL (TOP)
60 4-171-965-01 SPRING CD
61 4-161-552-01 PULLEY, CHUCKING (D1)
62 1-452-899-31 MAGNET
63 3-253-143-01 SCREW (B2.6), (+) P TAPPING
64 4-171-955-21 LID CD
65 3-080-204-31 SCREW, TAPPING, P2
S001 1-771-853-11 SWITCH, DETECTION (LIMIT)
SW880 1-692-960-11 SWITCH, PUSH (1 KEY)
(CD LID OPEN/CLOSE DETECT)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
56
(including sled motor, spindle motor)
51
52
53
54
53
53
S001
SW880
not supplied
(sled motor)
not supplied
not supplied
(spindle motor)
55
55
57
59
58
54
65
60
61
62
63
64
