Sony HCD-FX205 - Chassis Section Exploded View

35
HCD-FX200/FX205

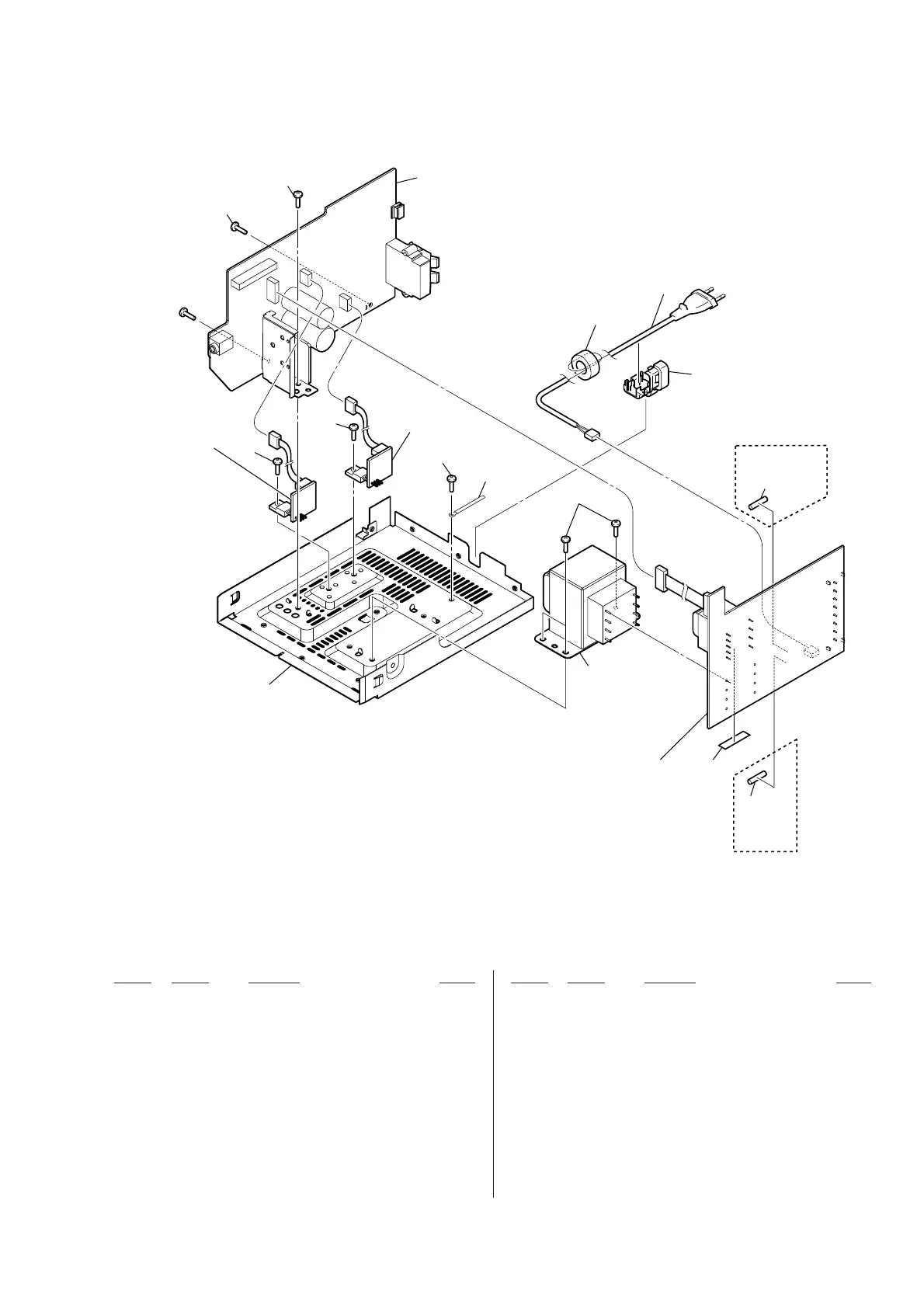

6-4. CHASSIS SECTION
not supplied
T001
151
152
153
154
not supplied
152
152
152
152
152
F001
F002
#3
155
156
(E2, EA,
E51, TW)
not supplied
(REG board)
not supplied
(PT board: except E2, EA, E51)
(PT-SW board: E2, EA, E51)
not supplied
(POWER-TR board)
(EXCEPT TW)
151 4-178-707-01 CUSHION (SUB TRANS)
152 3-077-331-21 +BV3 (3-CR)
153 A-1749-735-A MAIN BOARD, COMPLETE (AEP)
153 A-1749-736-A MAIN BOARD, COMPLETE (SP, TW, AR, TH, AUS)
153 A-1765-499-A MAIN BOARD, COMPLETE (E2, EA, E51)
153 A-1766-840-A MAIN BOARD, COMPLETE (RU, KR)
154 1-500-868-11 CORE, FERRITE
0 155 1-834-288-12 CORD, POWER (TH)
0 155 1-834-966-41 POWER-SUPPLY CORD (AEP, RU, E2, E51, SP)
0 155 1-835-068-21 CORD, POWER (AUS)
0 155 1-835-078-31 CORD, POWER (EA)
0 155 1-837-311-21 CORD, POWER-SUPPLY (KR)
0 155 1-837-312-11 CORD, POWER-SUPPLY (AR)
0 155 1-837-345-11 CORD, POWER-SUPPLY (TW)
156 3-703-244-00 BUSHING (2104), CORD (EXCEPT TH)
156 4-916-783-01 BUSHING, CORD (TH)
0 F001 1-532-467-33 FUSE (T315mAL/250V) (E2, E51, EA, TW)
0 F002 1-523-156-31 FUSE (T160mAL/250V) (EXCEPT TW)
0 T001 1-445-858-11 TRANSFORMER, POWER (AEP, RU)
0 T001 1-445-860-11 TRANSFORMER, POWER (SP, AUS)
0 T001 1-445-861-11 TRANSFORMER, POWER (AR, KR, TH)
0 T001 1-445-862-11 TRANSFORMER, POWER (TW)
0 T001 1-445-863-11 TRANSFORMER, POWER (E2, E51, EA)
#3 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1
