HCD-FX900W

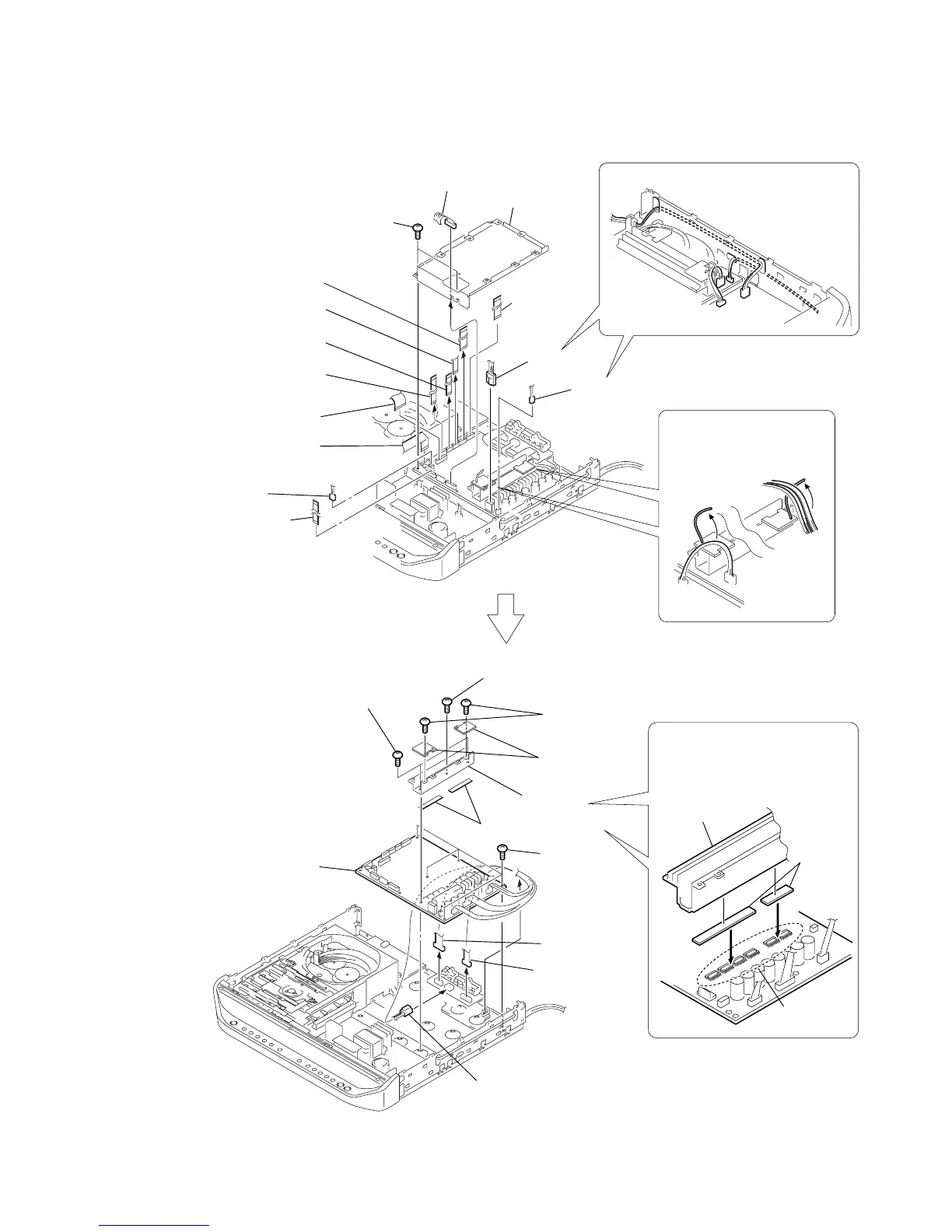

3-9. MAIN BOARD
Route the harnesses as shown below.
w; heatsink
(AMP)
wa two radiation sheets
qj two heatsink
boards
wj MAIN board
wd
ws
six screws
(+BV 3
× 8)
qh two screws
(+BV 3
× 8)
ql two screws (+BV 3 × 8)
qk screw (+BVTP 3 × 12)
3 HDMI bracket
1 connector
(CN506)
5 connector
(CN505)
wh connector
(CN1302)
wg connector
(CN1301)
wf connector
(CN1303)
qg connector
(CN3001)
qf connector
(CN3002)
4 wire (flat type)
11core (CN504)
6 wire (flat type)
23core (CN501)
7 wire (flat type)
27core (CN621)
0 wire (flat type)
11core (CN701)
9 wire (flat type)
7core (CN702)
8 wire (flat type)
19core (CN601)
qs wire (flat type)
13core (CN672)
qa wire (flat type)
11core (CN651)
2 two screws (+BV 3 × 8)
When re-assembling, attaching the
two heat radiation sheets on the
IC MAIN board first, and then attach
the heat sink (AMP).
heatsink (AMP)
heat
radiation
sheets
IC on the
MAIN board
qd Remove the harnesses
from the lead pins.
