Sony HCD-FX900W User Manual

22
HCD-FX900W

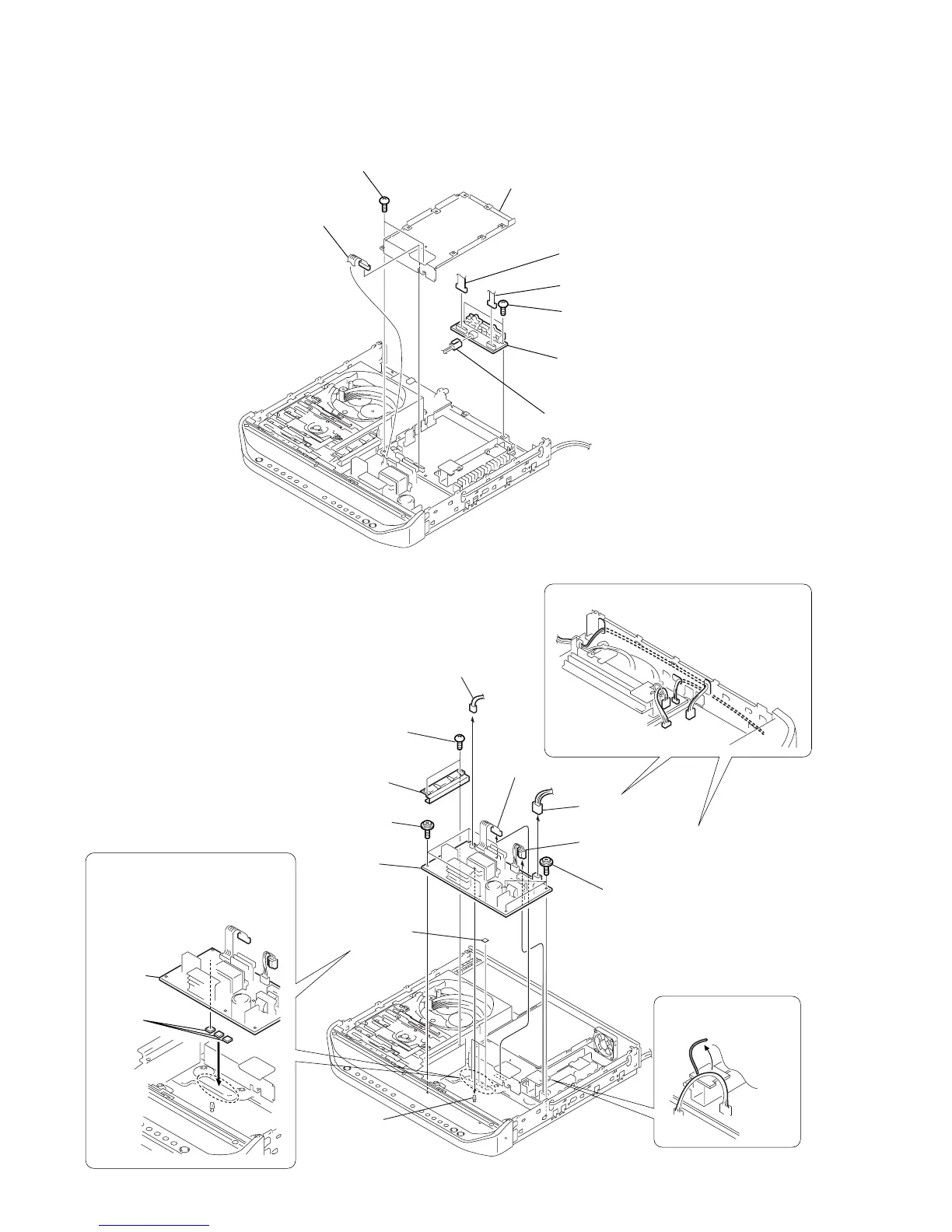

3-10. SP BOARD
3 HDMI bracket
1 connector
(CN506)
5 connector
(CN1302)
6 connector
(CN1301)
4 connector
(CN1303)
8 SP board
7 two screws (+BV 3 × 6)
2 two screws (+BV 3 × 8)
qs three radiation
sheets
q; pc board
holder
qa POWER
board
7 wire cover
3 connector (CN506)
1 connector (CN903)
5 connector (CN901)
4 connector (CN3002)
6 two screws
(+BV 3
× 6)
When re-assembling, attaching the
three heat radiation sheets on the
chassis first, and then attach
POWER board.
three heat radiation
sheets
POWER
board
9 three screws
(+PWH 3
× 8)
8 four screws
(+PWH 3
× 8)
2 Remove the harnesses
from the lead pins.
Route the harnesses as shown below.
3-11. POWER BOARD
