HCD-FX900W

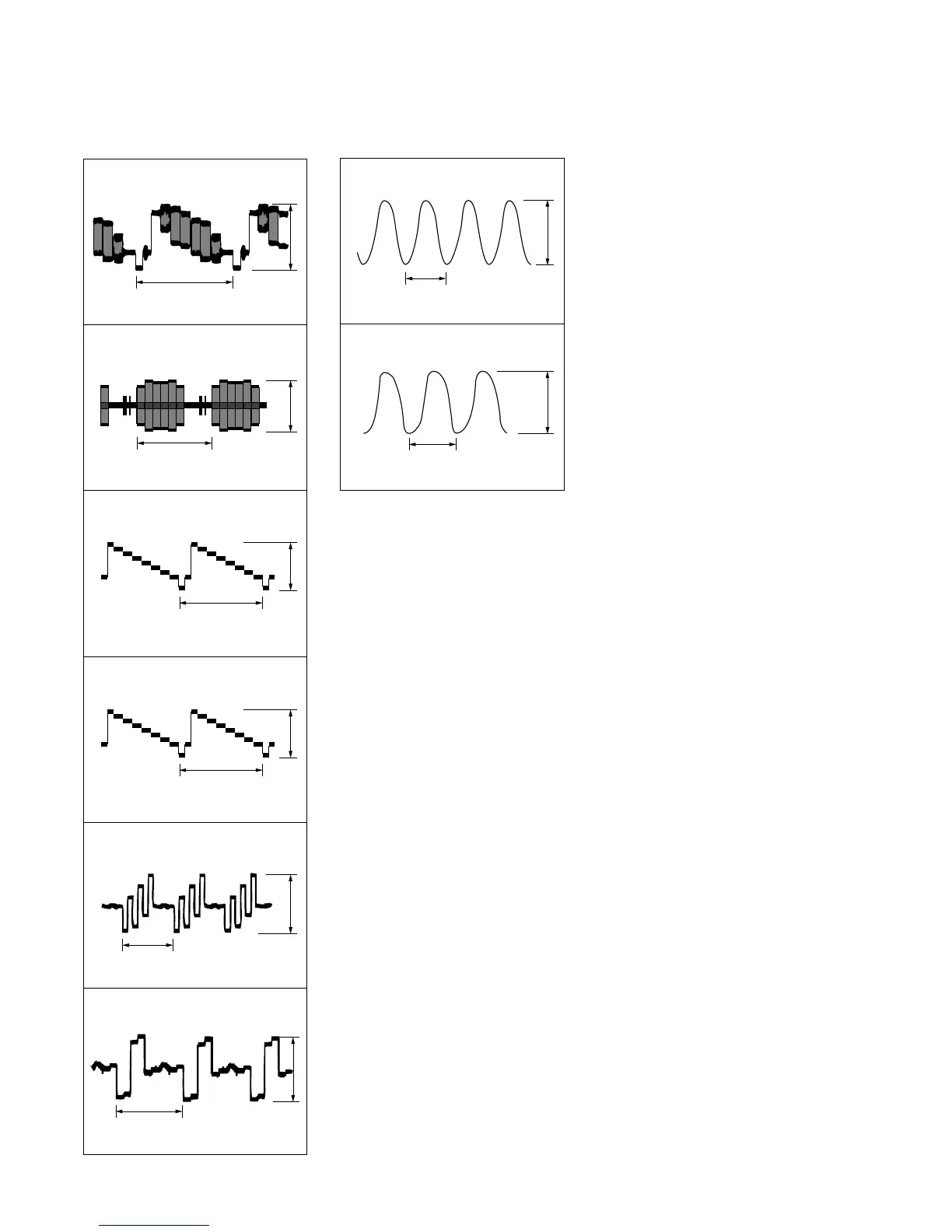

– I/O Board –
qf IC201 e; (VOUTa)
H
2.2 Vp-p
500 mV/DIV, 20
µ s/DIV
qg IC201 es (C OUT)
H
1.4 Vp-p
1 V/DIV, 20
µ s/DIV
qh IC201 wj (YOUTa)
H
2.1 Vp-p
H
2.1 Vp-p
1 V/DIV, 20
µ s/DIV
qj IC201 wf (CYOUTa)
1 V/DIV, 20 µ s/DIV
qk IC201 wa (CbOUTa)
H
1.3 Vp-p
500 mV/DIV, 20
µ s/DIV
ql IC201 qk (CrOUTa)
500 mV/DIV, 20 µ s/DIV
H
1.2 Vp-p
– DIAT TX XM Board –
w; IC102 wk (OSCIN)
22.1 ns
2.5 Vp-p
1 V/DIV, 40 ns/DIV
wa IC1804 tl (OSCO)
41 ns
3.1 Vp-p
1 V/DIV, 20 ns/DIV
