HCD-L
V60
7-8.

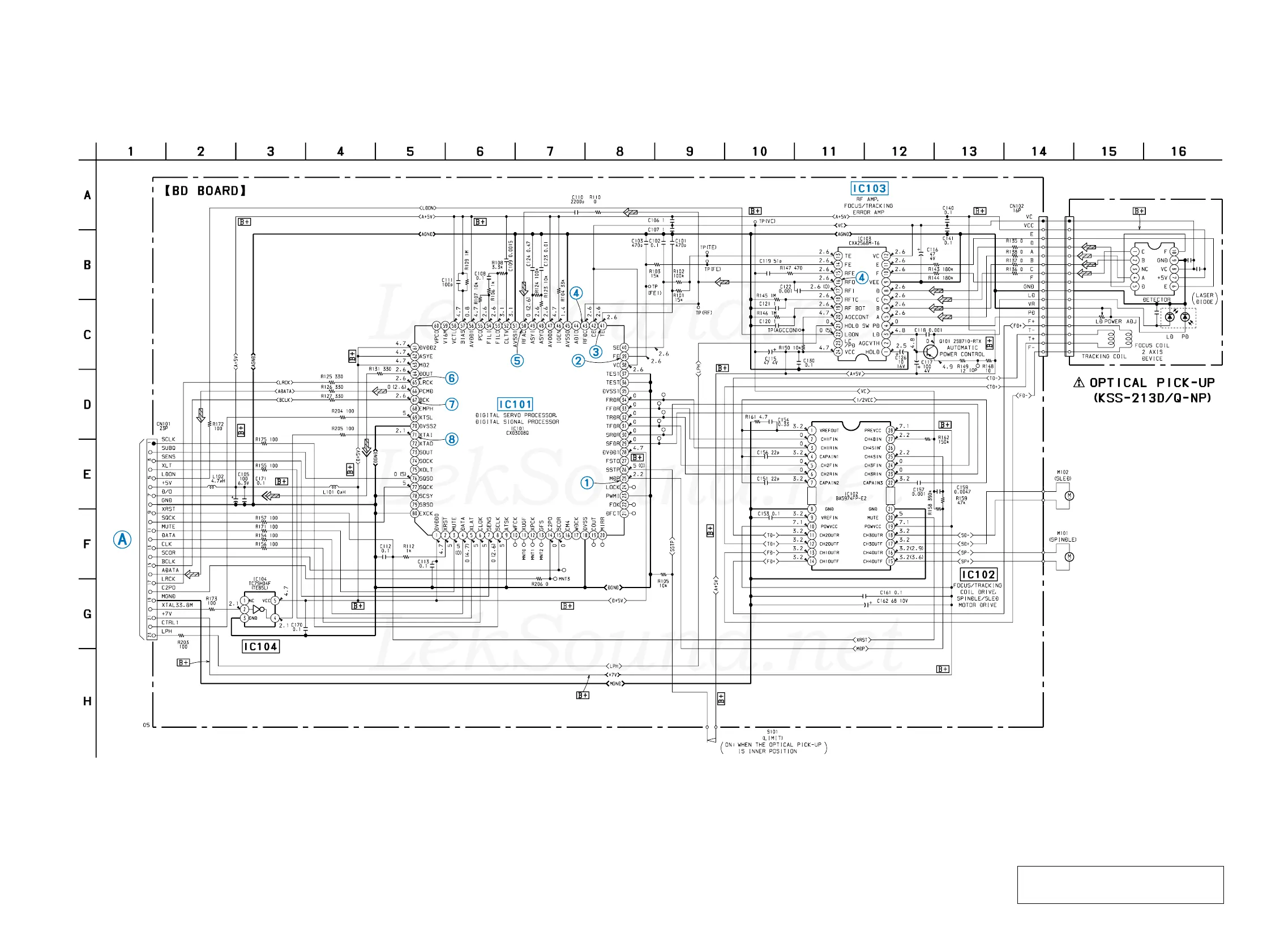

SCHEMA
TIC DIA
GRAM
–
BD Board
–•
See page 37 for
W
aveforms.
•
See page 50 for IC Bloc
k Diagrams.
•
V
oltages and wav
eforms are dc with respect to ground
under no-signal conditions.
no mark
: CD ST
OP
(
)
: CD PLA
Y
The components identified by mark
0
or dotted
line with mark
0
are critical for saf
ety
.
Replace only with par
t number specified.
OSC BUFFER
(Page 24)
LekSound.net
LekSound.net
LekSound.net
22
24
Table of Contents
Table of Contents
2
Servicing Notes
3
General
4
Location of Controls
4
Disassembly
6
Test Mode
10
Mechanical Adjustments
12
Electrical Adjustments
12
Deck Section
12
CD Section
15
Video Section
15
Leksound.net Leksound.net Leksound.net
15
Diagrams
16
Block Diagram - CD SERVO Section
16
Block Diagram - AUDIO/VIDEO CD Section
17
Block Diagram - TAPE DECK Section
18
Block Diagram - MAIN Section
19
BLOCK DIAGRAM - DISPLAY/KEY CONTROL POWER SUPPLY Section
20
Note for Printed Wiring Boards and Schematic Diagrams
21
Printed Wiring Board - BD Board
22
Schematic Diagram - BD Board
23
Schematic Diagram - VIDEO Board (1/2)
24
Schematic Diagram - VIDEO Board (2/2)
24
Printed Wiring Board - VIDEO Board
26
Printed Wiring Boards - CD MOTOR Section
28
Schematic Diagram - CD MOTOR Section
29
Printed Wiring Board - AUDIO Board
30
Schematic Diagram - AUDIO Board
31
Printed Wiring Board - LEAF SW Board
32
Schematic Diagram - LEAF SW Board
32
Schematic Diagram - MAIN Board (1/3)
33
Schematic Diagram - MAIN Board (2/3)
34
Schematic Diagram - MAIN Board (3/3)
35
Schematic Diagram - PANEL FL Board
37
Schematic Diagram - PANEL VR Board
38
PRINTED WIRING BOARDS - TC-A/TC-B/CD-L/CD-L2/CD-R/CD-R2 Boards
39
SCHEMATIC DIAGRAM - TC-A/TC-B/CD-L/CD-L2/CD-R/CD-R2 Boards
40
PRINTED WIRING BOARDS - FRONT INPUT/HEADPHONE/MIC Boards
41
SCHEMATIC DIAGRAM - FRONT INPUT/HEADPHONE/MIC Boards
42
Schematic Diagram - PA Board
43
Printed Wiring Board - TRANS Board
44
Schematic Diagram - TRANS Board
45
5
