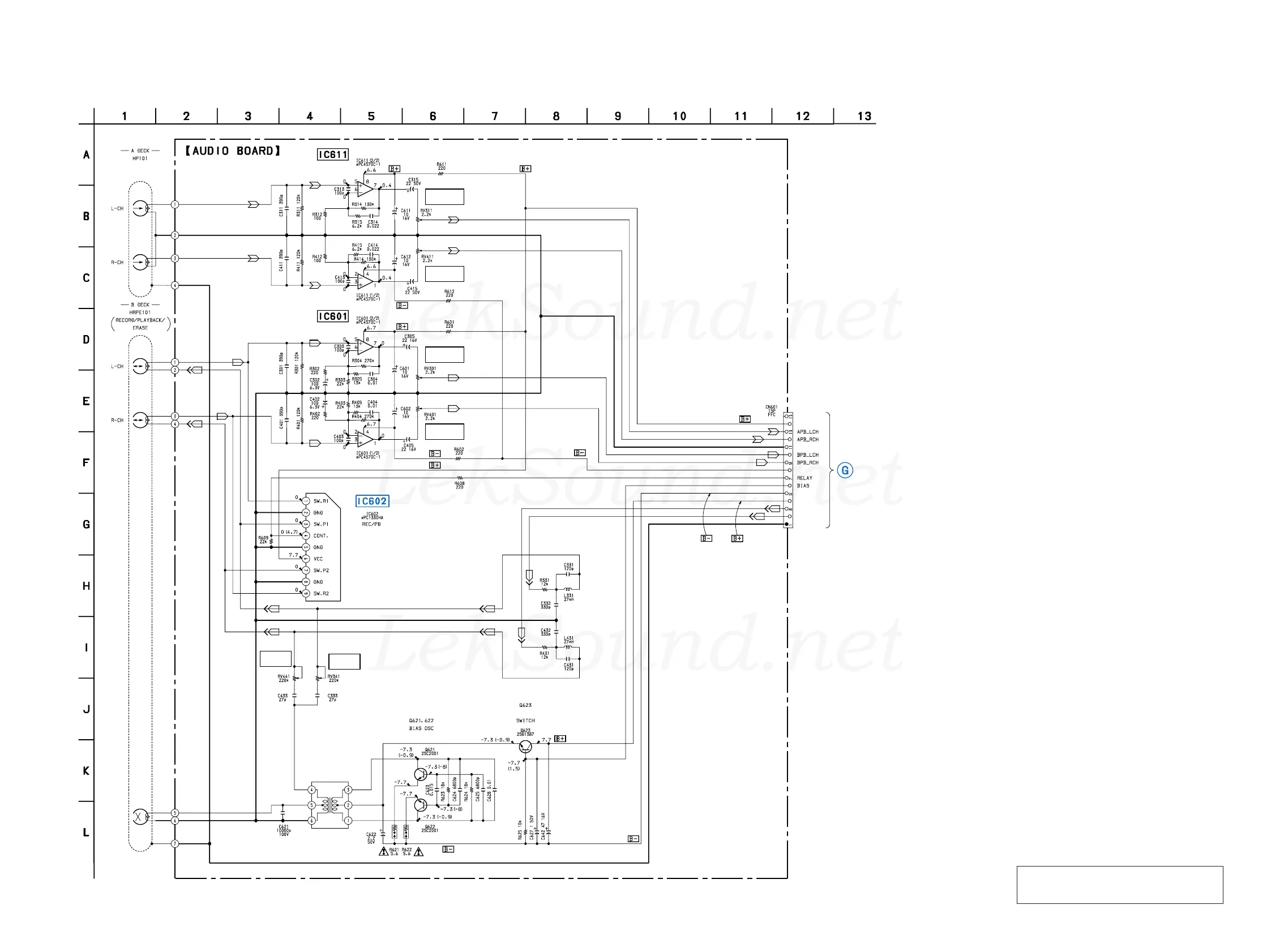

7-15. SCHEMATIC DIAGRAM – AUDIO Board – • See page 50 for IC Block Diagrams.
• Voltages are dc with respect to ground under no-signal
conditions.
no mark : TAPE PLAY
( ) : RECORD
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
05
(PALYBACK)
PB EQ AMP
(DECK A)
PB LEVEL (L)
(DECK A)
PB LEVEL (R)
(DECK A)
PB LEVEL (L)
(DECK B)
PB LEVEL (R)
(DECK A)
PB EQ AMP
(DECK B)
SWITCHING
REC BIAS (L)
(DECK A)
REC BIAS (R)
(DECK B)
T621
BIAS OSC
REC BIAS
NC
A+7.5V
A_GND
V–7.5V
–VBIAS (–7.5V)
+VBIAS (+7.5V)
B–REC_RCH
B–REC_LCH
TC-HEAD-GND
(Page 35)
