HCD-LX9AV/LX10AV/LX90AV
16
R
S

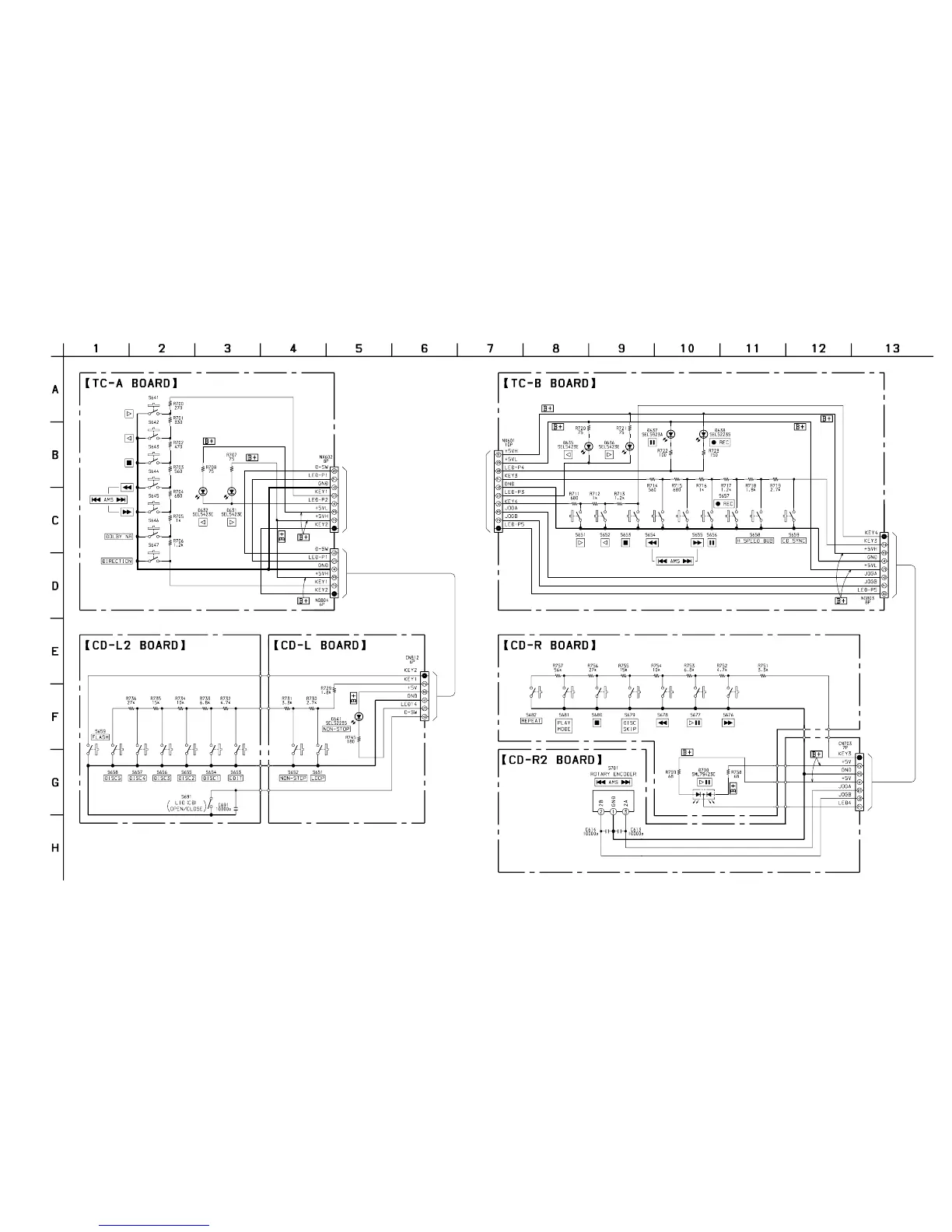

7-20. SCHEMATIC DIAGRAM – TC-A/TC-B/CD-L/CD-L2/CD-R/CD-R2 Boards –
• Voltages are dc with respect to ground under no-signal
(detuned) conditions.
no mark : FM
(Page 37)
(Page 37)
