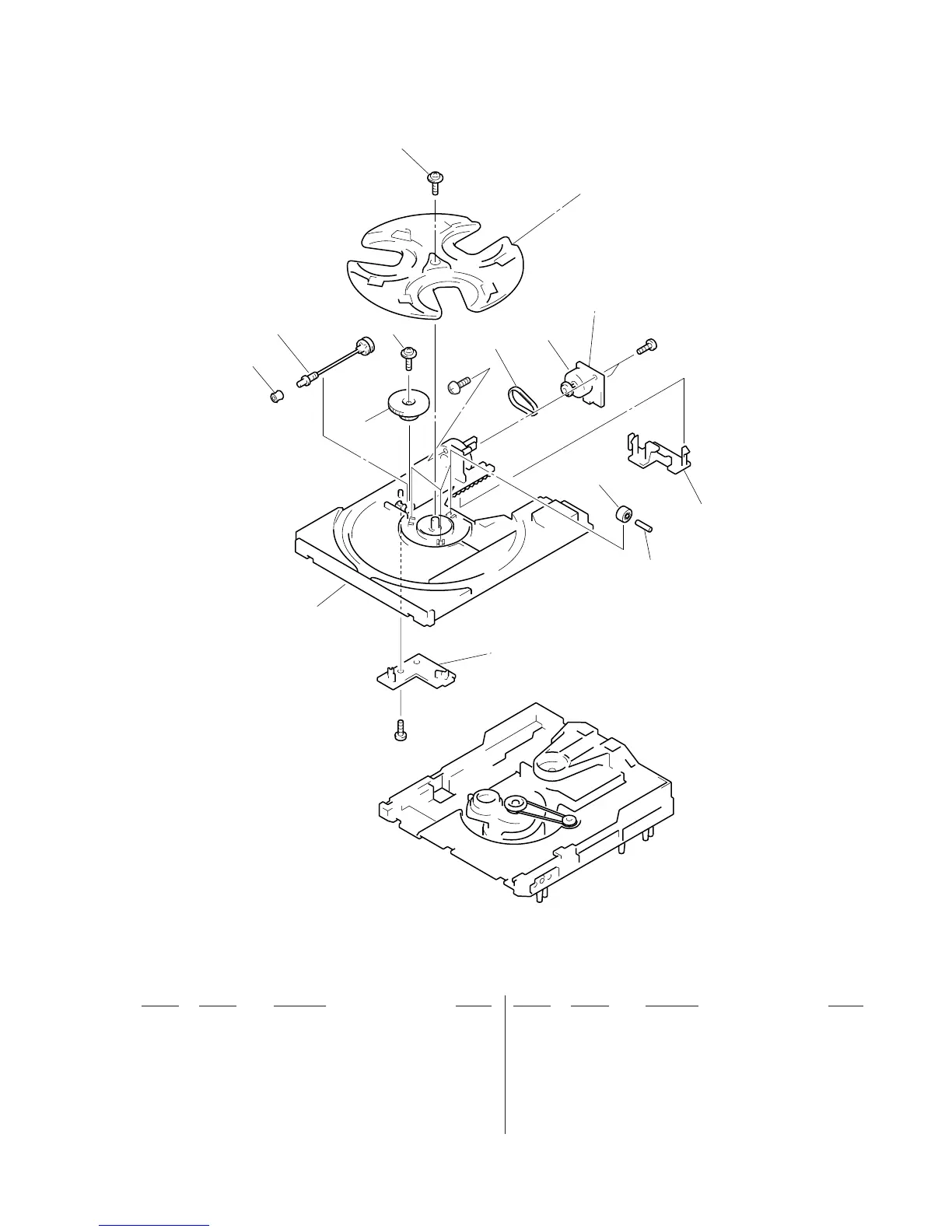

7-5. CD MECHANISM SECTION 1 (CDM38-5BD19)
206
M701
#1
204
#4
201
203
205
210
209
#1
211
207
208
212
201
202
Ref. No. Part No. Description Remark
201 4-917-583-21 BRACKET, YOKE
202 4-977-945-01 TRAY (TURN)
203 X-4946-665-1 SHAFT ASSY, WORM
204 4-977-943-01 BELT (TURN) (1.2)
205 4-977-956-01 WHEEL, WORM
* 206 1-658-577-11 MOTOR (TURN) BOARD
207 X-4924-457-1 ROLLER ASSY
Ref. No. Part No. Description Remark
208 4-977-941-01 BEARING (WORM)
* 209 1-658-576-11 SENSOR BOARD
210 4-934-376-01 SHAFT (ROLLER)
211 4-977-944-01 TRAY (SLIDE)
212 4-981-187-01 COLLAR (WORM)
M701 A-4672-004-A MOTOR ASSY (TURN)
