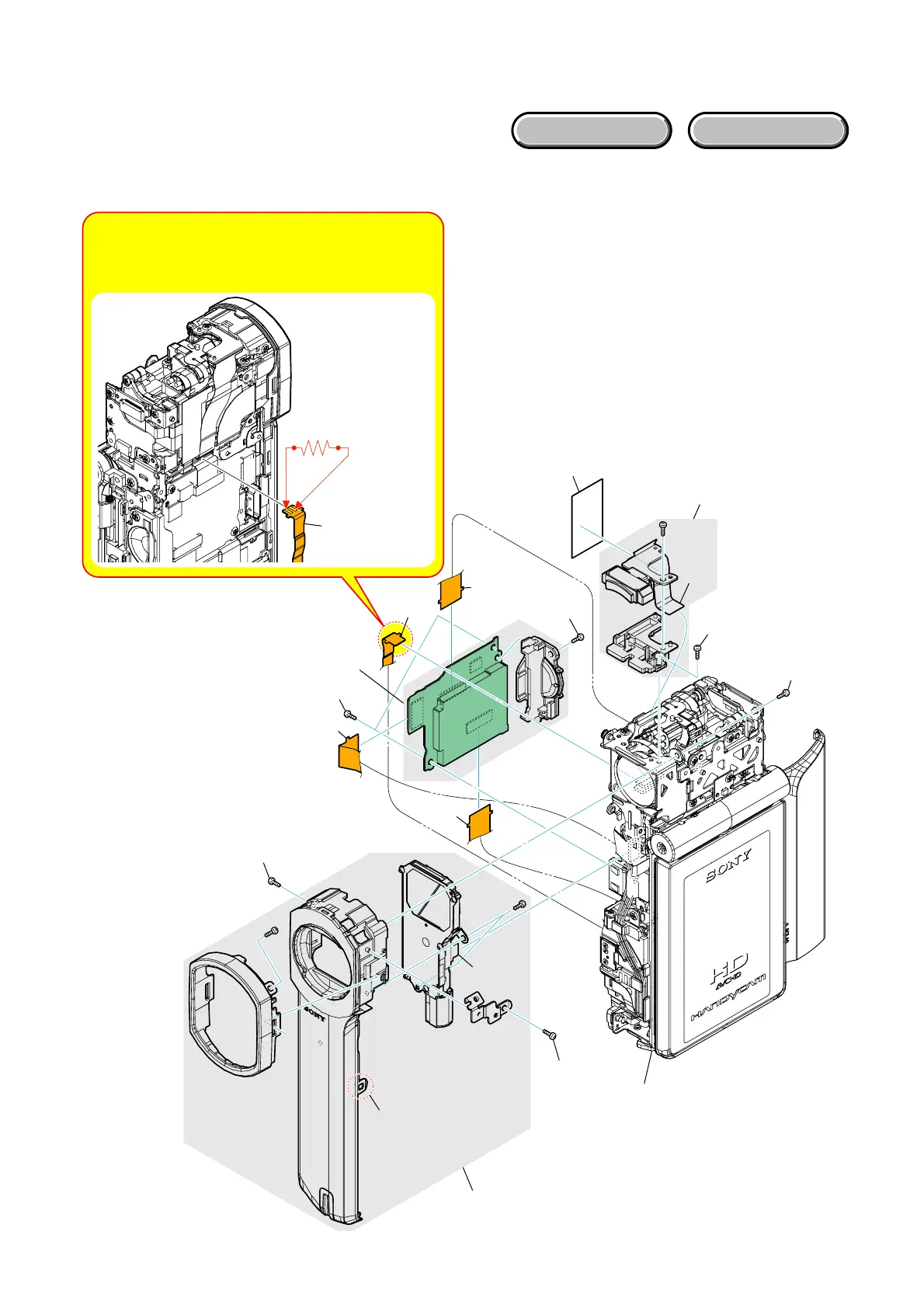

2-2-2. FRONT CABINET SECTION
Follow the disassembly in the numerical order given.
1 Front Cabinet (1-1 to 1-5)
2 Flash Unit (2-1 to 2-3)
3 MS-396 board (3-1 to 3-6)
HARDWARE LIST
M
S
-3
9
6
1-1 (#14)
1-4 (Claw)
1-5
1-2 (#14)
1-3 (#5)
1 Front Cabinet
2 Flash Unit
Main Frame Section-1
(See Page 2-5)
2-2 (#14)
2-1
2-3
3-1
3-6 (#3)
3-5
(#14)
3-2
3-3
3-4
3 MS-396 Board
Note: High-voltage cautions
Discharging the Capacitor
Short-circuit between two points
with the short jig about 10 seconds.
FP-914
Flexible Board
R:1 kΩ/1 W
(Part code: 1-215-869-11)
