5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-TG1/TG1E/TG3E_L2
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
101 A-1528-467-A FP-907 FLEXIBLE BOARD, COMPLETE
102 3-300-093-01 SHEET, MI RADIATION
103 3-300-086-01 FRAME, JK
104 3-873-225-01 SHEET (BR), GUARD
105 3-300-090-01 SHEET (A), VC
106 1-875-832-11 FP-911 FLEXIBLE BOARD

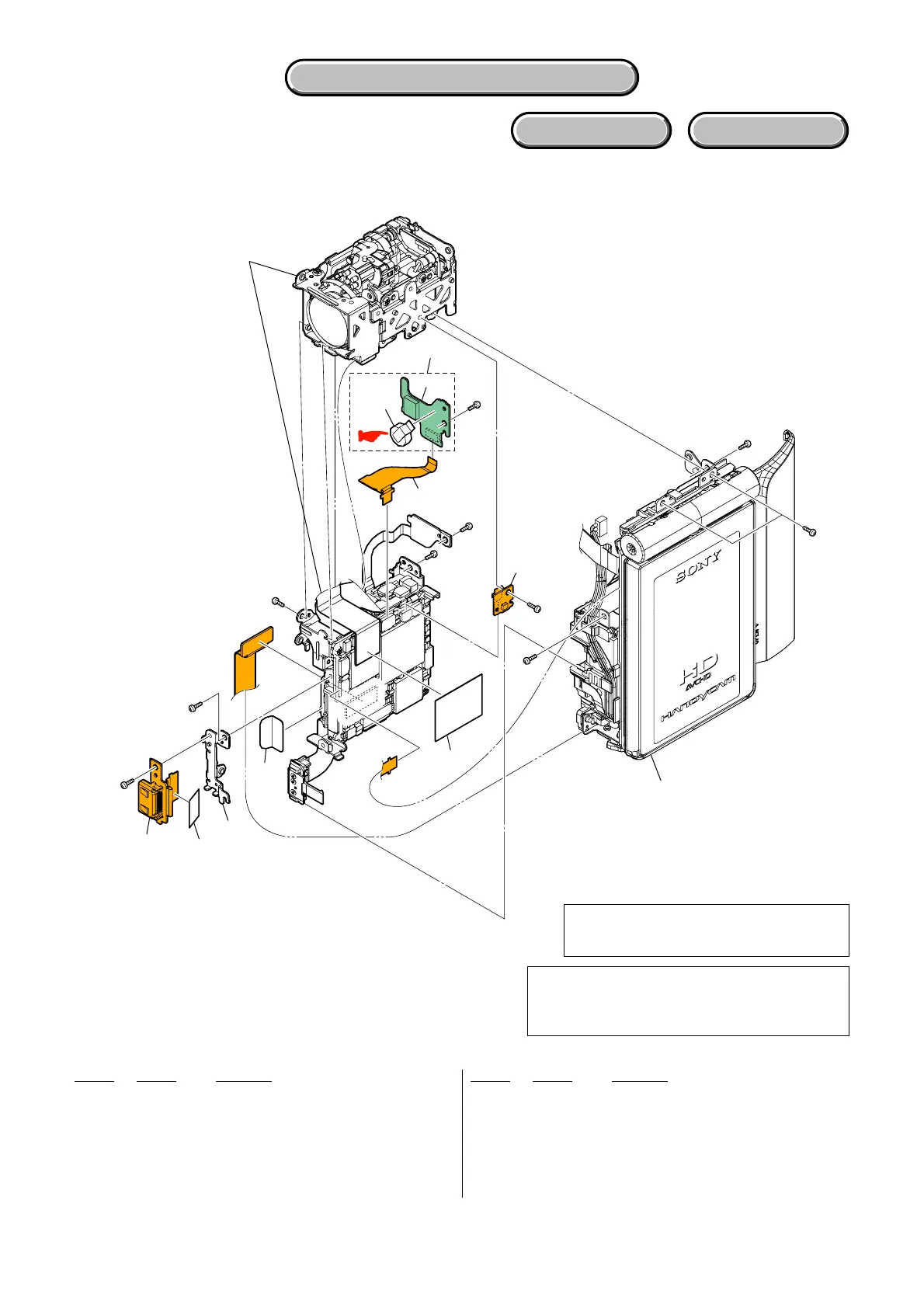

5-1-3. MAIN FRAME SECTION-1
ns: not supplied
107 A-1528-449-A SE-174 BOARD, COMPLETE
108 A-1528-465-A FP-905 FLEXIBLE BOARD, COMPLETE
0 BT6601 1-528-999-61 BATTERY, LITHIUM SECONDARY
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#14 2-599-475-11 SCREW (M1.7) (Silver)
#14
#14
#14
#1
4
#14
Main Frame Section-2
(See Page 5-5)
Cabinet (R) Section
(See Page 5-7)
#3
ns
BT6601
#3
#3
#3
#14
101
102
103
104
105
106
107
108
! : BT6601 (BATTERY, LITHIUM SECONDARY)
Board on the mount position.
(See page 4-42 on level 3)
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
注意
電池の交換は，正しく行わないと破裂する恐れがあり
ます。電池を交換する場合には必ず同じ型名の電池
又は同等品と交換してください。
• Refer to page 5-1 for mark 0.
DISASSEMBLY
