HDR-TG1/TG1E/TG3E_L2
HELP
HELP

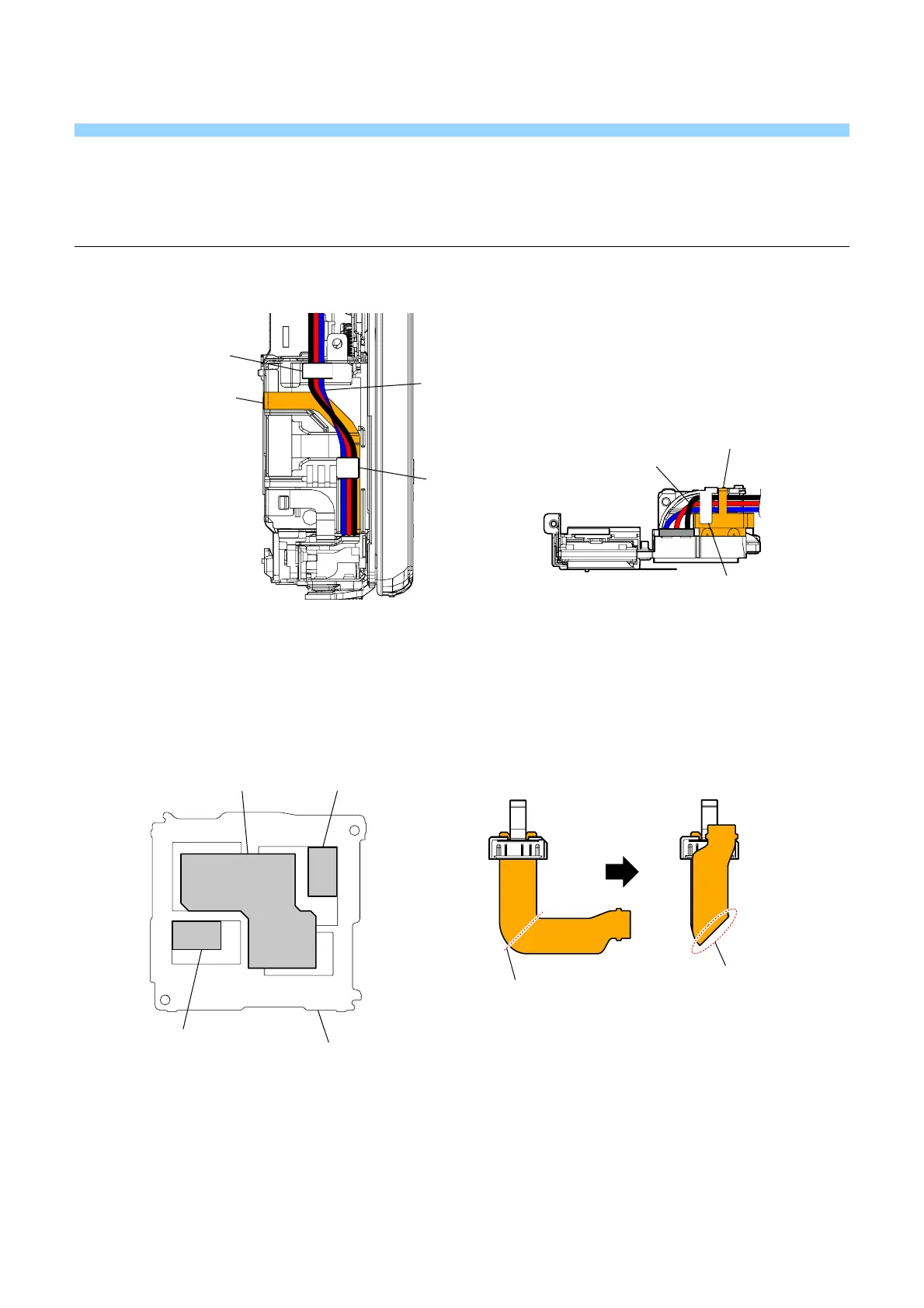

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
FP-914 Flexible Board
FP-908 Flexible Board
HELP 1:
DC Jack Harness
DC Jack Harness
DC Jack Harness
Hook
HELP 2:
Radiation Sheet (A)/AG Copy Sheet
HELP 3:
FP-917 Flexible Board
AG Copy Sheet
AG Copy Sheet
VC-522 Board
Radiation Sheet (A)
BT Frame Hook
Ter minal Retainer Hook
Valley fold
Apply the fold habit.
