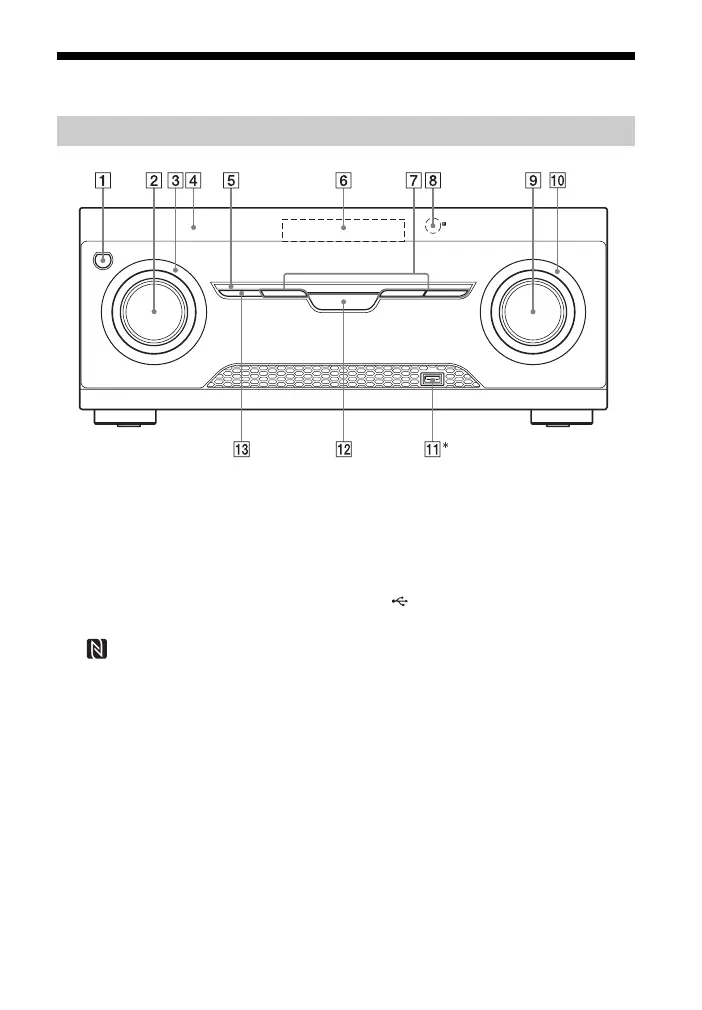

Description and location of parts
* Except for South Africa and Argentina models.
A ?/1 (on/standby) (page 24, 34, 49)
B INPUT SELECTOR (page 29, 31, 32,
35, 36, 53)
C INPUT SELECTOR indicator
Flashes when you change the input
source.
D (N-Mark) (page 37)
Position the NFC-compatible device
near this indication to activate the NFC
function.
E M-TURBO indicator
Lights up when M-TURBO is
activated.
F Display panel (page 8)
G MUSIC/MOVIE, GAME, FÚTBOL
(Latin America and Argentina
models only)/FOOTBALL (other
models) (page 33)
H Remote control sensor
Receives signals from remote control.
I MASTER VOLUME (page 25, 26, 29,
52, 54)
J MASTER VOLUME indicator
Flashes when you adjust the volume.
K (USB) port (page 23)
L M-TURBO (page 11)
M SPEAKER SETTINGS (page 12)
Front panel
