Basic Installation and
Connection
Refer to Startup Guide (separate
document).
Mounting the Speaker
System on a Wall
You can mount the bar speaker,
surround speakers, and wireless
amplifier on a wall.
• Prepare screws (not supplied) that are
suitable for the wall material and strength.
As a plasterboard wall is especially fragile,
attach the screws securely in the wall
beam. Install the speakers or wireless
amplifier horizontally, hung by screws in
studs in a continuous flat section of the
wall.
• Have the installation done by a Sony
d
ealer or licensed contractor and pay
special attention to safety during the
installation.
• Sony shall not be held responsible for
a
ccidents or damage caused by improper
installation, insufficient wall strength,
improper screw installation or natural
disaster, etc.
1 Prepare two screws (not supplied)
that are suitable for the wall
mount holes on the rear of the bar
speaker.
2 Stick WALL MOUNT TEMPLATE
(supplied) on a wall.

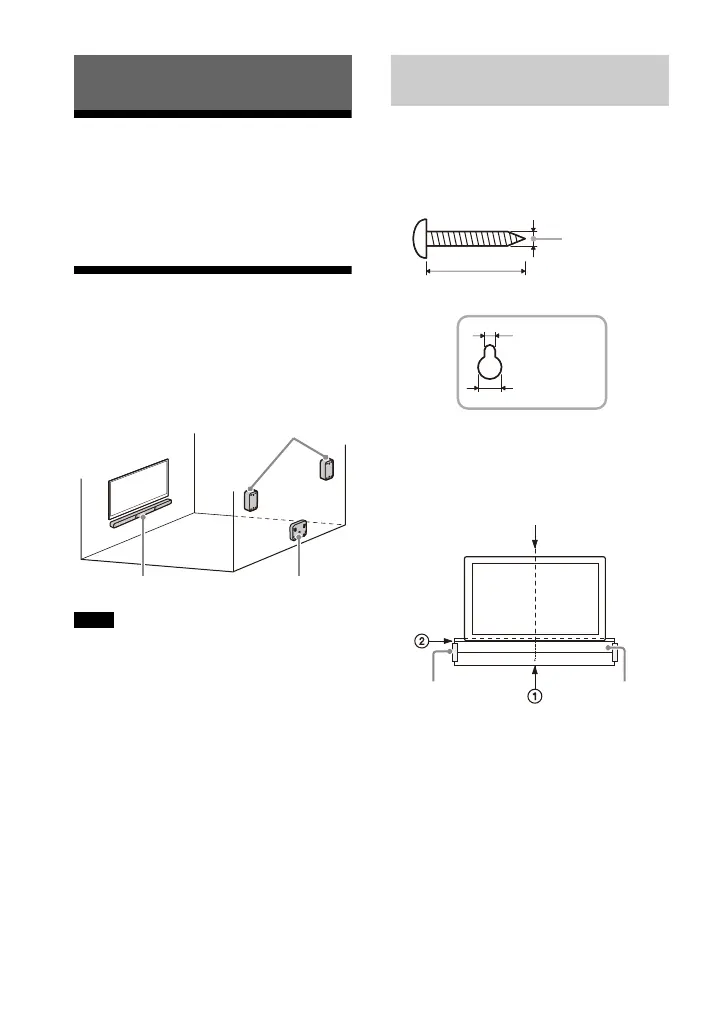

1 Align TV CENTER LINE () of
WALL MOUNT TEMPLATE with the
center line of your TV.
2 Align TV BOTTOM LINE () of
WALL MOUNT TEMPLATE with the
bottom of your TV, then stick
WALL MOUNT TEMPLATE on a
wall by using a commercially
available adhesive tape, etc.
Installation and Connection
Notes
Surround speakers
Bar speaker
Wireless amplifier
Mounting the Bar Speaker on
a Wall
Hole on the rear of the bar speaker
4 mm (3/16 in)
More than 30 mm (1 3/16 in)
5 mm
(7/32 in)
10 mm
(13/32 in)
Center of the TV
WALL MOUNT
TEMPLATE
Adhesive tape,
etc.

Sony HT-S40R Specifications

General

Wi-Fi	-
USB port	Yes
Bluetooth version	5.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wireless
Package depth	520 mm
Package width	968 mm
Package height	248 mm
Package weight	15000 g
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Soundbar power consumption	20 W
Power consumption (standby)	0.5 W
Subwoofer power consumption	55 W
Cables included	AC, Optical
Product color	Black
Audio formats supported	LPCM, MP3, WAV, WMA
Audio decoders	Dolby Digital, Dolby Dual Mono
RMS rated power	600 W
Audio output channels	5.1 channels
Rear speaker RMS power	75 W
Surround modes quantity	4
Front speakers RMS power	90 W
Subwoofer connectivity	Wired
Harmonized System (HS) code	85182200

Weight and Dimensions

Width	900 mm
Height	52 mm
Cord length	1.5 m
Soundbar weight	2000 g
Subwoofer depth	366 mm
Subwoofer width	192 mm
Subwoofer height	387 mm
Subwoofer weight	7800 g
Rear speaker depth	180 mm
Rear speaker height	74.5 mm
Rear speaker weight	600 g
