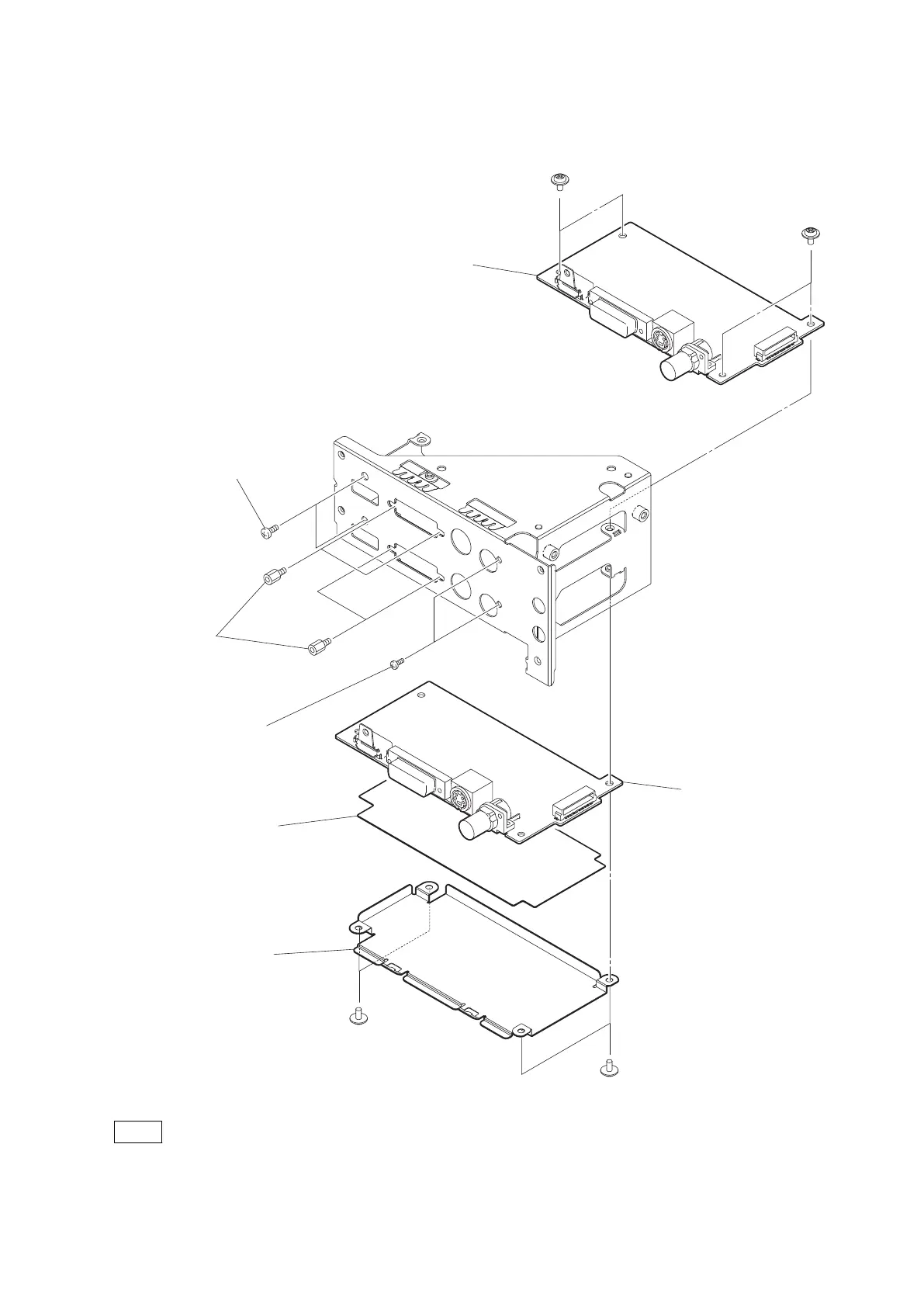

6. Remove the four screws (PWH3 x 5) from the DIF-223 board to detach the DIF-223 board, the film and the shield
case.
DIF-222 board
DIF-223 board
Film
Hexagon support
screws
(Tightening torque:
0.3
± 0.03 N•m)
Shield case
PWH3 x 5
(Tightening torque: 0.8
± 0.12 N•m)
PWH3 x 5
(Tightening torque: 0.8
± 0.21 N•m)
PWH3 x 5
(Tightening torque: 0.8 ± 0.21 N•m)
PWH3 x 5
(Tightening torque: 0.8
± 0.12 N•m)
B3 x 6
(Tightening torque: 0.8 ± 0.21 N•m)
B2.6 x 6
(Tightening torque: 0.4
± 0.04 N•m)
7. Install the removed parts by reversing the steps of removal.
Note
For actions to be taken after the HPR-50 board is replaced, refer to “3-9. Procedures After Replacement”.
HVO-500MD/HVO-550MD
6-5

Sony HVO-550MD Specifications

General

Display	LCD
Product color	White
USB connectivity	Yes
Playback resolutions supported	1280 x 720
BNC input ports	1
USB 2.0 ports quantity	4
HDD capacity	500 GB
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Optical drive type	DVD-R

Weight and Dimensions

Weight	3200 g
Dimensions (WxDxH)	212 x 290 x 10.5 mm
