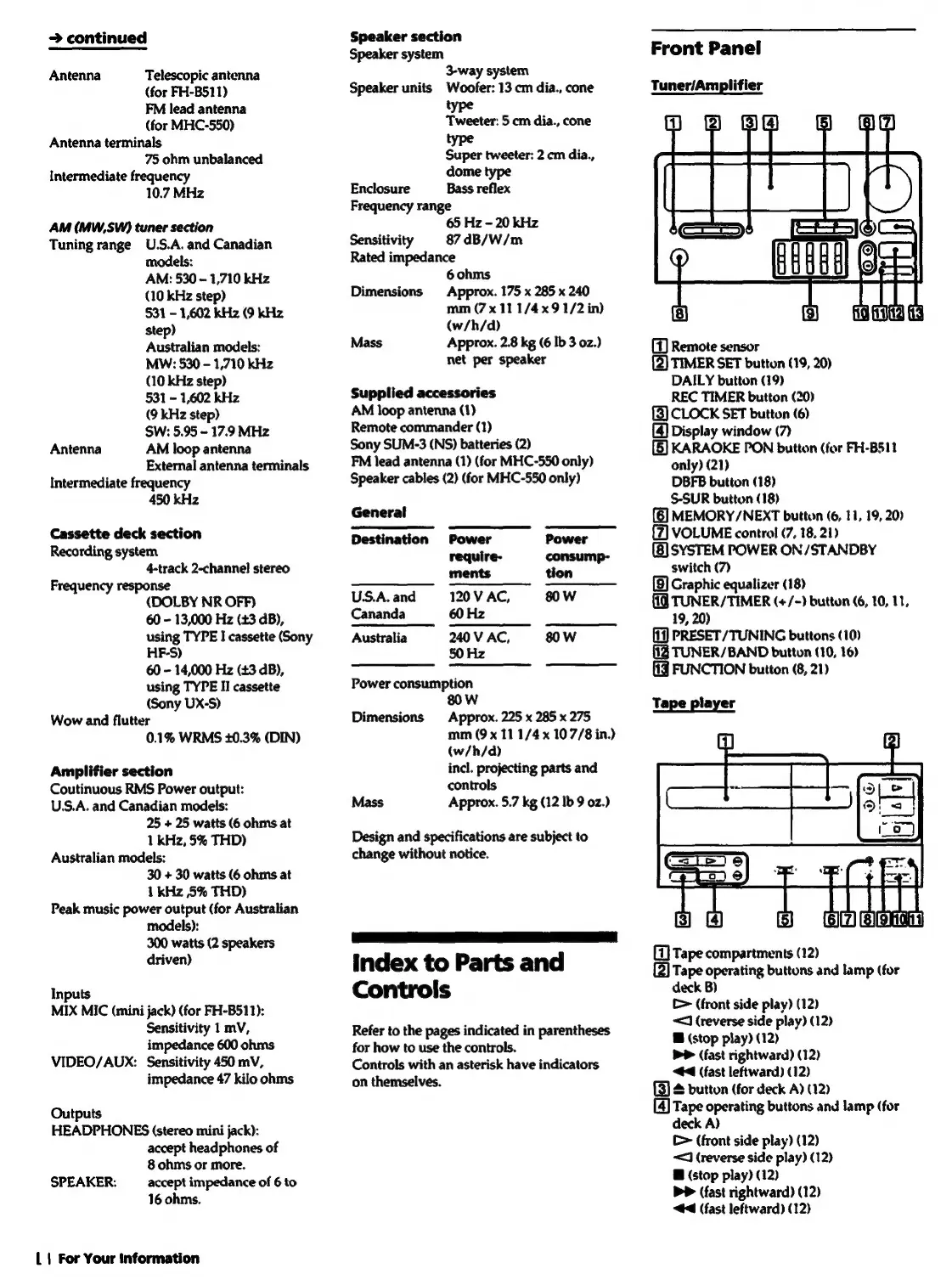

> continued
Antenna Telescopic antenna
(for FH-B511)
FM lead antenna
(for MHC-550)
Antenna terminals
75 ohm unbalanced
Intermediate frequency
10.7 MHz
AM (MW,SW) tuner section
Tuning range U.S.A. and Canadian
models:
AM: 530 - 1,710 kHz
(10 kHz step)
§31 - 1,602 kHz (9 kHz
step)
Australian models:
MW: 530 - 1,710 kHz
(10 kHz step)
531 - 1,602 kHz
(9 kHz step)
SW: 5.95 - 17.9 MHz
AM loop antenna
External antenna terminals
Intermediate frequency
450 kHz
Antenna
Cassette deck section
Recording system
4-track 2-channel stereo
Frequency response
(DOLBY NR OFF)
60 - 13,000 Hz (+3 dB),
using TYPE I cassette (Sony
HF-S)
60 - 14,000 Hz (+3 dB),
using TYPE II cassette
(Sony UX-S)
Wow and flutter
0.1% WRMS +£0.3% (DIN)
Amplifier section
Coutinuous RMS Power output:
U.S.A. and Canadian models:
25 + 25 watts (6 ohms at
1 kHz, 5% THD)
Australian models:
30 + 30 watts (6 ohms at
1 kHz 5% THD)
Peak music power output (for Australian
models):
300 watts (2 speakers
driven)
Inputs
MIX MIC (mini jack) (for FH-B511):
Sensitivity 1 mV,
impedance 600 ohms
VIDEO/AUX: Sensitivity 450 mV,
impedance 47 kilo ohms
Outputs
HEADPHONES (stereo mini jack):
accept headphones of
8 ohms or more.
accept impedance of 6 to
16 ohms.
SPEAKER:
L | For Your Information
Speaker section
Speaker system
3-way system
Speaker units Woofer: 13 cm dia., cone
Tweeter: 5 cm dia., cone
type
Super tweeter: 2 cm dia.,
dome type
Enclosure Bass reflex
Frequency range
65 Hz - 20 kHz
Sensitivity 87 dB/W/m
Rated impedance
6 ohms
Dimensions Approx. 175 x 285 x 240
mm (7x 111/4x91/2in)
(w/h/d)
Mass Approx. 2.8 kg (6 lb 3 oz.)
net per speaker
Supplied accessories
AM loop antenna (1)
Remote commander (1)
Sony SUM-3 (NS) batteries (2)
FM lead antenna (1) (for MHC-550 only)
Speaker cables (2) (for MHC-550 only)
General
Destination Power Power
require- consump-
ments tion
US.A. and 120 V AC, 80 W
Cananda 60 Hz
Australia 240 V AC, 80 W
50 Hz
Power consumption
80 W
Dimensions Approx. 225 x 285 x 275
mm (9 x 111/4x 10 7/8 in.)
(w/h/d)
incl. projecting parts and
controls
Mass Approx. 5.7 kg (12 lb 9 oz.)
Design and specifications are subject to
change without notice.
| coe aw Semen srs Fens
index to Parts and
Controls
Refer to the pages indicated in parentheses
for how to use the controls.
Controls with an asterisk have indicators
on themselves.
Front Panel
Tuner/Amplifier
(1) Remote sensor
(2) TIMER SET button (19, 20)
DAILY button (19)
REC TIMER button (20)
[3] CLOCK SET button (6)
[4] Display window (7)
(5) KARAOKE PON button (for FH-BS11
only) (21)
DBFB button (18)
S-SUR button (18)
MEMORY /NEXT button (6, #1, 19, 20)
VOLUME control (7, 18, 21)
SYSTEM POWER ON/STANDBY
switch (7)
Graphic equalizer (18)
{19 TUNER/TIMER (+ /-) button ©, 10, 11,
19, 20)
PRESET/TUNING buttons (10)
TUNER/BAND buttun (10, 16)
FUNCTION button (8, 21)
Tape player
(i) Tape compartments (12)
Tape operating buttons and lamp (for
deck B)
> (front side play) (12)
<J (reverse side play) (12)
@ (stop play) (12)
PP (fast rightward) (12)
44 (fast leftward) (12)
(3) & button (for deck A) (12)
[4] Tape operating buttons and lamp (for
deck A)
> (front side play) (12)
<J (reverse side play) (12)
@ (stop play) (12)
PP (fast rightward) (12)
44 (fast leftward) (12)
