12

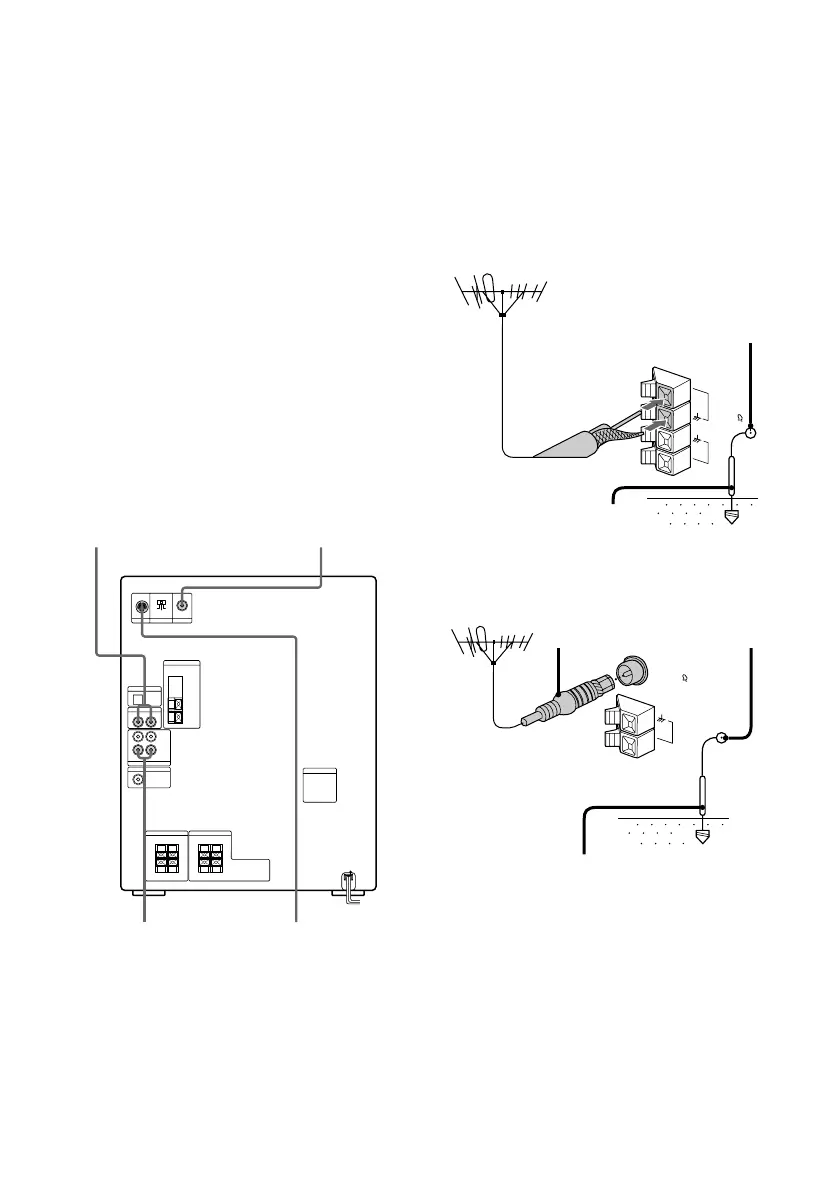

Connecting outdoor
antennas
Connect the outdoor antenna to improve the
reception.
FM antenna
Connect the optional FM outdoor antenna.
You can also use the TV antenna instead.
Jack type A
Jack type B
y
FM75
COAXIAL
AM
IEC standard socket
connector
(not supplied)
Screw clamp
Ground wire (not supplied)
FM75
AM
y
75-ohm coaxial cable
(not supplied)
Screw clamp
Ground wire (not supplied)
Connecting a VCR
Make sure to match the color of the plugs and
the connectors. To listen to the sound of the
connected VCR, press FUNCTION repeatedly
until “VIDEO” appears.
By connecting the audio output jacks of your
VCR to the VIDEO (AUDIO) IN jacks using
an optional audio cable, you can enjoy video
playback in powerful stereo sound.
Moreover, if you connect the video input on
the VCR to the MD OUT jacks and VIDEO
OUT (or S VIDEO OUT) jack using the
supplied video connecting cable (or an
optional S VIDEO connecting cable), you can
record the audio and video signals from a
VIDEO CD onto video tape.
Connecting optional AV
components (continued)
To the audio
outputs of the VCR
using an optional
audio cable
To the video input
of the VCR using
the video cable
To the S VIDEO input
of the VCR using an
optional S VIDEO
cable
To the audio inputs of
the VCR using an
optional audio cable
To Next Page
