VIDEO OUT
Jack type B
3 Connect the video input jack of your
TV to the VIDEO OUT jack with the
supplied video connecting cable.
When using a TV
Turn on the TV and select the video input so you
can view the pictures from this system.
Tip
For even higher quality video images, you can use
an optional S VIDEO cord to connect the S VIDEO
input jack on your TV to the S VIDEO OUT jack
FM75
COAXIAL
AM
Extend the FM lead
antenna horizontally.
Keep the speaker cords away from the
antennas to prevent noise.
Notes
• Do not place the surround speakers
on top of a TV. This may cause
distortion of the colors in the TV
screen.
• Be sure to connect both left and
right surround speakers. Otherwise,
the sound will not be heard.

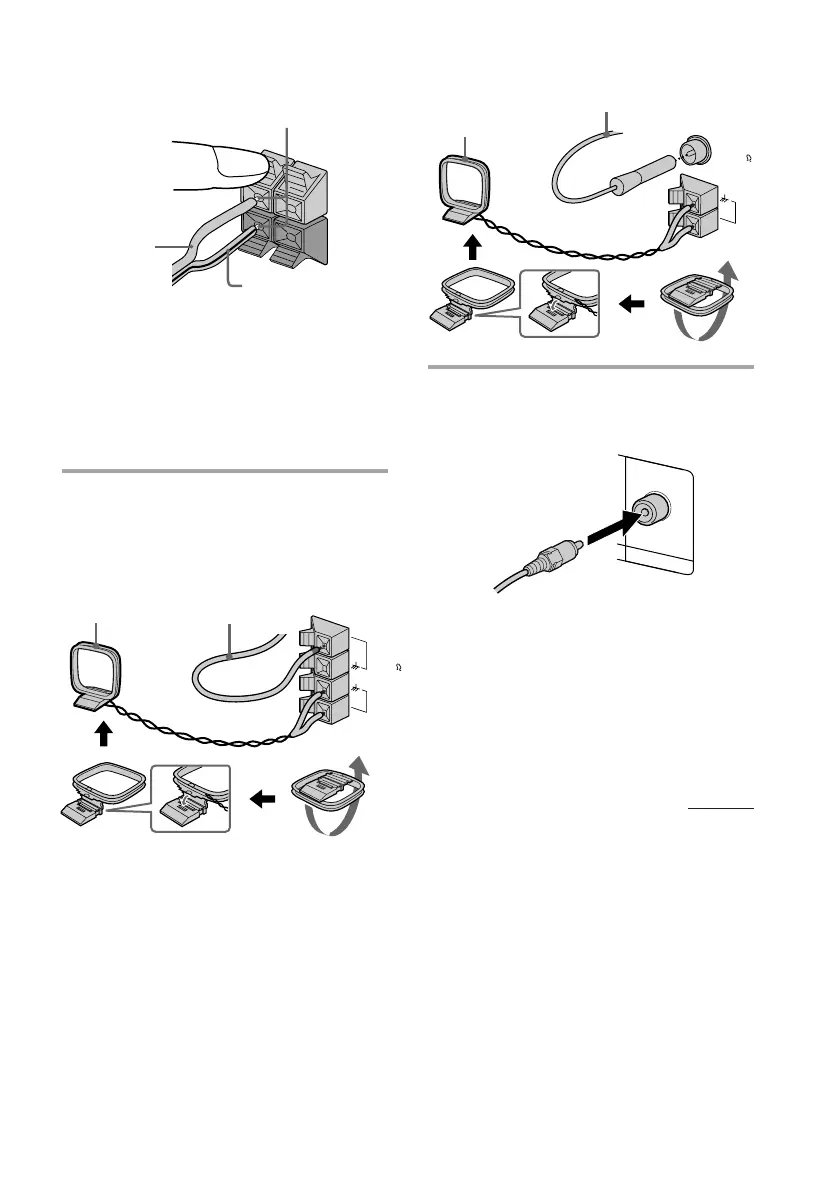

2 Connect the FM/AM antennas.
Set up the AM loop antenna, then
connect it.
Jack type A
continued
AM loop antenna
Extend the FM lead
antenna horizontally.
AM loop antenna
Insert only the stripped portion.
Stripe (’)
Solid (‘)
+
–
R
L
+
FM75
AM
