Sony MZ-R700 Service Manual

49
MZ-G750/R700
M603
M601
M602
101
102
105
106
107
108
109
115
121
120
119
118
117
103
104
110
122
111
109
112
103
109
114
113
115
109
116
103
A
A
B
B

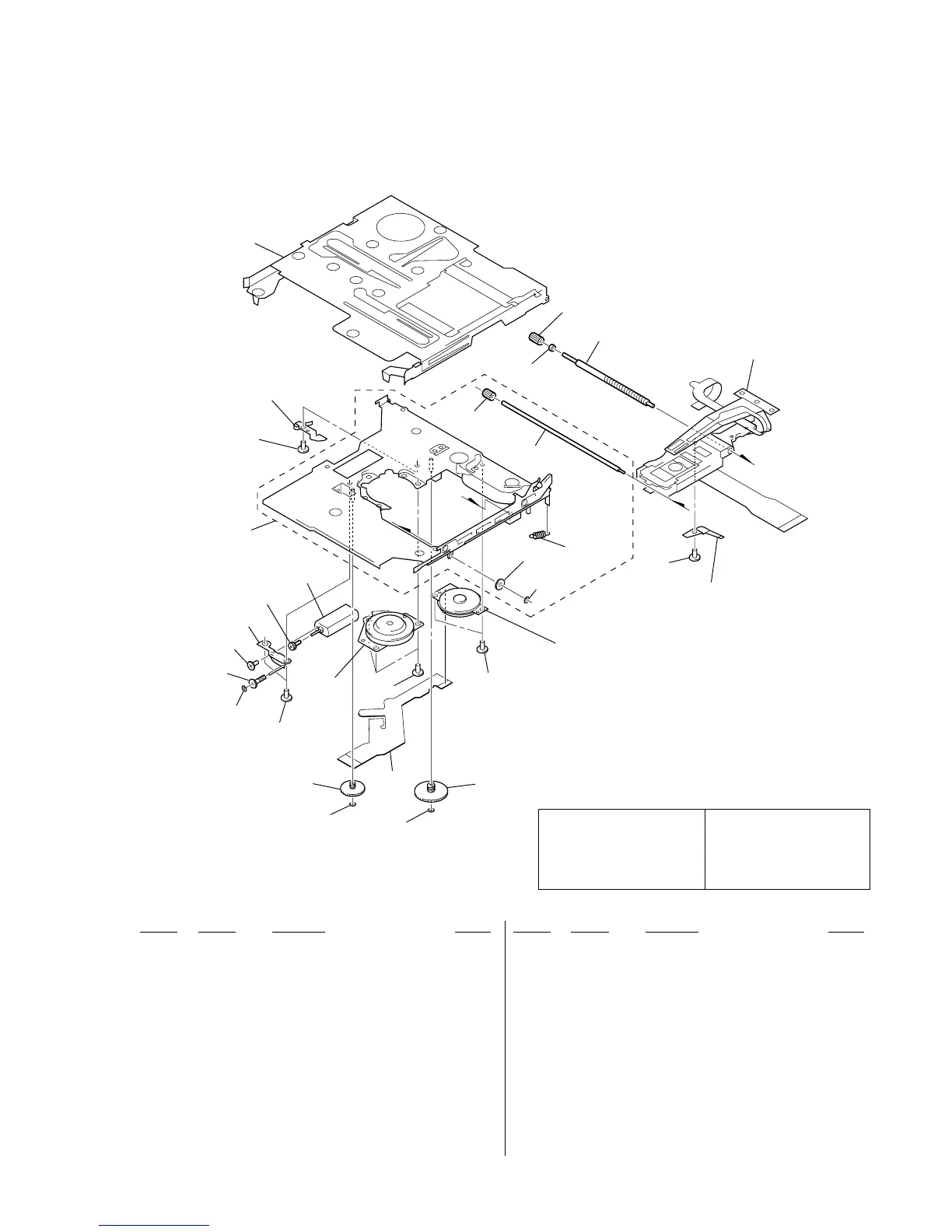

7-3. MD MECHANISM DECK SECTION
(MT-MZR700-172)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
101 X-3379-515-1 HOLDER ASSY
102 3-224-779-01 SPRING, THRUST DETENT
103 4-963-883-42 SCREW (M1.4), PRECISION PAN
104 X-3379-514-1 CHASSIS ASSY
105 4-222-218-02 GEAR (HD)
106 4-222-223-01 SHAFT, SUB
107 4-222-226-01 SPRING (EJECT), TENSION
108 4-222-222-01 GEAR (RACK)
109 3-338-645-31 WASHER (0.8-2.5)
110 X-3380-408-1 CHASSIS ASSY, GEAR
111 3-222-545-01 GEAR (HB)
112 4-224-885-01 SCREW (M1.2X1.5)
113 4-222-215-01 GEAR (HC)
114 1-679-372-11 FLEXIBLE BOARD
115 4-963-883-31 SCREW (M1.4), PRECISION PAN
116 4-222-216-01 GEAR (SA)
117 4-222-208-01 GEAR (SB)
118 4-222-204-01 BEARING (N)
119 4-222-203-02 SCREW, LEAD
0 120 X-3379-508-1 SERVICE ASSY, OP (LCX-4R)
121 3-049-336-01 SPRING (S), RACK
122 3-222-544-01 GEAR (HA)
M601 8-835-706-01 MOTOR, DC SSM18A/C-NP (SPINDLE)
(WITH TURNTABLE)
M602 1-763-399-11 MOTOR, DC (SLED) (WITH GEAR)
M603 1-763-400-21 MOTOR, DC (OVER WRITE HEAD UP/DOWN)
