NEX-VG30/VG30E/VG30EH/VG30H_L2
2-3

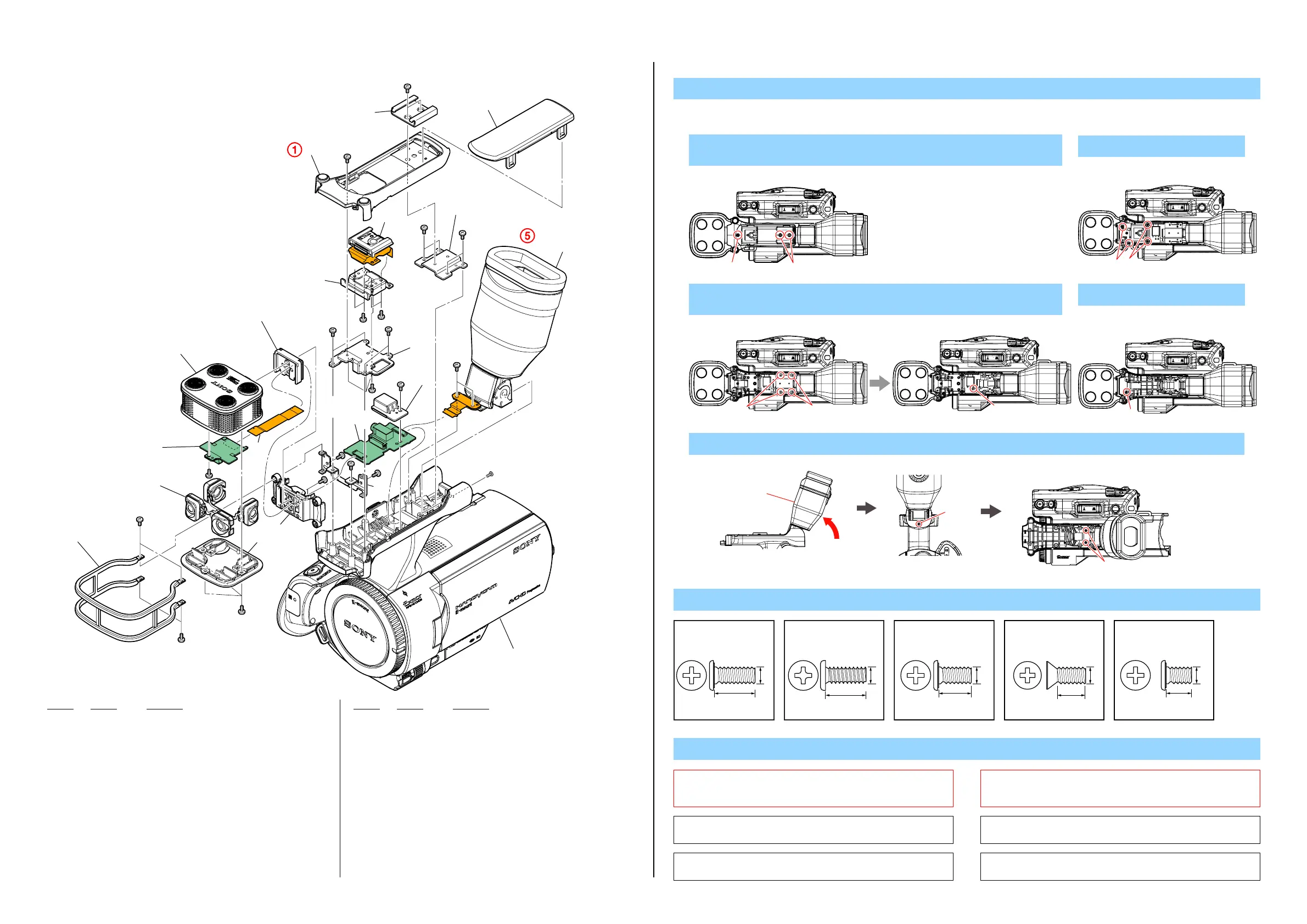

2-1. EXPLODED VIEWS
2-1-1. OVERALL SECTION-1
Ref. No. Part No. Description Ref. No. Part No. Description
1 4-257-594-01 LOWER, MIC CABINET
2 4-299-857-01 GUARD, MIC
3 A-1848-226-A MA-478 BOARD, COMPLETE (Note 2)
3 (Not supplied) MA-1002 BOARD, COMPLETE (Note 2)
4 1-839-024-11 CABLE, FLEXIBLE FLAT (FFC-266)
5 X-2582-834-1 CABINET ASSY, MIC
6 4-257-591-11 CABINET, GUARD
7 4-257-593-01 CUSHION, MIC
8 4-257-592-01 PLATE, GUARD FIXED
9 A-1902-804-A GP-1002 BOARD, COMPLETE (Note 3)
9 (Not supplied) GP-1010 BOARD, COMPLETE (Note 3)
10 4-437-498-01 SHEET METAL (456), (S) BELT
11 X-2585-389-1 FRAME (456) ASSY, SHOE
* 12 4-257-740-01 RETAINER, MIC
13 4-257-738-01 BRACKET, C SHOE
14 4-437-496-01 CABINET (456), HANDLE (UPPER)
15 3-067-469-11 SHOE, ACCESSORY
16 4-437-497-01 COVER (456), SHOE
17 A-1902-807-A FP-2006 FLEXIBLE BOARD, COMPLETE
MIC901 1-542-831-11 MICROPHONE UNIT (MIC36000)
#2 2-635-562-31 SCREW (M1.7)
#11 3-078-890-11 SCREW, TAPPING
#69 2-599-475-21 SCREW (M1.7)
#107 3-032-750-01 (+) K SCREW M2 (Note 1)
#281 3-053-446-01 SCREW (1.7X2), +P GRIP
DISASSEMBLY
1. Remove in numerical order (1 to 5) in the left figure.
1 Open the Shoe Cover (1-1) → #107 X 2 →
Remove the Accessory Shoe (1-2) → #2 X 1
3 #2 X 4 → Remove the C Shoe Bracket (3-1) → #2 X 1 →
Remove the MIC Retainer (3-2)
4 #2 X 1
5 Tilt the EVF (5) → #2 X 3
Top View
#107
#2
Top View
#2
Top View Top View
#2
#2
#2
#2
Top V i e w
Right View
#2
Back View
5
2 #2 X 4
Top View
#2
#2
Note
Note 1: This screw cannot be reused. Discard the screw removed
once in servicing.
Instead, use a new screw.
Note 1:
このねじは再利用することができません。
 サービス対応時に一度でも外した場合は新品のねじと交換
してください。
Screw
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
4.0
1.7
#69: M1.7 X 3.0
(Silver)
2-599-475-21
3.0
1.7
#281: M1.7 X 2.0
(Silver)
3-053-446-01
2.0
1.7
#107: M2.0 X 5.0
(Silver)
3-032-750-01
5.0
2.0
Note 2: Servicing board of the MA-1002 board is the MA-478 board.
They are equality boards.
Note 2:
MA-1002基板のサービス用基板はMA-478基板です。この2
基板は同等部品です。
2
1
6
3
(Note 2)
5
7
17
10
13
11
14
15
16
12
9
(Note 3)
8
4
Overall Section-2
(See Page 2-5)
#107
(Note 1)
#2
#69
#69
#11
#11
#11
#11
MIC901
#2
#2
#2
#281
#281
#2
#2
#2
#2
#2
#11
#2
3
2
4
1-2
1-1
3
-1
3-2
EVF Section
(See Page 2-4)
Note 3: Servicing board of the GP-1010 board is the GP-1002
board. They are equality boards.
Note 3:
GP-1010基板のサービス用基板はGP-1002基板です。この2
基板は同等部品です。
