NEX-VG30/VG30E/VG30EH/VG30H_L2
2-6

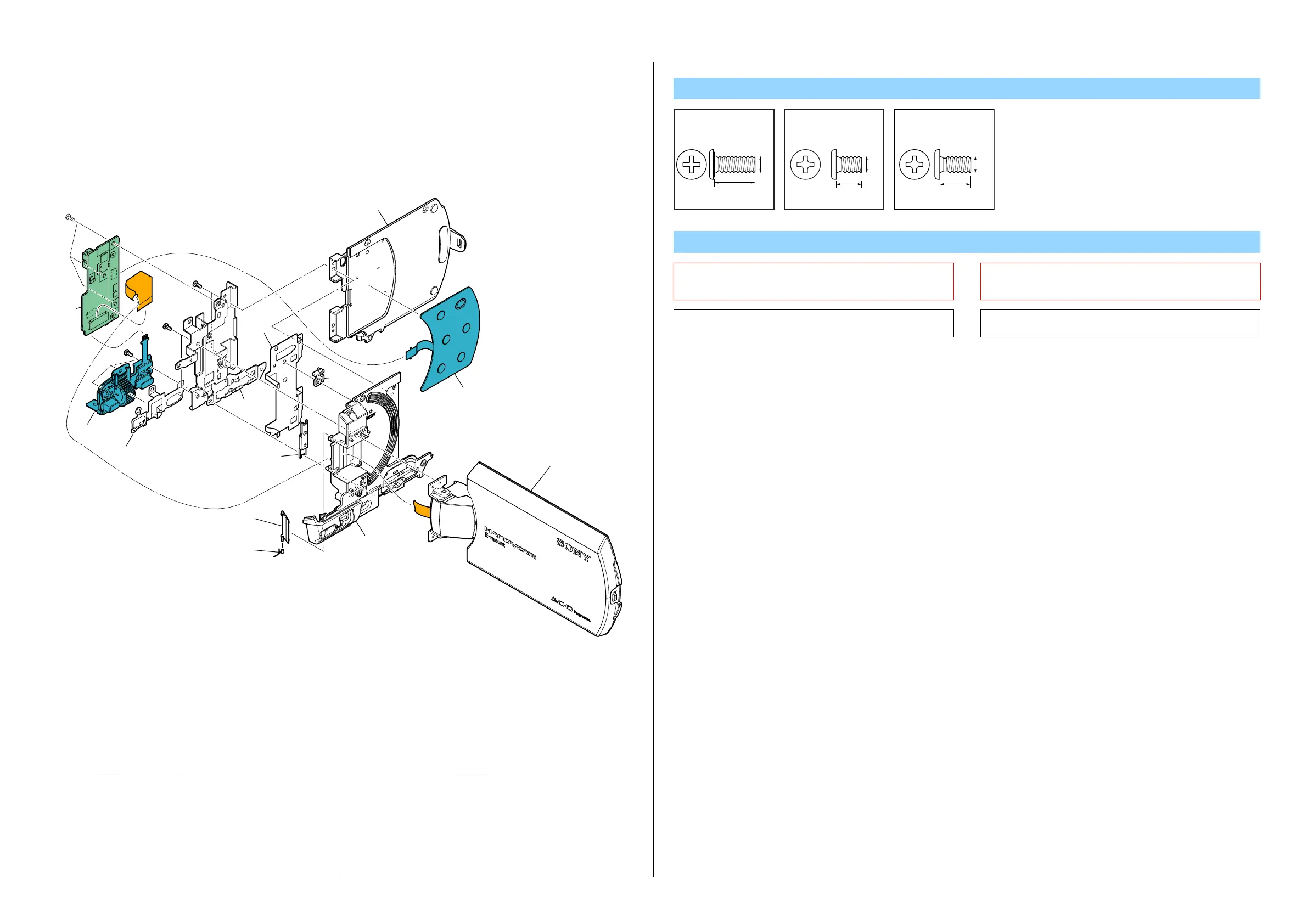

2-1-4. CABINET (R) SECTION
Screw
Ref. No. Part No. Description Ref. No. Part No. Description
151 X-2582-794-1 CABINET (R) ASSY
* 152 4-257-624-01 SPRING, BLIND
153 4-257-623-01 BLIND, HINGE
* 154 4-257-627-01 RETAINER (R), FLEXIBLE
155 4-299-897-01 HEAT SINK (R)
156 4-299-898-01 PLATE (AD), ELECTROSTATIC
157 4-299-896-01 FRAME, R
158 1-489-737-11 SWITCH BLOCK, CONTROL (AD36100)
159 A-1848-229-A CK-238 BOARD, COMPLETE
160 X-2582-837-1 CABINET (R) ASSY, BT
161 4-299-899-01 BUTTON, RESET
162 1-489-736-31 SWITCH BLOCK, CONTROL (SK36100) (Note 2)
#12 3-080-204-21 SCREW, TAPPING, P2
#46 2-660-401-11 SCREW (M1.7), NEW TRU-STAR, P2
#238 4-287-436-01 SCREW (M1.7) (Note 1)
#46: M1.7 X 3.0
(Red)
2-660-401-11
3.0
1.7
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#238:
3.5
1.7
(Black)
M1.7 X 3.5
4-287-436-01
Note
159
158
157
161
156
153
152
154
155
160
162
(Note 2)
151
LCD Section
(See Page 2-7)
#46
#12
#238
(Note 1)
#12
Note 2: Do not reuse the Control Switch Block (SK36100) because
its adhesive force decreases when it is removed once.
Note 2:
Control Switch Block (SK36100) は一度剥がすと粘着力が弱
くなるため，再利用はしないでください。
Note 1: This screw cannot be reused. Discard the screw removed
once in servicing.
Instead, use a new screw.
Note 1:
このねじは再利用することができません。
サービス対応時に一度でも外した場合は新品のねじと交換
してください。
To Next Page
