NEX-VG30/VG30E/VG30EH/VG30H_L2
2-9

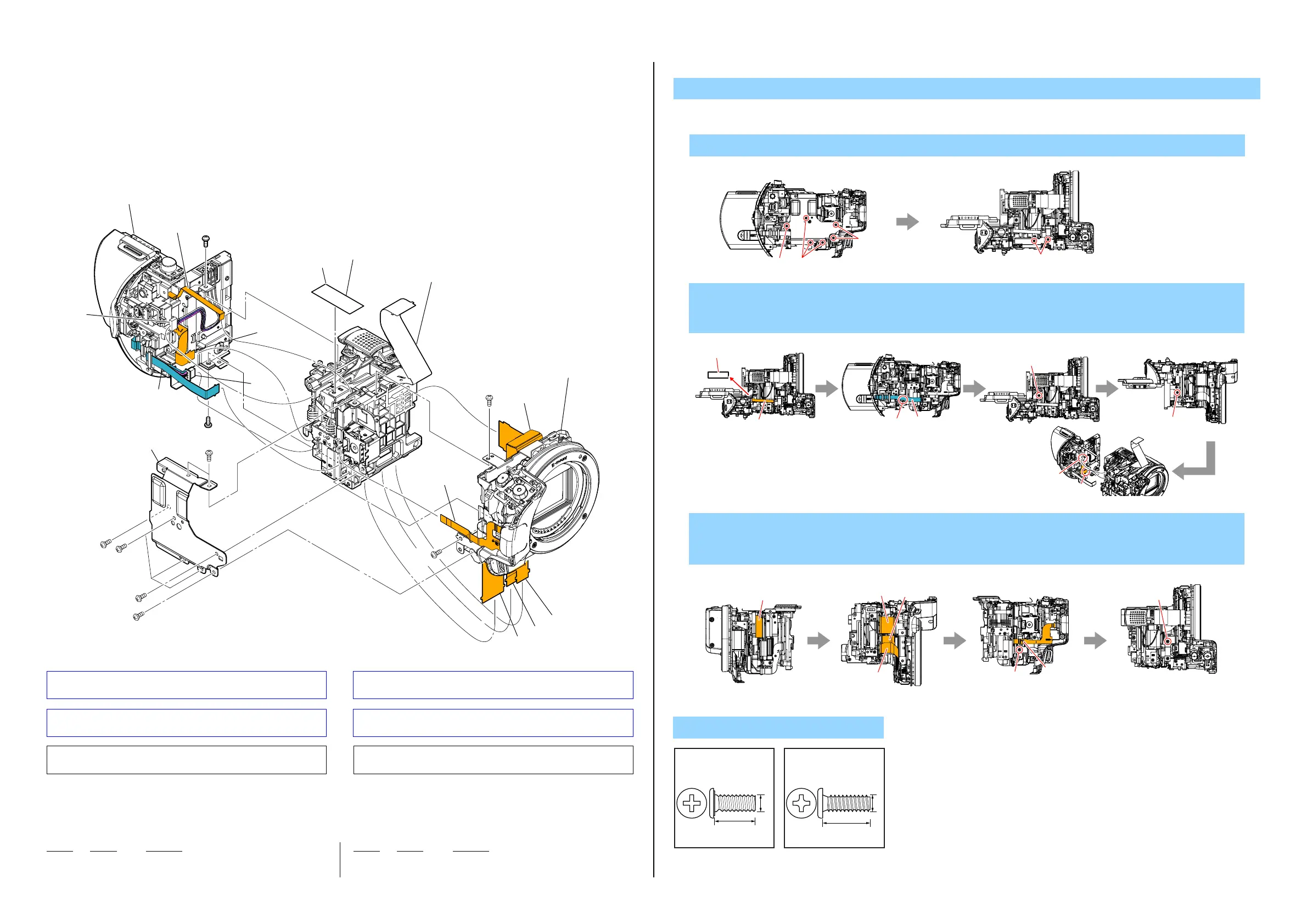

2-1-7. OVERALL SECTION-3
DISASSEMBLY
1. Remove in numerical order (1 to 3) in the left figure.
1 #2 X 3 → #12 X 5
2 Remove the Tape AS (2-1) → Disconnect the Flexible Flat Cable (FFC-233) (2-2) → Disconnect
the Control Switch Block (PS36000) (2-3) → Disconnect the DC-IN Harness (2-4) → #12 X 2 →
Disconnect the Battery Connector Harness (2-5) → Disconnect the FP-1441 Flexible Board (2-6)
3 Disconnect the FP-1449 Flexible Board (3-1) → Disconnect the FP-1433 Flexible Board (3-2) →
Disconnect the FP-1434 Flexible Board (3-3) → Disconnect the FP-1448 Flexible Board (3-4) →
Disconnect the FP-2061 Flexible Board (3-5) → #12 X 2
Ref. No. Part No. Description Ref. No. Part No. Description
301 4-257-710-11 HEAT SINK, MAIN
302 3-076-631-01 NON WOVEN (T0.25) (Note 3)
#2 2-635-562-31 SCREW (M1.7)
#12 3-080-204-21 SCREW, TAPPING, P2
Left View
#12
#2
#12
#2
Top View
Top View Left View Top View Bottom View
#12
#12
2-2
2-1
2-3
2-5
2-6
2-4
Right View Bottom View Left View Top View
#12
#12
3-1
3-2 3-4
3-3
3-5
Screw
Note 1: Refer to “Assembly-3: Installation Cautions of the Cabinet (L)
Block Section.”.
Note 2: Refer to “Assembly-4: Installation Cautions of the Mount Block
Section.”.
Note 1:
“Assembly-3: Installation Cautions of the Cabinet (L) Block
Section.” を参照してください。
Note 2:
“Assembly-4: Installation Cautions of the Mount Block Sec-
tion.” を参照してください。
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
1 301
3-1
3-3
3-5
3-4
3-2
#12
#12
#2
#2
#2
#12
#12
#12
Main Board Section
(See Page 2-14)
3
Mount Block Section
(See Page 2-11)
(Note 2)
2-1
302
(Note 3)
(Size: 28 x 8.0mm)
2
#12
Cabinet (L) Section
(See Page 2-10)
(Note 1)
2-2
2-5
2-3
2-4
2-6
Note 3: Cut the NON WOVEN (T0.25) (Ref.No.302) for specified size
and use it.
Note 3:
ヒメロン(T0.25) (図面番号302) は, 指定の寸法にカットして
使用してください。
