7-1
BDP-S7200
Ref. No. Part No. Description Remark
* 1 X-2589-328-1 PANEL ASSY, TOP BDP-S7200:Except US
* 1 X-2589-425-1 PANEL ASSY, TOP BDP-S7200:US
2 X-2589-329-1 TRAY ASSY, COVER
The components identifi ed by mark or dotted
line with mark
are critical for safety.
Replace only with part number specifi ed.
Les composants iden tifi és par une marque
sont critiquens pour la sécurité.
Ne les remplace r que par une pièce portant le
numéro spécifi é.
The components identifi ed by mark contain
confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
con-
tiennent des informations confi dentielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé et
/ ou réparé.

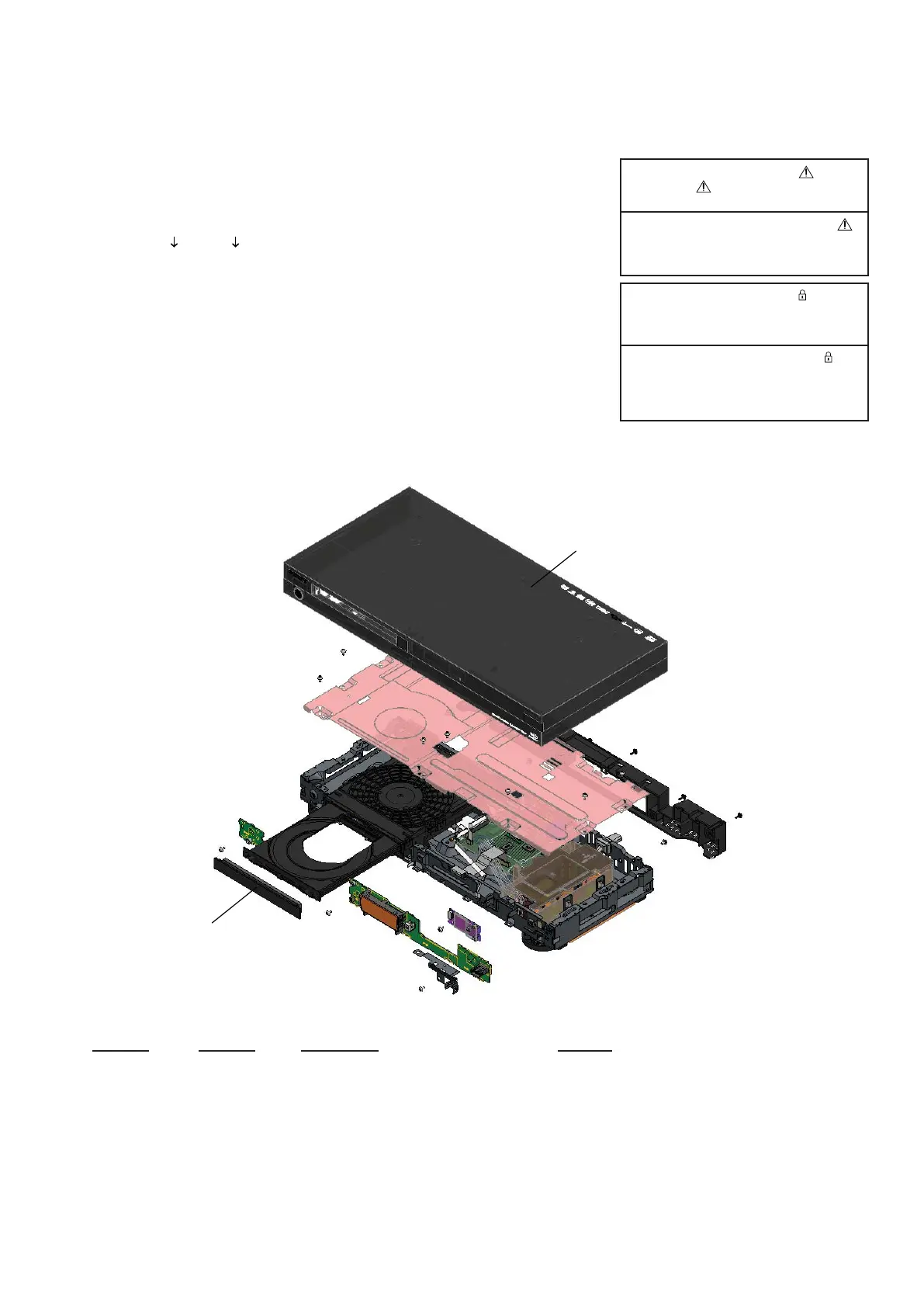

7-1. EXPLODED VIEWS
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
• Items marked “*” are not stocked since they are sel-
dom required for routine service. Some delay should
be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories and packing materials are given in the
last of the electrical parts list.
7-1-1 CASE SECTION
ns: not supplied
Abbreviation :
AEP : AEP Model
SP : Singapore Model
TH : Thailand Model
TW : Taiwan Region Model
UK : AEP Model
US : US Model
SECTION 7
REPAIR PARTS LIST
1
2
