Sony SA-W2500 Service Manual

10
SA-W2500/W3000/W3800

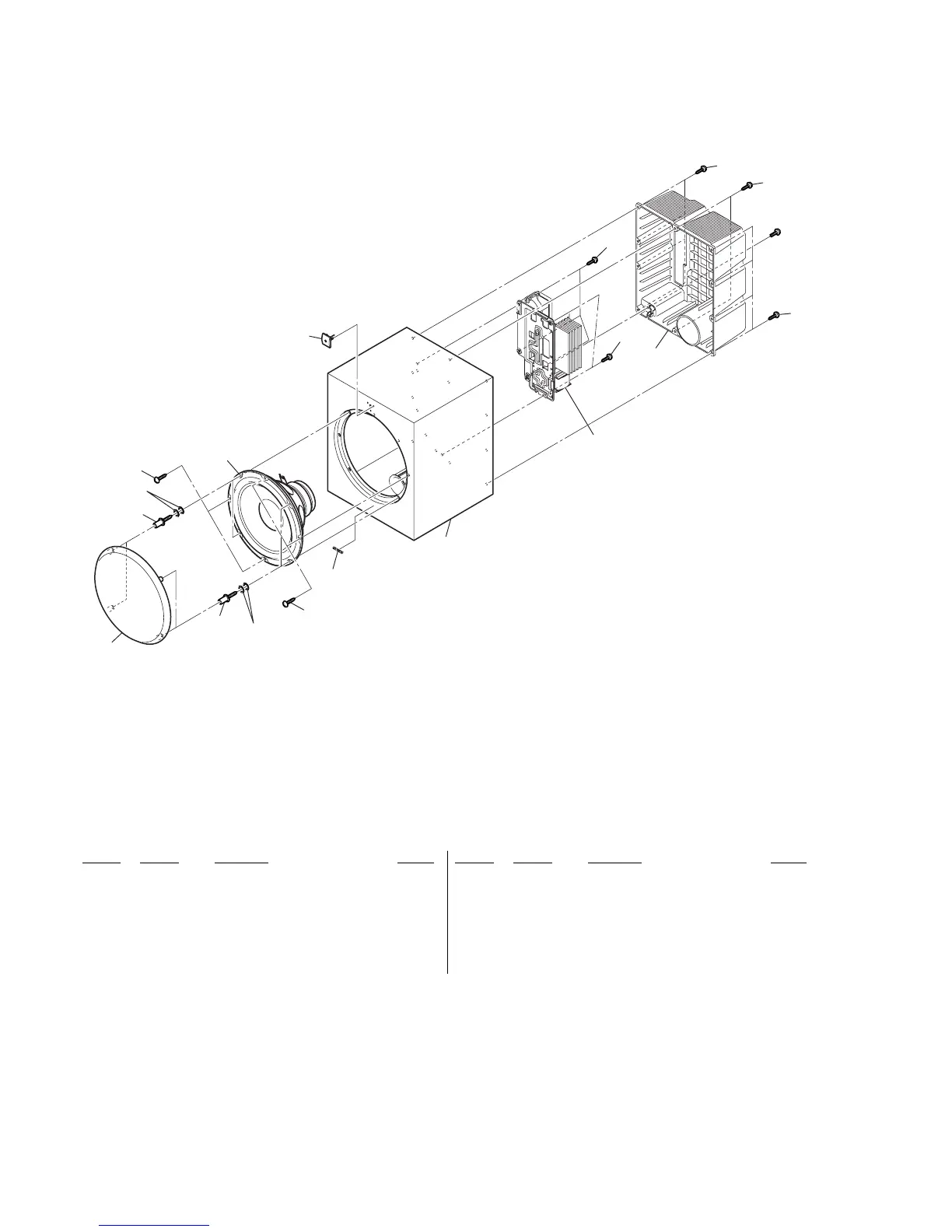

2-2. CABINET SECTION (W3000)
51
52
53
53
54
55
56
56
56
56
56
52
not supplied
not supplied
not supplied
AMP section
#1
not supplied
SP101
51 A-1252-419-A GRILLE FRAME ASSY...(BLACK)
(W3000: US, CND, SP, MY, AUS)
51 A-1252-420-A GRILLE FRAME ASSY...(WOOD)
(W3000: E51, SP, MY, KR, TH)
52 4-229-774-01 SCREW, TAPPING, HEXAGON SOCKET
53 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP
54 4-210-176-31 EMBLEM (NO.6), SONY
55 A-1224-561-A PANEL INDICATOR ASSY
56 4-874-614-52 SCREW (1) (3.5X20), TAPPING
SP101 1-826-572-11 LOUDSPEAKER (30cm)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.1

Sony SA-W2500 Specifications

General

frequency response	28Hz-200Hz
woofer size	25cm
power handling	100W
line level input	1 (Rear)
speaker level input	1 (Rear)
power requirements	120V AC, 60Hz
power consumption (in operation)	70W
power consumption (in standby)	less than 0.3W

Weight and Dimensions

weight	10kg
measurements	290 x 350 x 391mm
