Sony SA-W2500 Service Manual

SA-W2500/W3000/W3800
11

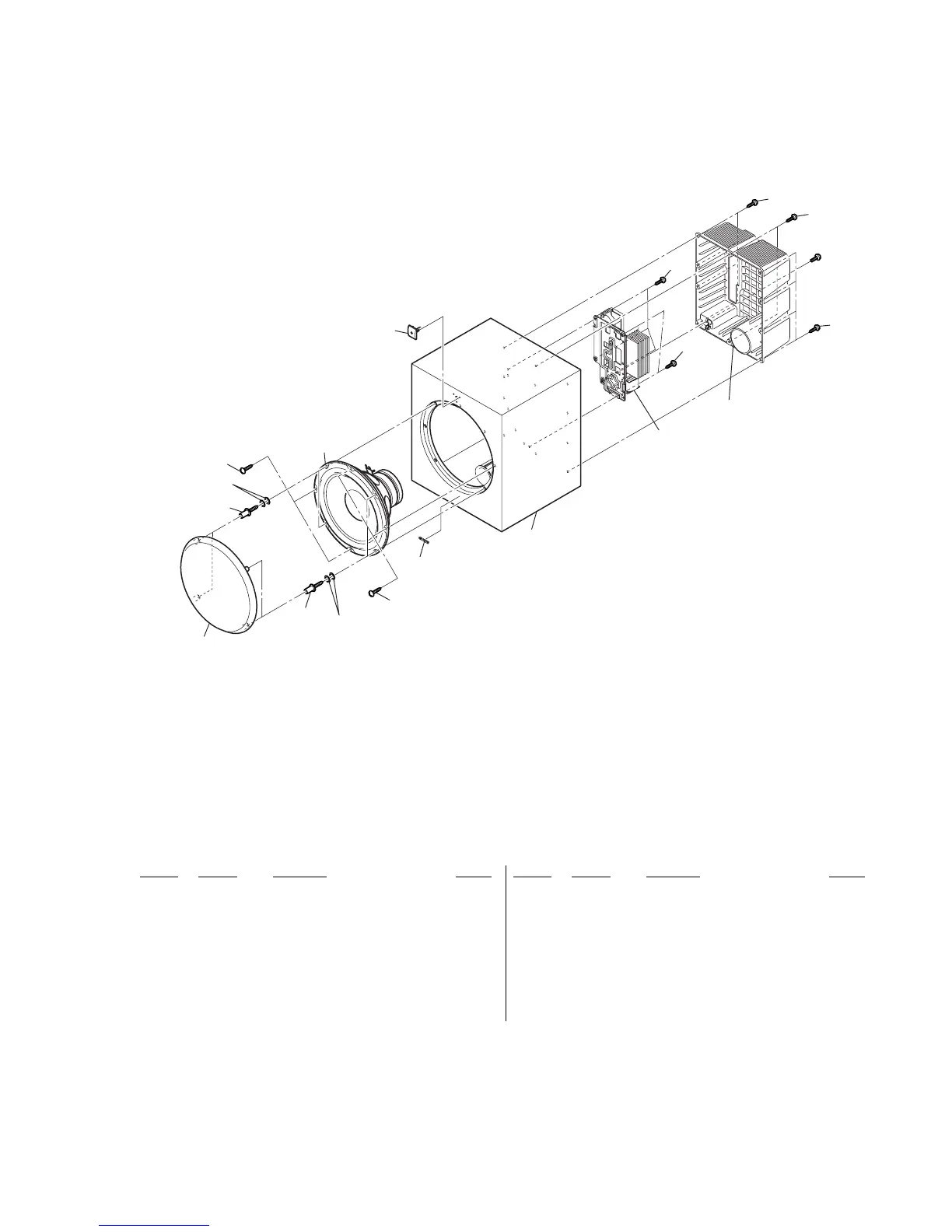

2-3. CABINET SECTION (W3800)
101
102
103
103
104
105
107
107
107
107
107
106
102
not supplied
not supplied
AMP section
#1
not supplied
SP101
101 A-1252-421-A GRILLE FRAME ASSY...(BLACK)
(W3800: US, CND, SP, MY, AUS)
101 A-1252-422-A GRILLE FRAME ASSY...(WOOD)
(W3800: AEP, E51, SP, MY)
102 4-229-774-01 SCREW, TAPPING, HEXAGON SOCKET
103 4-235-677-01 SCREW (4X20) (TYPE1), +BVTP (W3800)
104 4-210-176-31 EMBLEM (NO.6), SONY
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
105 A-1223-508-A SPEAKER CABINET ASSY (BLACK)
(W3800: US, CND, SP, MY, AUS)
105 A-1223-514-A SPEAKER CABINET ASSY (WOOD)
(W3800: AEP, E51, SP, MY)
106 A-1224-561-A PANEL INDICATOR ASSY
107 4-874-614-52 SCREW (1) (3.5X20), TAPPING
SP101 1-826-573-11 LOUNDSPEAKER (38cm) (W3800)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S

Sony SA-W2500 Specifications

General

frequency response	28Hz-200Hz
woofer size	25cm
power handling	100W
line level input	1 (Rear)
speaker level input	1 (Rear)
power requirements	120V AC, 60Hz
power consumption (in operation)	70W
power consumption (in standby)	less than 0.3W

Weight and Dimensions

weight	10kg
measurements	290 x 350 x 391mm
