Sony SA-WCT291 Service Manual

HT-CT290/CT291
HT-CT290/CT291
3030

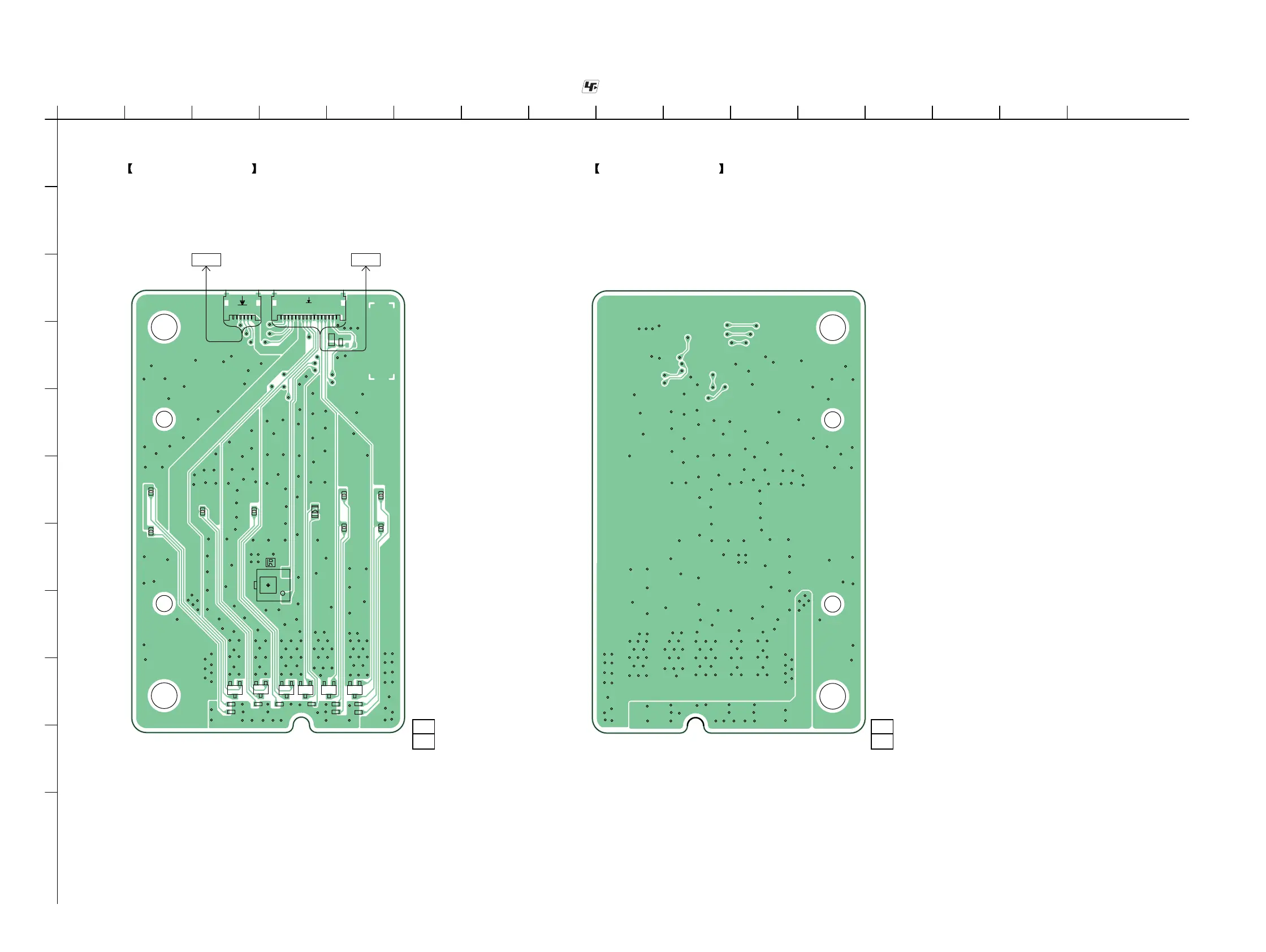

5-7. PRINTED WIRING BOARD - DISP CHUKEI Board - • See page 27 for Circuit Boards Location. • : Uses unleaded solder.
1
A
B
C
D
E
F
G
H
I
J
K
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
D5000
78
61
CN5003
1
16
17
18
CN5001
D5002
R5009
Q5007
Q5002
Q5001
Q5003
R5008
Q5005
E
E
E
E
E
E
R5010
R5014
Q5006
D5001
D5006
2
4
1
3
IC5001
C5001
D5007
D5008
D5009
D5010
D5011
R5016R5017
R5018
R5021
R5022
R5023
DISP CHUKEI BOARD
(COMPONENT SIDE)
DISP CHUKEI BOARD
(CONDUCTOR SIDE)
11
(11)
1-981-461-
11
(11)
1-981-461-
TOUCH BOARD
CN4001
(Page 31)
>003P
MAIN BOARD
CN2006
(Page 28)
>002P
