SA-WSF200/WSF500/SS-CTF500/F500/TSF200/TSF500
3
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
SECTION 1
SERVICING NOTES
BEGIN IT BEFORE THE REPAIR (SA-WSF200)
When the SA-WSF200 is checked, connect to HCD-F200 (for
DVD receiver of DAV-F200). Be sure in advance the HCD-F200
is prepared.
BEGIN IT BEFORE THE REPAIR (SA-WSF500)
When the SA-WSF500 is checked, connect to HCD-F500 (for
DVD receiver of DAV-F500). Be sure in advance the HCD-F500
is prepared.
MODEL IDENTIFICATION (SA-WSF200/WSF500)
Model Part No.
SA-WSF200: AEP and UK models
3-294-285-0[]
SA-WSF200: Singapore model
3-294-286-0[]
SA-WSF500: Canadian model
3-294-289-0[]
SA-WSF500: Russian model
3-294-291-0[]
SA-WSF500: Singapore model
3-294-292-0[]
SA-WSF500: 240V AC area in E
and Iranian models
3-294-293-0[]
SA-WSF500: Thai model
3-294-295-0[]
SA-WSF500: Australian model
3-294-297-0[]
SA-WSF500: Korean model
3-294-298-0[]
SA-WSF500: Latin American model
(110 – 240V AC area)
3-294-299-0[]
SA-WSF500: Mexican model
3-294-300-0[]
SA-WSF500: Taiwan model
3-294-301-0[]
SA-WSF200: Thai model
3-452-614-0[]
SA-WSF500: Saudi Arabia model
4-114-165-0[]
Part No.

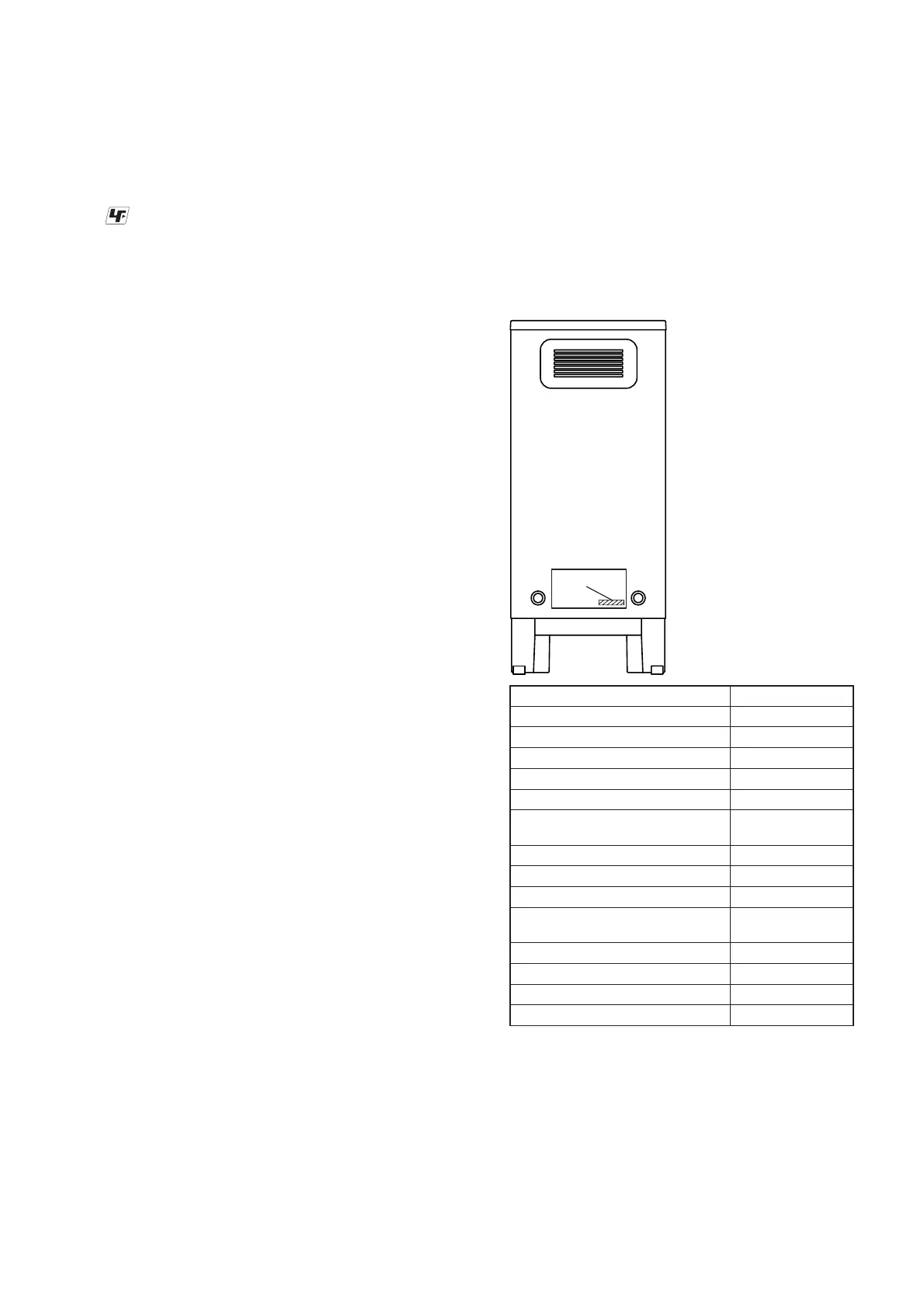

– Rear View –
Ver. 1.1
