2-5

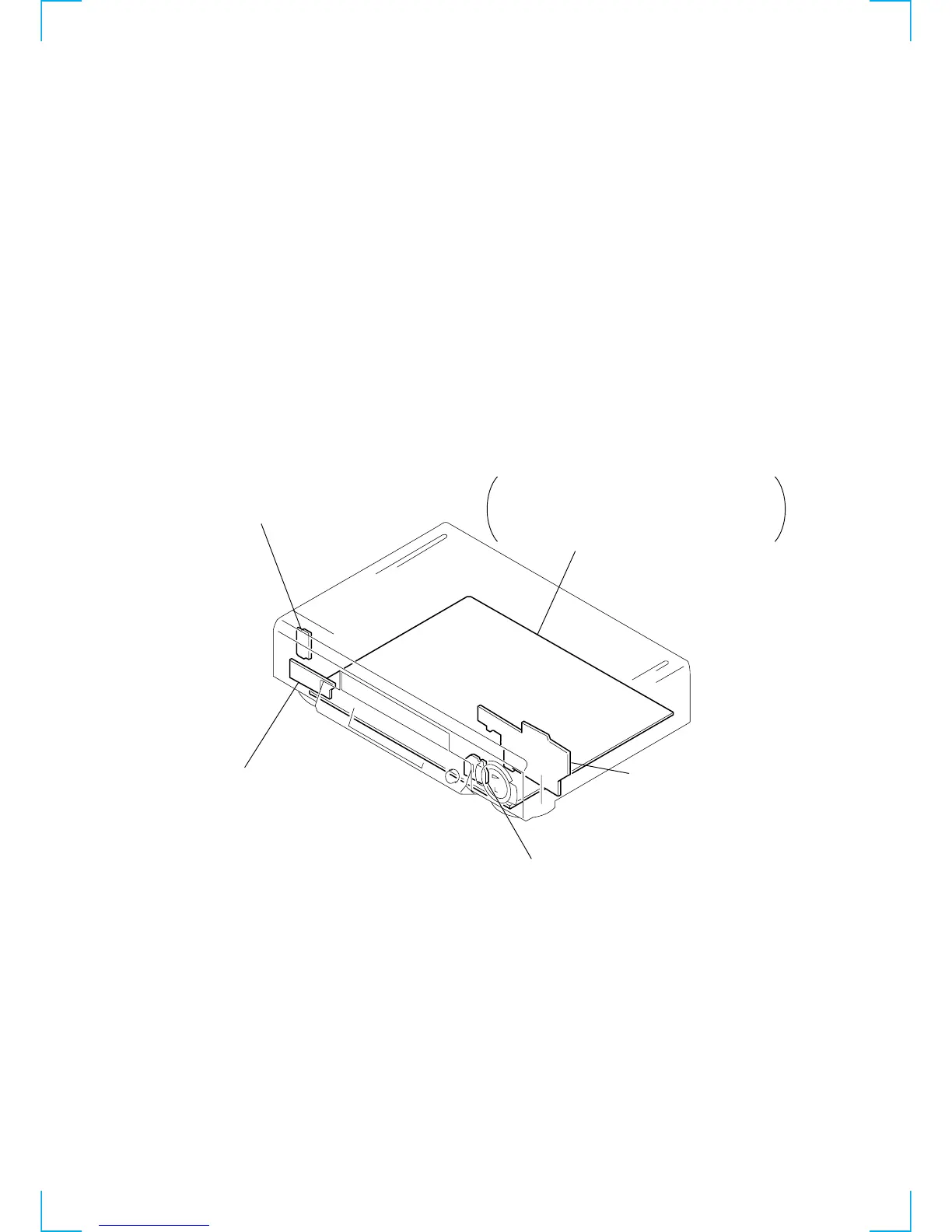

2-7. CIRCUIT BOARDS LOCATION

VIDEO, AUDIO,

SERVO/SYSTEM CONTROL,

TUNER, POWER SUPPLY

MF-319 (N70/N80/LX8S)

(POWER, EJECT SWITCH)

JK-178M (LX4/LX5)

JK-178H (LX6S/LX7S)

JK-178HV (AX10/AX20/N50/N60)

JK-178HVMX (N60U)

JK-191 (N70/N80/LX8S)

(LINE 2 IN)

DI-74 (LX4/LX5/LX6S/LX7S)

DI-74V (AX20/N60)

DI-74S (N70/N80/LX8S)

DI-74VMX (N60U)

(DIAL TIMER)

DM-89 (N70/N80/LX8S)

(USER CONTROL)

MA-370N3S (LX4/LX5MX/LX5PA/

LX5PC/LX5VZ)

MA-370N3A (LX5CS/LX5CL)

MA-370N5S (LX6S/LX7SMX/LX7SPA/

LX7SPC/LX7SVZ)

MA-370N5A (LX7SCS/LX7SCL)

MA-370A8 (N80)

MA-370A7 (N70)

MA-370N7S (LX8SMX)

MA-370N7A (LX8SCS)

MA-370A5 (AX10/N50)

MA-370A6 (AX20/N60)

MA-370A6MX (N60U)
