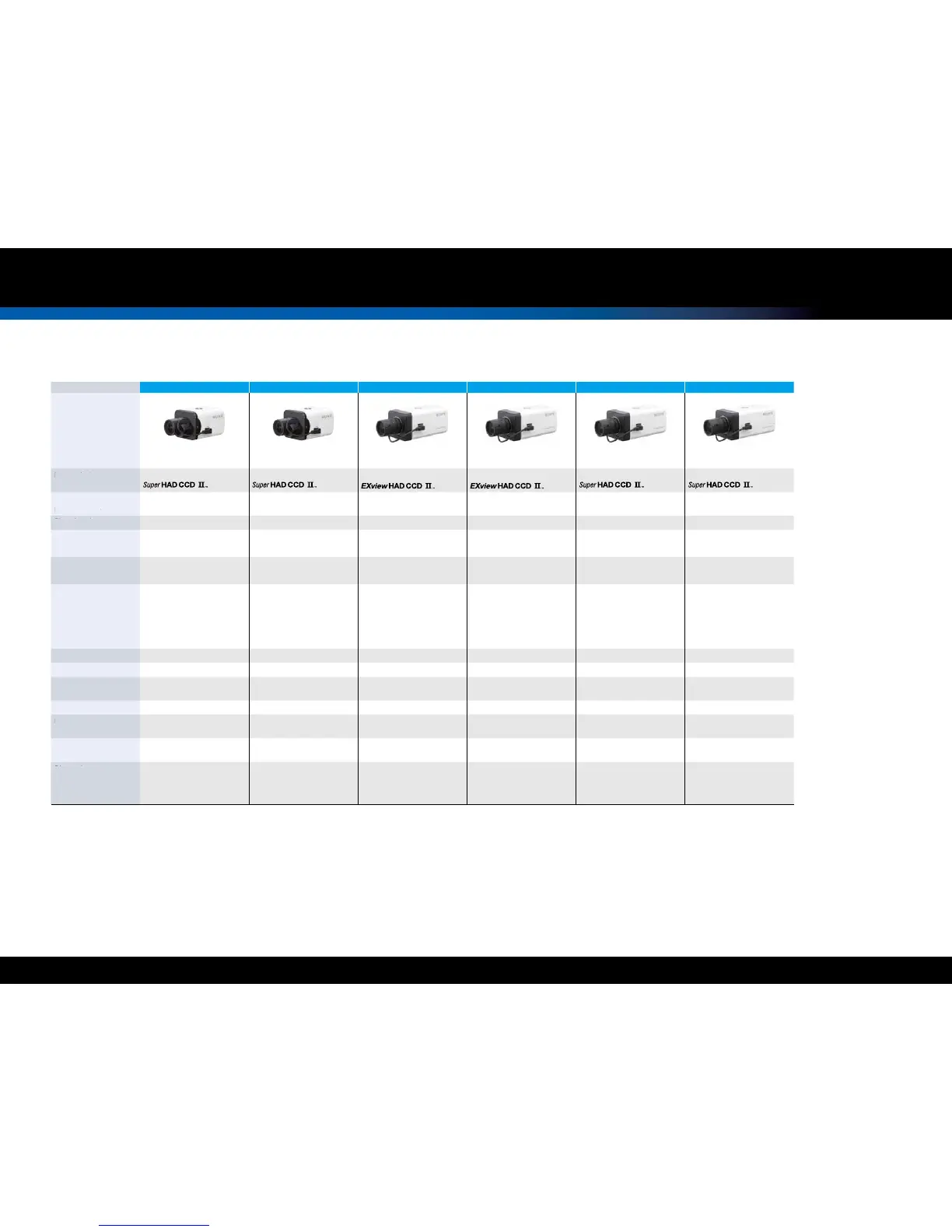

Analog Fixed Cameras
Model name
SSC-FB560 SSC-FB530 SSC-G213A SSC-G113A SSC-G203A SSC-G103A
Optional CS mount lens
available
Optional CS mount lens
available
Optional CS mount lens
available
Optional CS mount lens
available
Optional CS mount lens
available
Optional CS mount lens
available
Image device 1/3-Type “Super HAD™ CCD II” 1/3-Type “Super HAD CCD II” 1/3-type “EXview™ HAD CCD II” 1/3-type “EXview HAD CCD II” 1/3-Type “Super HAD CCD II” 1/3-Type “Super HAD CCD II”
Number of effective
pixels (H x V)
480,000 pixels (976x494) 480,000 pixels (976x494) 480,000 pixels (976x494) 480,000 pixels (976x494) 380,000 pixels (768 x 494) 380,000 pixels (768 x 494)
Signal system
NTSC standard NTSC standard NTSC standard NTSC standard NTSC standard NTSC standard
Horizontal resolution 700 TV lines
(sharp mode)
700 TV lines
(sharp mode)
650 TV lines 650 TV lines 540 TV lines 540 TV lines
IR illuminators No No No No No No
Minimum illumination Color: 0.08 lx,
B/W: 0.01 lx
(F1.2/AGC ON/50 IRE)
Color: 0.05 lx,
B/W: 0.006 lx
(F1.2/AGC ON/30 IRE)
Color: 0.08 lx,
B/W: 0.05 lx
(F1.2/AGC ON/50 IRE)
Color: 0.05 lx,
B/W: 0.03 lx
(F1.2/AGC ON/30 IRE)
Color: 0.15 lx,
B/W: 0.01 lx
(F1.2, AGC ON, 50 IRE);
Color: 0.08 lx,
B/W: 0.003 lx
(F1.2, AGC ON, 30 IRE)
Color: 0.15 lx,
B/W: 0.1 lx (F1.2, 50 IRE);
Color: 0.08 lx,
B/W: 0.03 lx (F1.2, 30IRE)
Color: 0.15 lx,
B/W: 0.01 lx
(F1.2, AGC ON, 50 IRE);
Color: 0.08 lx,
B/W: 0.003 lx
(F1.2, AGC ON, 30 IRE)
Color: 0.15 lx,
B/W: 0.1 lx (F1.2, 50 IRE);
Color: 0.08 lx,
B/W: 0.03 lx (F1.2, 30 IRE)
Day/Night Day/Night Electrical D/N Day/Night Electrical D/N Day/Night Electrical D/N
Wide Dynamic Yes/DynaViewSX Yes/DynaViewSX No No No No
Synchronization Internal/AC linelock
selectable
Internal/AC linelock
selectable
Internal/AC line lock
selectable
Internal/AC line lock
selectable
Internal/AC line lock
selectable
Internal/AC line lock
selectable
Lens type (optional) CS mount lens CS mount lens CS mount lens CS mount lens CS mount lens CS mount lens
Power requirement AC 24 V ±10%,
DC 12 V ±10%
AC 24 V ±10%,
DC 12 V ±10%
AC 24 V ±10 %,
DC 12 V ±10 %
AC 24 V ±10 %,
DC 12 V ±10 %
AC 24 V ±10 %,
DC 12 V ±10 %
AC 24 V ±10 %,
DC 12 V ±10 %
Operating temperature 14 F° to 122 F°
(-10 °C to +50 °C)
14 F° to 122 F°
(-10 °C to +50 °C)
14 F° to 122 F°
(-10 °C to +50 °C)
14 F° to 122 F°
(-10 °C to +50 °C)
14 F° to 122 F°
(-10 °C to +50 °C)
14 F° to 122 F°
(-10 °C to +50 °C)
Dimensions 2 1/2 x 2 1/4 x 3 1/2 inches
(63 x 57 x 88 mm) without
lens, not including projecting
parts)
2 1/2 x 2 1/4 x 3 1/2 inches
(63 x 57 x 88 mm) without
lens, not including projecting
parts)
4 3/4 x 2 1/2 x 2 3/8 inches
(117.6 x 63.2 x 57.2 mm)
without lens, not including
projecting parts)
4 3/4 x 2 1/2 x 2 3/8 inches
(117.6 x 63.2 x 57.2 mm)
without lens, not including
projecting parts)
4 3/4 x 2 1/2 x 2 3/8 inches
(117.6 x 63.2 x 57.2 mm)
without lens, not including
projecting parts)
4 3/4 x 2 1/2 x 2 3/8 inches
(117.6 x 63.2 x 57.2 mm)
without lens, not including
projecting parts)
Model name
Image device
Number of effective
pixels (H x V)
Signal system
Horizontal resolution
IR illuminators
Minimum illumination
Day/Night
Wide Dynamic
Synchronization
Lens type (optional)
Power requirement
Operating temperature
Dimensions
