Sony STR-DB930 User Manual

3
|
|
;
i
|
|
ELI ee M e CC '"" n c c E — P — __. ______-__________ __=- ___. 7

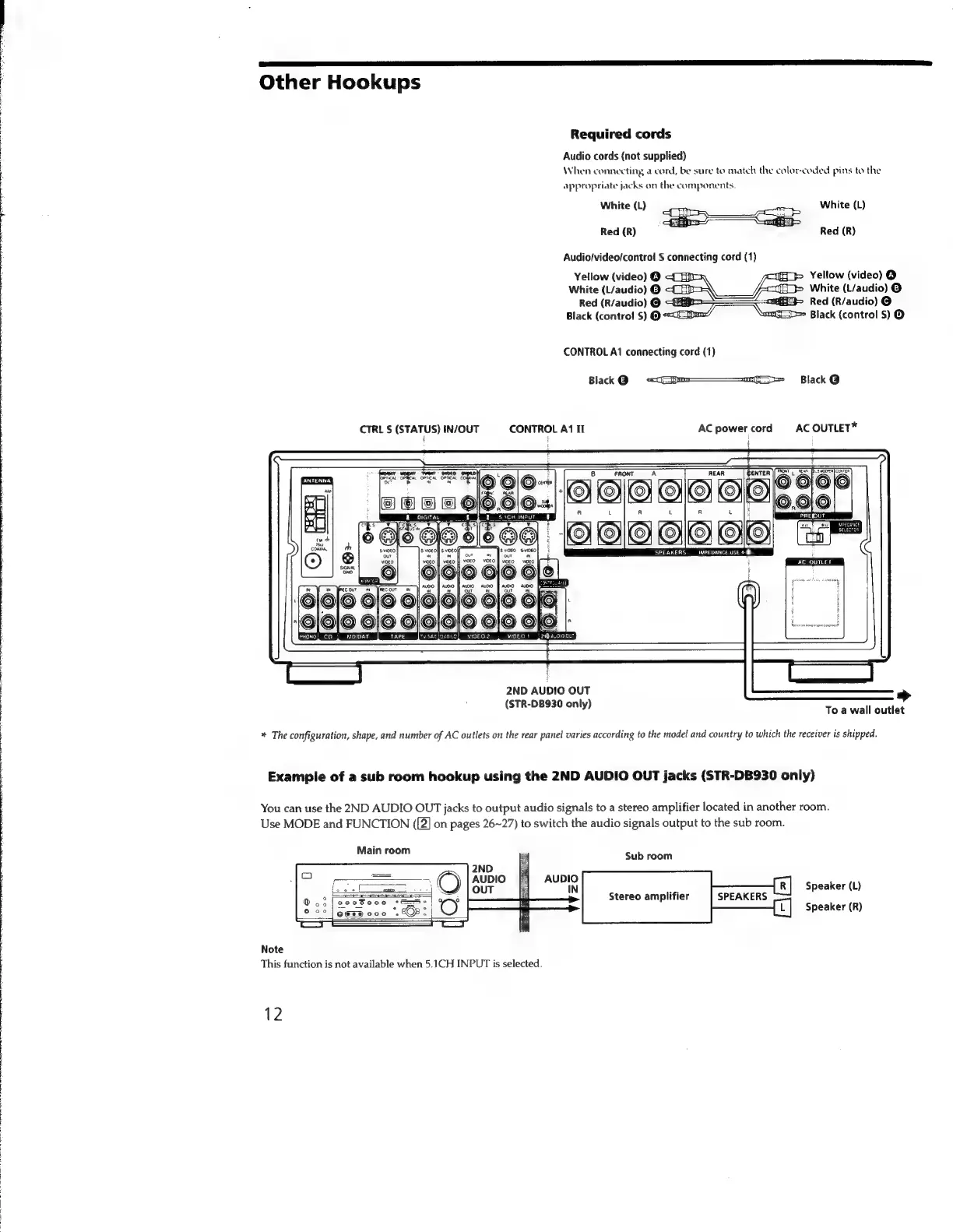

Other Hookups
Required cords
Audio cords (not supplied)
When connecting а cord, be sure to match the color-coded pins to the
appropriate jacks on the components.
White (L) White (L)
Red(R) — —— Red (R)
Audio/video/control S connecting cord (1)
Yellow (video) Q
White (L/audio) Ө “CEM
Red (R/audio) Ө =
Black (control S) © =
I2 Red (R/audio) Ө
= Black (control 5) ©
CONTROL A1 connecting cord (1)
Black Q Black @
CTRL S (STATUS) IN/OUT CONTROL A1 II AC power cord AC OUTLET*
i : i
55220288. 00000708
SERA 9000. IN |
__5 ICH IN INPUT
SPEAKERS IMPEDANCE USE 4-' [B Бг
PHONO CD i MD/DAT ту DLO] VIDEO 2 TEISEND
2ND AUDIO OUT
(STR-DB930
only)
To
a
wall
outlet
* The configuration, shape, and number of AC outlets on the rear panel varies according to the model and country to which the receiver is shipped.
Example of a sub room hookup using the 2ND AUDIO OUT jacks (STR-DB930 only)
You can use the 2ND AUDIO OUT jacks to output audio signals to a stereo amplifier located in another room.
Use MODE and FUNCTION ([2] on pages 26~27) to switch the audio signals output to the sub room.
Main room
Sub room
Speaker (L)
Stereo amplifier SPEAKERS
Speaker (R)
Note
This function is not available when 5.1CH INPUT is selected.
12
