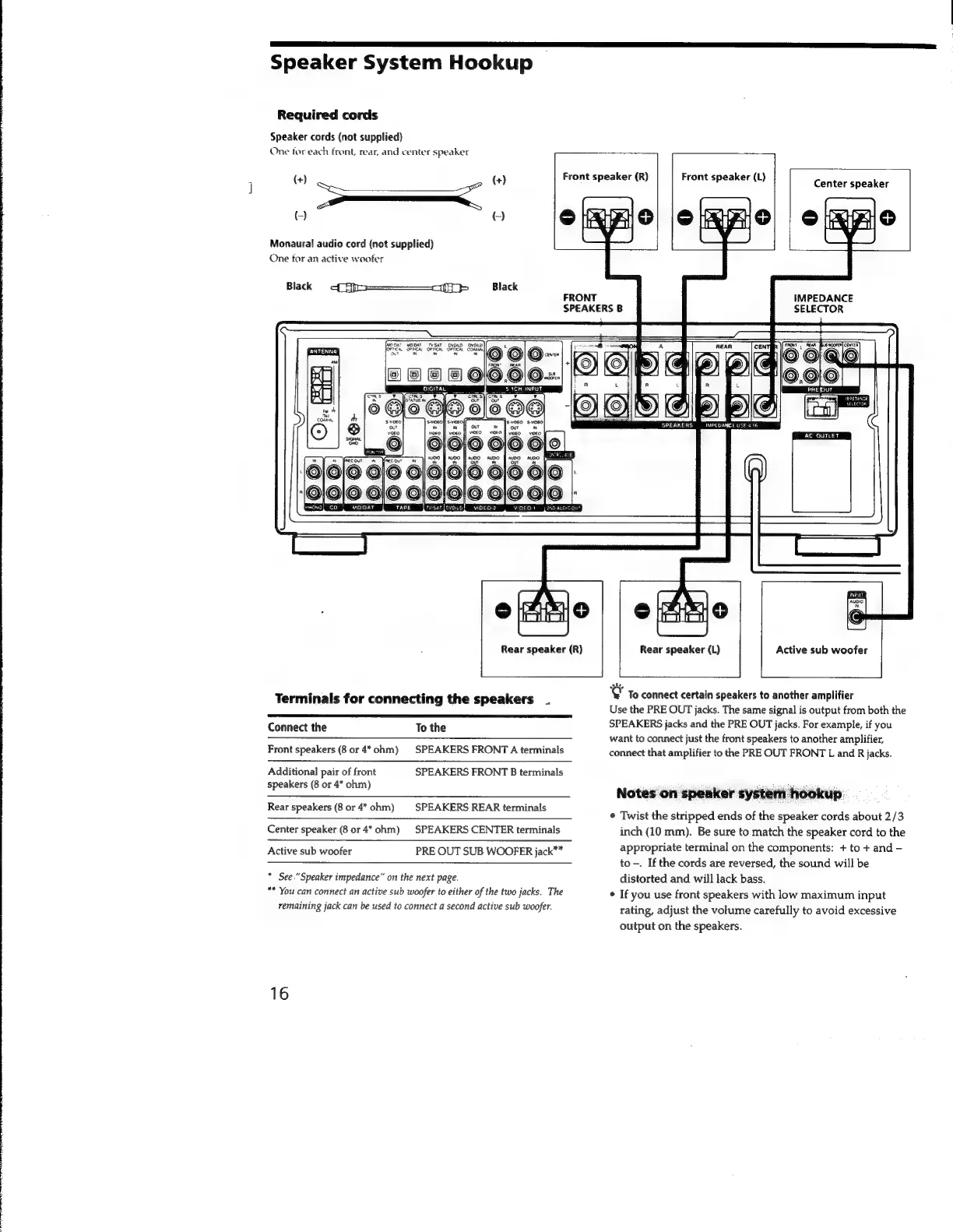

Speaker System Hookup
Required cords
Speaker cords (not supplied)
One for each front, rear, and center speaker
Front speaker (R)
Front speaker (L) Center speaker
a
nl
©
(+) ; 6 {+)
Q о
Monaural audio cord (not supplied)
One for an active woofer
Black =g Black
А ео
LY J P
FRONT IMPEDANCE
SPEAKERS B SELECTOR
Бн
Rear speaker (К)
Terminals for connecting the speakers _
Connect the To the
Front speakers (8 ог 4“ ohm) SPEAKERS FRONT A terminals
Additional pair of front SPEAKERS FRONT B terminals
speakers (8 or 4* ohm)
Rear speakers (8 or 4* ohm) SPEAKERS REAR terminals
Center speaker (8 or 4* ohm) SPEAKERS CENTER terminals
Active sub woofer PRE OUT SUB WOOFER jack**
* See "Speaker impedance” on the next page.
** You can connect an active sub woofer to either of the two jacks. The
remaining jack can be used to connect a second active sub woofer.
16
Rear speaker (L)
Active sub woofer
€" To connect certain speakers to another amplifier
Use the PRE OUT jacks. The same signal is output from both the
SPEAKERS jacks and the PRE OUT jacks. For example, if you
want to connect just the front speakers to another amplifier,
connect that amplifier to the PRE OUT FRONT L and R jacks.
Notes on speaker system hookup
* Twist the stripped ends of the speaker cords about 2/3
inch (10 mm). Be sure to match the speaker cord to the
appropriate terminal on the components: 4 to * and -
to -. If the cords are reversed, the sound will be
distorted and will lack bass.
* If you use front speakers with low maximum input
rating, adjust the volume carefully to avoid excessive
output on the speakers.
