Sony STR-DG710 Service Manual

12
STR-DG710

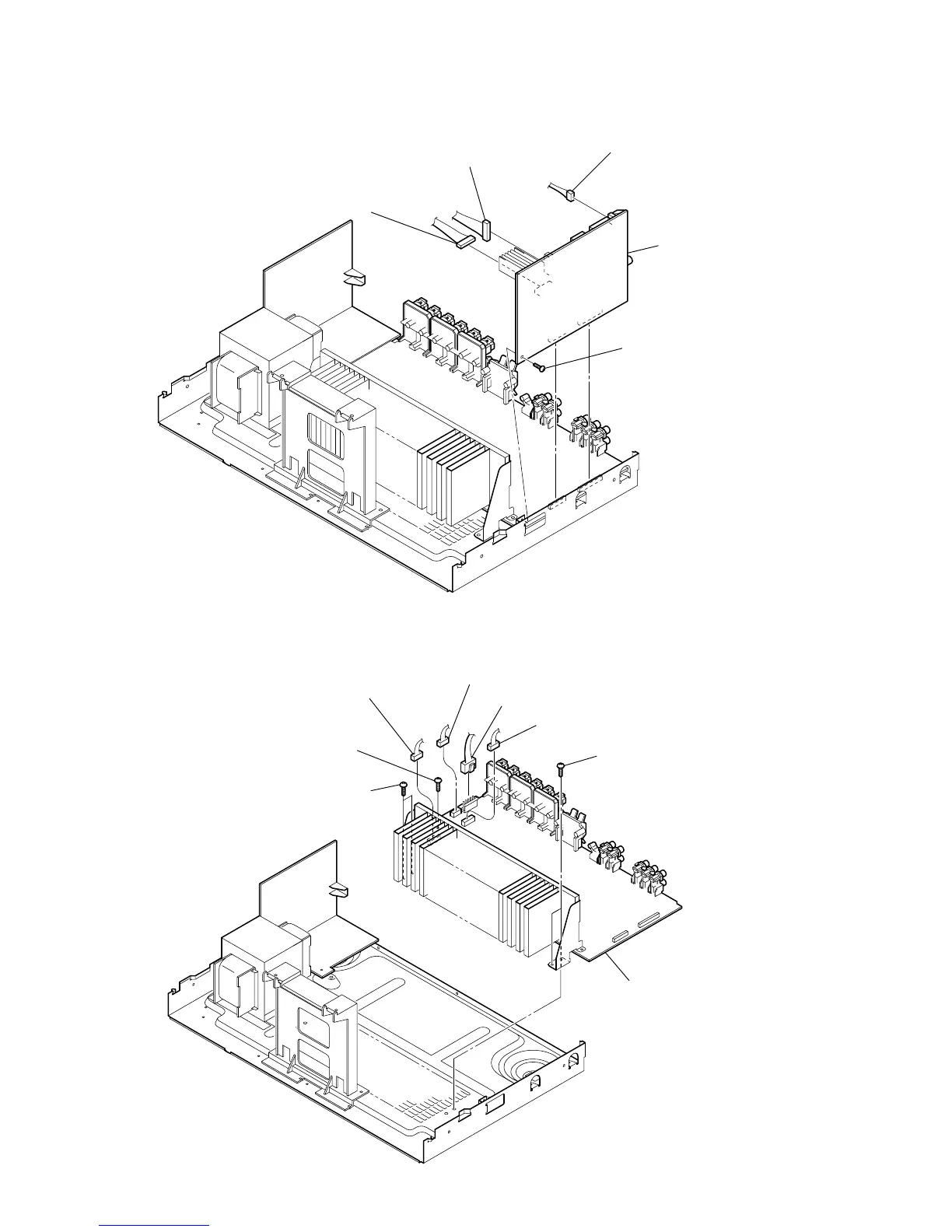

2-4. DIGITAL BOARD
2-5. MAIN BOARD SECTION
4 screw
(+BVTP 3
× 8)
5 DIGITAL board
1 CNP505 (7P)
3 CNP512 (3P)
2 CNP506 (8P)
7 two screws
(+BV3 (3
-CR) )
8 MAIN board sectio
n
6 two screws
(+BV3 (3
-CR) )
5 screw
(+BV3 (3
-CR) )
1 CNP801 (5P)
2 CNP802 (5P)
3 CNP912 (2P)
4 CN915 (5P)
