STR-DG710

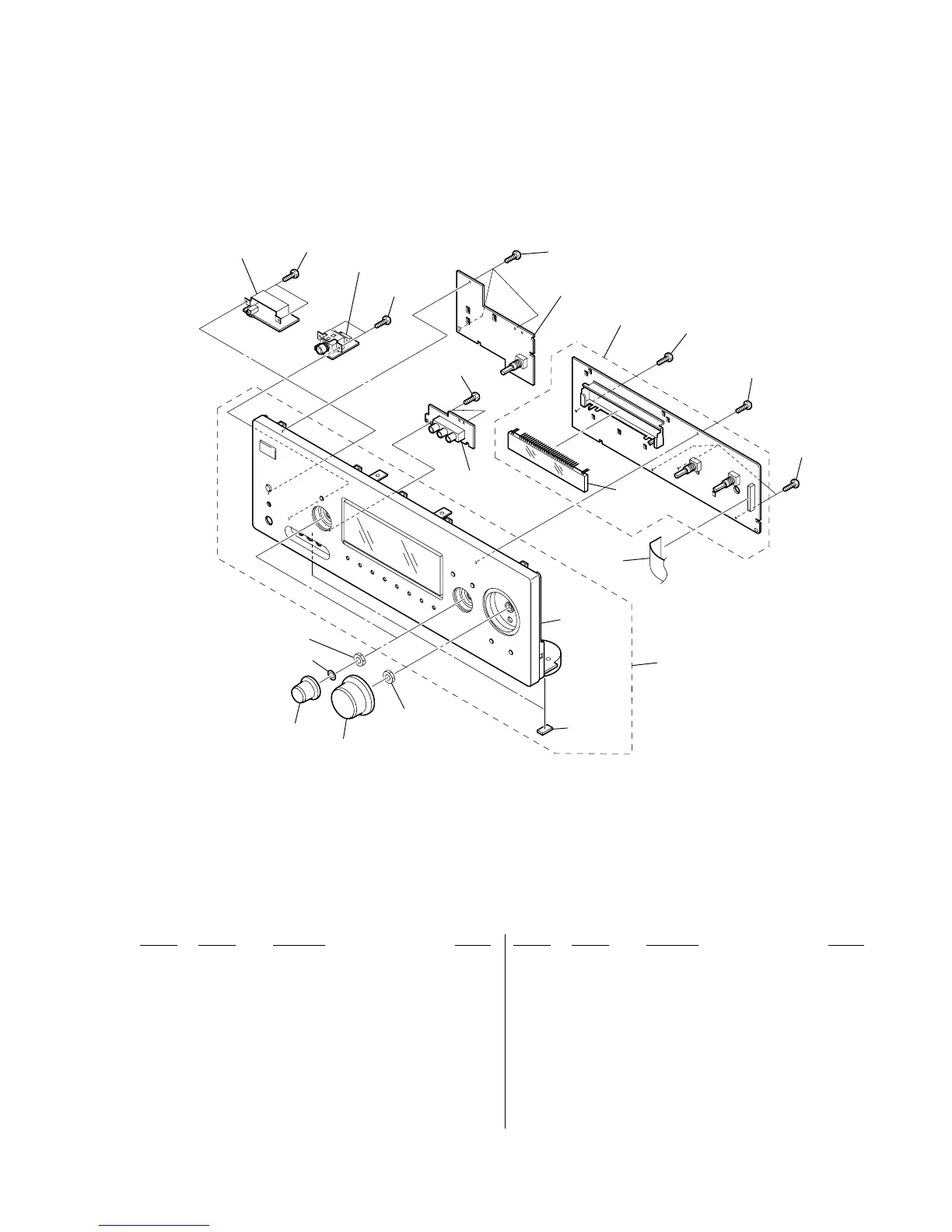

6-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-2176-234-1 FRONT PANEL ASSY (BLACK)...(BLACK) (US)
51 X-2176-235-1 FRONT PANEL ASSY (BLACK)...(BLACK)
(AEP,UK)
51 X-2176-236-1 FRONT PANEL ASSY (SILVER)...(SILVER)
(AUS,MY,SP,TH)
51 X-2176-511-1 FRONT PANEL ASSY (BLACK)...(BLACK) (CND)
51 X-2176-520-1 FRONT PANEL ASSY (SILVER)...(SILVER)
(AEP,UK)
52 4-977-358-01 CUSHION
53 2-661-142-01 KNOB (VOLUME) (BLACK)...(BLACK)
53 2-661-142-11 KNOB (VOLUME) (SILVER)...(SILVER)
54 2-661-141-01 KNOB (MENU) (BLACK)...(BLACK)
54 2-661-141-11 KNOB (MENU) (SILVER)...(SILVER)
55 3-087-053-01 +BVTP 2.6 (3CR)
56 A-1225-205-A DISPLAY BOARD, COMPLETE (US,CND)
56 A-1225-206-A DISPLAY BOARD, COMPLETE (AEP,UK)
56 A-1225-207-A DISPLAY BOARD, COMPLETE (MY,SP,TH)
56 A-1225-208-A DISPLAY BOARD, COMPLETE (AUS)
57 1-829-004-11 WIRE (FLAT TYPE) (19 CORE)
58 3-354-981-11 SPRING (SUS), RING
FL101 1-519-927-11 VACUUM FLUORESCENT DISPLAY
55
51
55
55
55
55
55
55
52
53
54
58
56
57
not supplied
(HEADPHONE board)
not supplied
(VIDEO 3 board)
not supplied
FL101
supplied with
RV102
supplied with
RV101,103
not supplied
(DCAC board)
not supplied
(POWER KEY board)
Ver. 1.1
