Sony STR-DG800 User Manual

32
US
F:\Sony SEM
HA\Revision2_DG800\JC060412_2667346121DG800_US\2667346121\US03CON_STR-DG800-
CEL.fm
masterpage: Left
STR-DG800
2-662-258-12 (1)

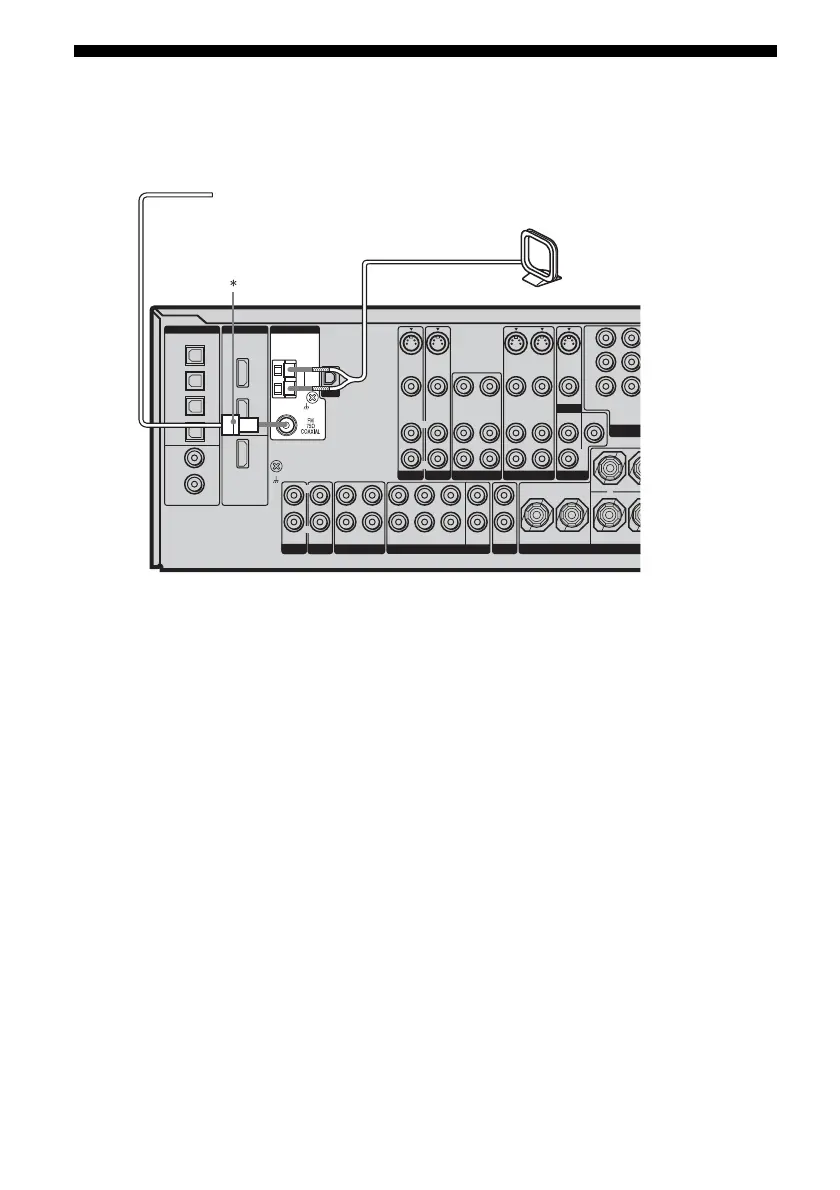

4: Connecting the antennas
Connect the supplied AM loop antenna and
FM wire antenna.
* The shape of the connector varies depending on
the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop antenna
away from the receiver and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it as
horizontal as possible.
• Do not use the U SIGNAL GND terminal for
grounding the receiver.
ASSIGNABL
TV/SAT
IN
DVD
IN
TV/SAT
AUDIO IN
VIDEO IN
S-VIDEO
IN
PRE OUT
MONITOR
VIDEO 1
AUDIO OUT
VIDEO OUT
S-VIDEO
OUT
VIDEO OUT
S-VIDEO
OUT
AUDIO IN
VIDEO IN
S-VIDEO
IN
DVD
AUDIO IN
VIDEO IN
S-VIDEO
IN
AUDIO IN
VIDEO IN
AUDIO OUT
VIDEO OUT
R
L
L
R
L
R
SUR
SUB
WOOFER
L
R
DVD
IN
COAXIAL
SA-CD/
CD
IN
OPTICAL
VIDEO 1
IN
TV/SAT
IN
MD/
TAPE
IN
MD/
TAPE
OUT
ASSIGNABLE
(INPUT ONLY)
PHONO
IN
SA-CD/CD
L
R
L
R
MULTI CH IN
L
R
ZONE 2
OUT IN
L
R
FRONT SURROUND
L
R
SUR
BACK
SUB
WOOFER
CENTER
OUT
IN
MD/TAPE
ASSIGNABLE
DVD
IN
TV/
SAT
IN
MONITOR OUT
XM
DIGITAL HDMI ANTENNA
AM
COMP
O
VIDEO 2
SURROUND
B
L
R
+
CENTER
+ –
SPEA
K
SIGNAL GND
FM wire antenna (supplied)
AM loop antenna (supplied)
US01COV_STR-DG800-CEL.book Page 32 Tuesday, March 14, 2006 3:53 PM

Sony STR-DG800 Specifications

General

Channels	7.1
HDMI Inputs	3
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
Component Video Inputs	3
Component Video Output	1
Digital Audio Inputs (Coaxial)	1
Tuner	AM/FM
Total Harmonic Distortion	0.09%
Surround Sound	Yes
Power Output	100W per channel (8 ohms, 20Hz-20kHz, 0.09% THD)
Frequency Response	10 Hz - 100 kHz +0.5/-2 dB
Inputs	HDMI, Component, Composite, Optical, Coaxial, Analog
Outputs	HDMI, Component, Composite, Analog
