STR-DG910

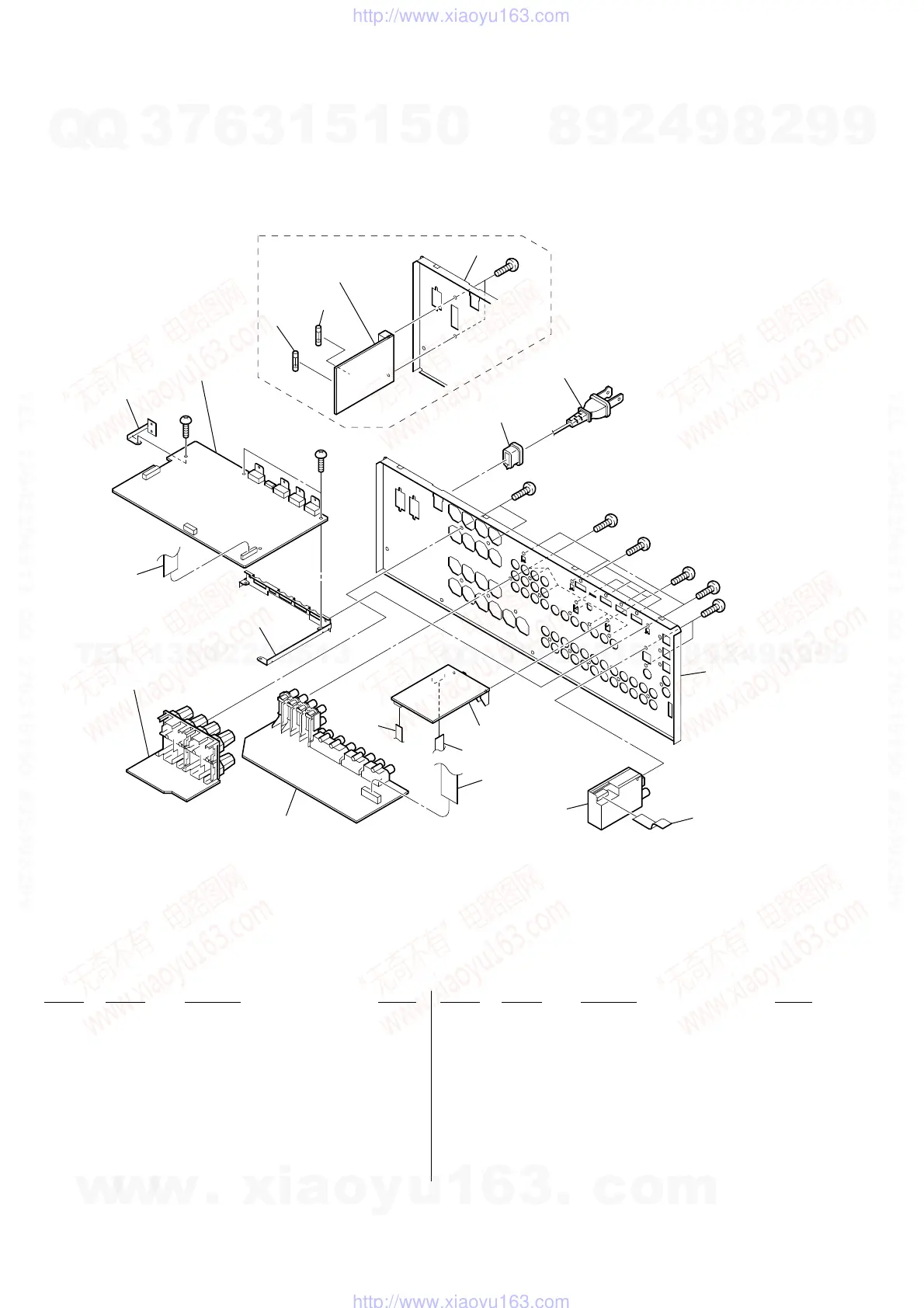

6-3. BACK PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 1-828-953-11 WIRE (FLAT TYPE) (9 CORE) (EXCEPT AEP,UK)
101 1-828-963-11 WIRE (FLAT TYPE) (11 CORE) (AEP,UK)
102 1-828-958-11 WIRE (FLAT TYPE) (9 CORE) (US,CND)
103 A-1222-793-A XM BOARD, COMPLETE (US,CND)
104 1-828-938-11 WIRE (FLAT TYPE) (5 CORE) (US,CND)
105 1-828-982-11 WIRE (FLAT TYPE) (15 CORE)
106 A-1231-372-A VIDEO BOARD, COMPLETE (US,CND)
106 A-1231-977-A VIDEO BOARD, COMPLETE (EXCEPT US,CND)
107 1-828-350-51 WIRE (FLAT TYPE) (17 CORE)
9 108 A-1237-655-A HDMI RE BOARD, COMPLETE (for SERVICE)
109 3-703-244-21 BUSHING (2104), CORD
0 110 1-777-071-83 CORD, POWER (EXCEPT US,CND)
0 110 1-783-820-11 CORD, POWER (US,CND)
0 F904 1-532-505-33 FUSE (T5AL/250V) (E2)
0 F905 1-532-504-33 FUSE (T4AL/250V) (E2)
TN1 1-693-728-11 TUNER (FM/AM) (ANTENNA) (EXCEPT AEP,UK)
TN1 1-693-737-11 TUNER (FM/AM) (ANTENNA) (AEP,UK)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
#3 7-685-862-09 SCREW +BVTT 2.6X6 (S)
109
101
104
106
105
108
107
102
103
#1
#1
#1
#1
#1
#1
#1
#3
#2
not supplied
(SPEAKER board)
not supplied
(AC SELECT board)
(E2 model)
E2 model
TN1
not supplied
not supplied
not supplied
not supplied
F905
F904
110
