STR-KS1200
5
SECTION 2
DISASSEMBLY
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
2-2. CASE (SL07)
(Page 5)
2-3. HDMI RE BOARD
(Page 6)
2-5. MAIN BOARD
(Page 7)
2-4. FRONT PANEL BLOCK
(Page 6)
SET
Note: Follow the disassembly procedure in the numerical order shown below.

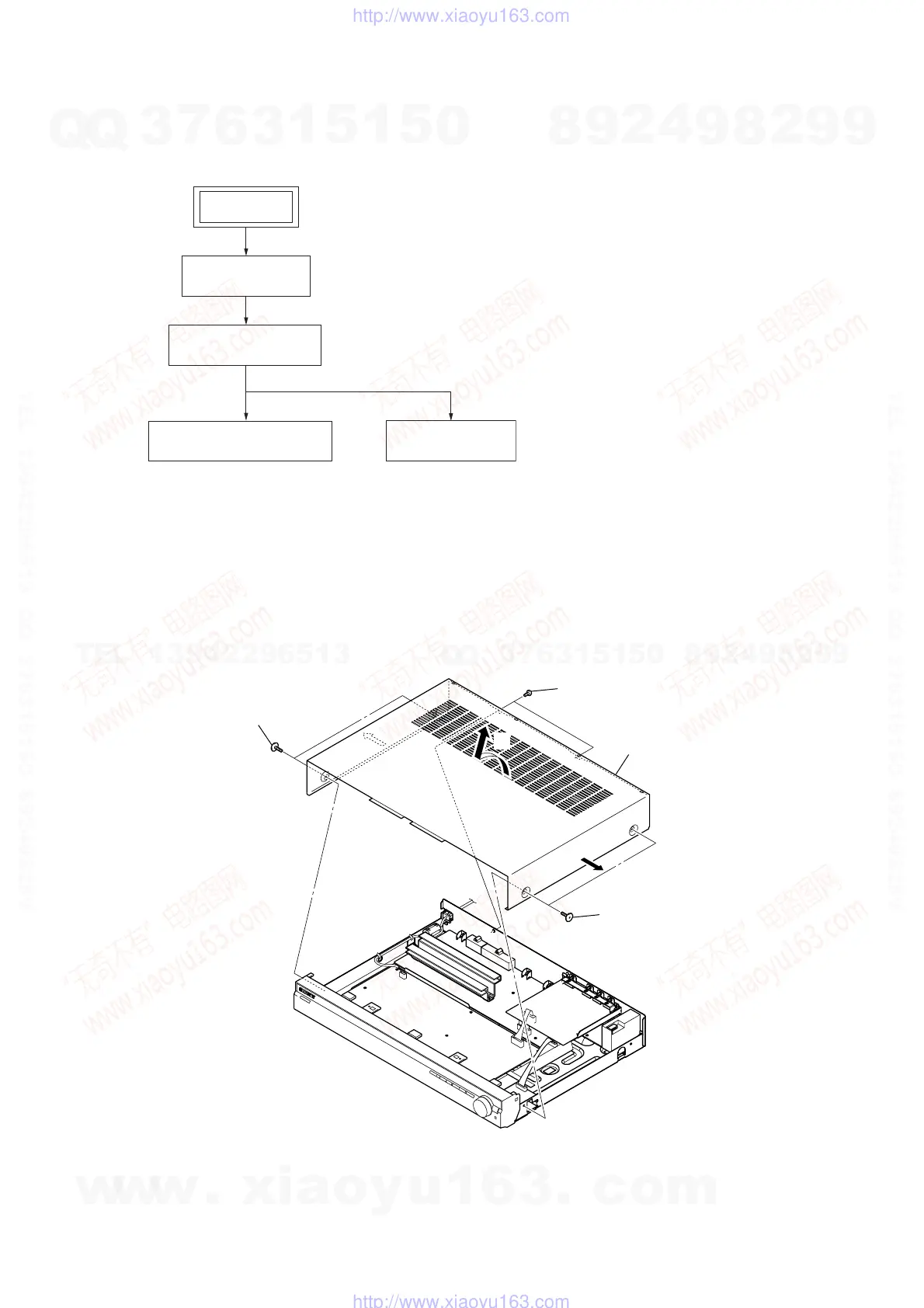

2-2. CASE (SL07)
two screws
(BVTP3 × 8)
two tapping screws
Remove the case (SL07)
in the direction of arrow ".
