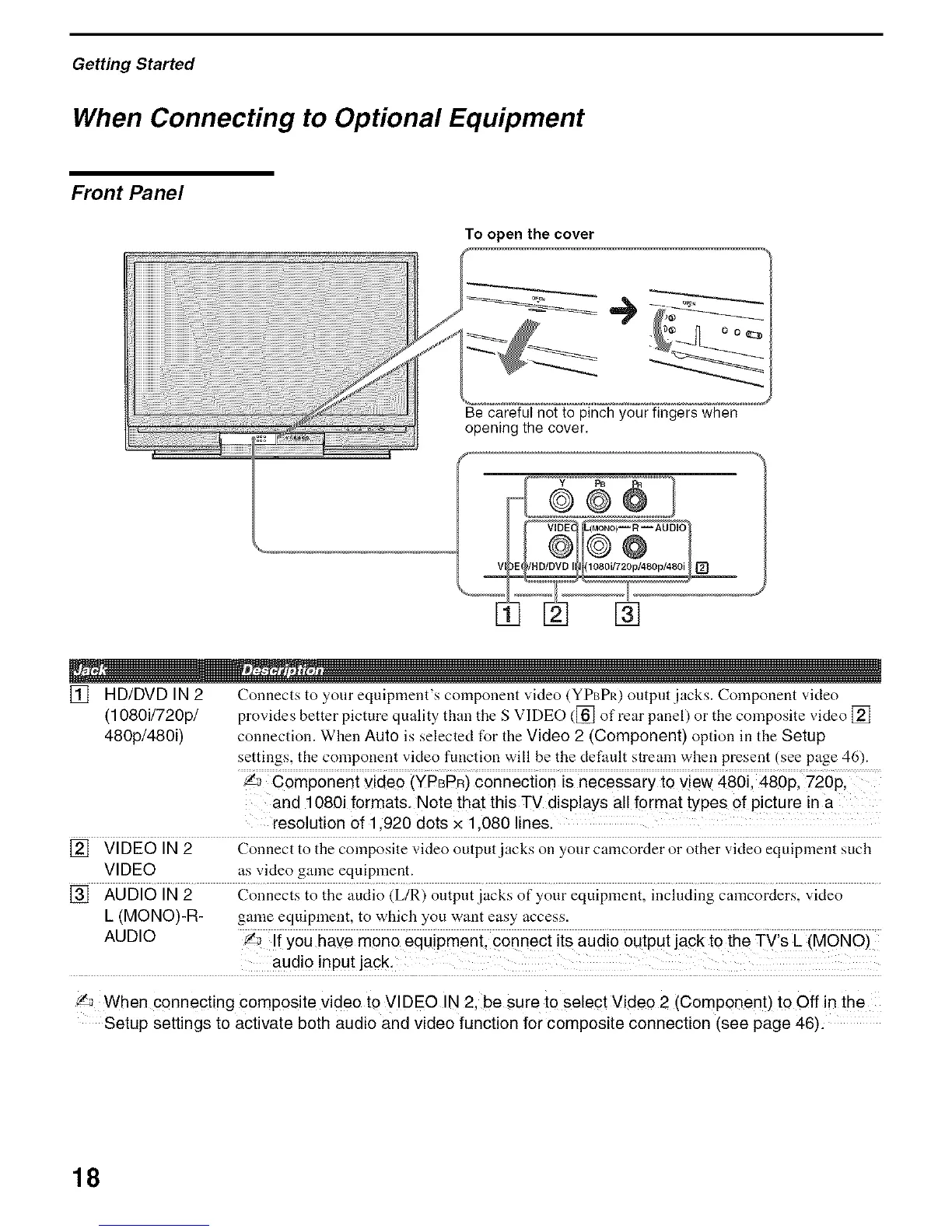

Getting Started
When Connecting to Optional Equipment
Front Panel
To open the cover
Be careful not to pinch your fingers when
opening the cover.
[] HD/DVD IN 2 Connects to your equipment's component video (YPBPR) output jacks. Component video
(1080i/720p/ provides better picture quality than the S VIDEO ([_] of rear panel) or the composite video []
480p/480i) connection. When Auto is selected for the Video 2 (Component) option in the Setup
settings, the component video function will be the default stream when present (see page 46).
.... ci n;c;ss i g6p _
and 1080i formats. Note that this TV displays all format types of picture in a
resolution of 1,920 dots X 1,080 lines.
[] VIDEO IN 2 Connect to the composite video output jacks on your camcorder or other video equipment such
VIDEO as video game equipment.
[] AUDIO IN 2 Connects to the audio (L/R) output jacks of your eqnipment, including camcorders, video
k (MONO)-R- game equipment, to which you want easy access.
AUDIO _iii you have m0no equipmenil ;onnec{ iis aud o outpui jacki0i66
audio input Jack
'_ When connecting composite video te VIDEO IN 2, be sure to select Video 2 (Component) to Off in the
Setup settings to activate both audio and video function for composite connection (see page 46).
