Getting Started

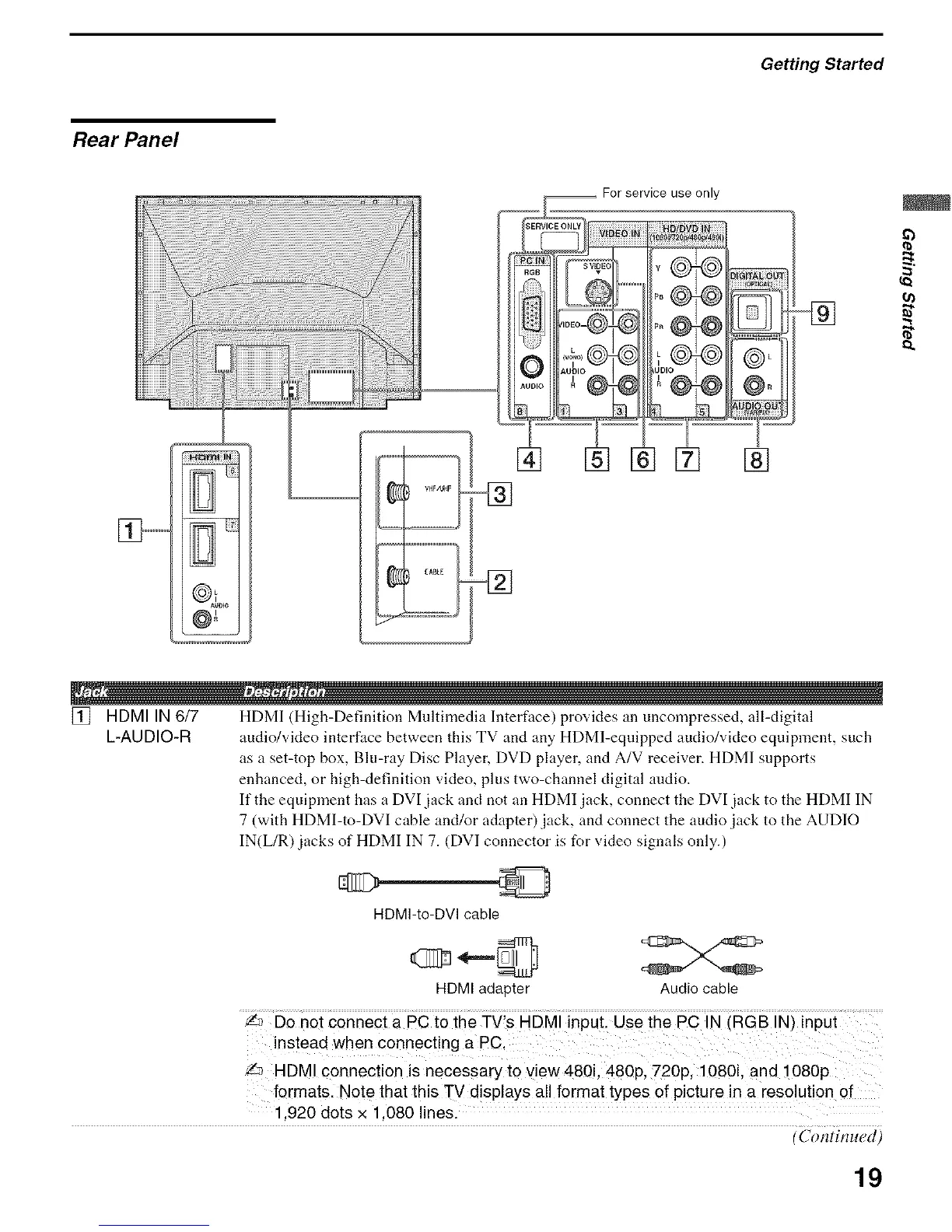

Rear Panel
[]
__ For service use only
F,' q% 171 []
_b
[] HDMI IN 6/7
L-AUDIO-R
HDMI (High-Definition Multimedia Interface) provides an uncompressed, all-digital
audio/video interface between this TV and any HDMI-equipped audio/video equipment, such
as a set-top box, Blu-ray Disc Player, DVD player, and A/V receiver. HDMI supports
enhanced, or high-definition video, plus two-channel digital audio.
If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN
7 (with HDMI-to-DVI cable and/or adapter)jack, and connect the audio jack to the AUDIO
IN(L/R) jacks of HDMI IN 7. (DVI connector is for video signals only.)
HDMI-to-DVI cable
Q-©
HDMI adapter
Audio cable
.....S_ ...................................................................................................................................................................Do net connect a PC to the TVsHDM'......................................input. Use thePC:..............................................................N(RGB........................................N) input:
instead when connecting a PC.
_ HDMI connection is necessary to view 480i, 480p, 720p, 1080i, and 1080p
formats. Note that this TV displays all format types of picture in a resolution Of
1,920 dots × 1,080 lines.
(Continued)
19
To Next Page
