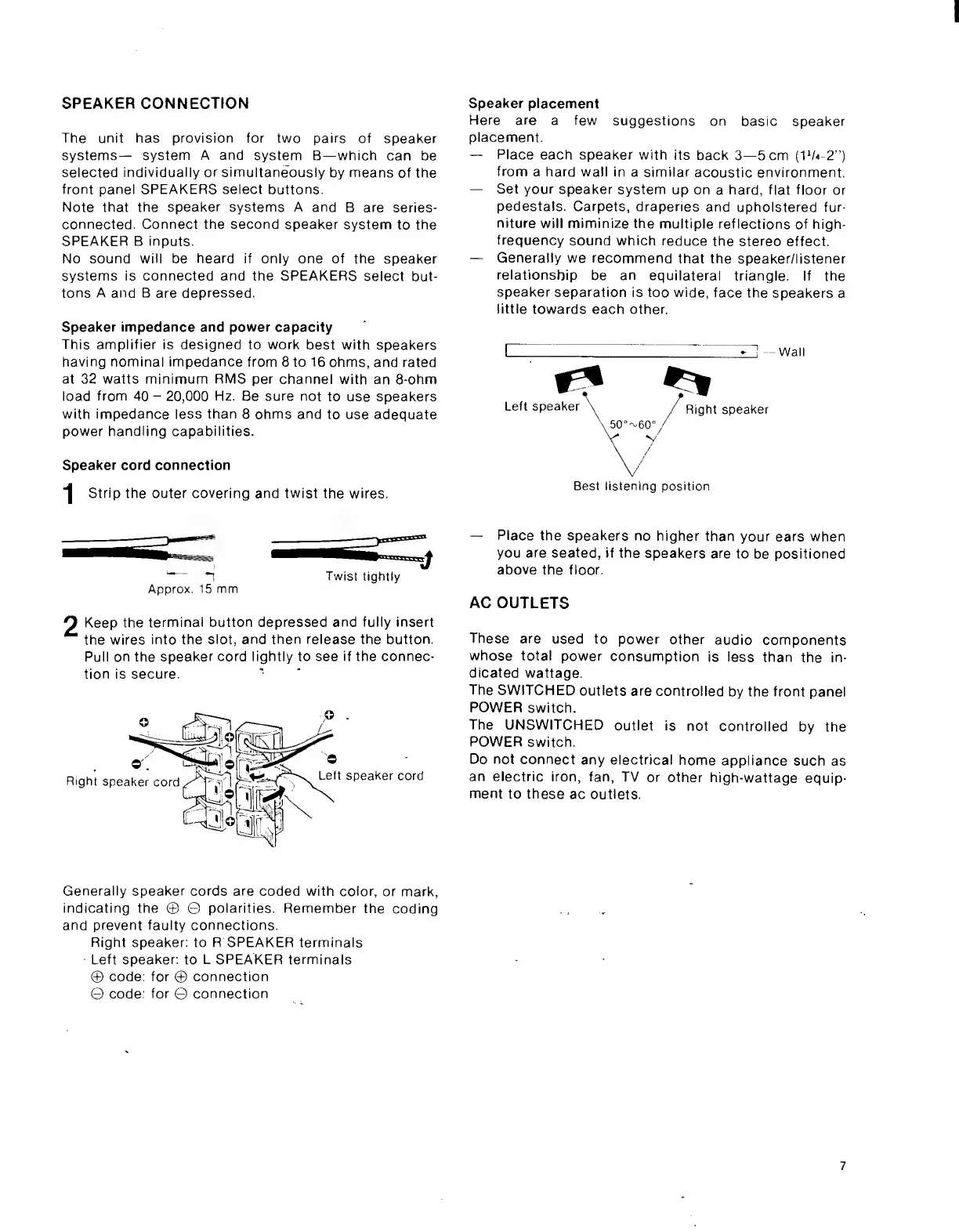

SPEAKER CONNECTION
The unit has provision for two pairs of speaker
systems— system A and system B—which can be
selected individually or simultaneously by means of the
front panel SPEAKERS select buttons.
Note that the speaker systems A and B are series-
connected. Connect the second speaker system to the
SPEAKER B inputs.
No sound will be heard if only one of the speaker
systems is connected and the SPEAKERS select but¬
tons A and B are depressed.
Speaker impedance and power capacity
This amplifier is designed to work best with speakers
having nominal impedance from 8 to 16 ohms, and rated
at 32 watts minimum RMS per channel with an 8-ohm
load from 40 - 20,000 Hz. Be sure not to use speakers
with impedance less than 8 ohms and to use adequate
power handling capabilities.
Speaker cord connection
"| Strip the outer covering and twist the wires.
Speaker placement
Here are a few suggestions on basic speaker
placement.
— Place each speaker with its back 3—5 cm (1V«-2”)
from a hard wall in a similar acoustic environment.
— Set your speaker system up on a hard, flat floor or
pedestals. Carpets, draperies and upholstered fur¬
niture will miminize the multiple reflections of high-
frequency sound which reduce the stereo effect.
— Generally we recommend that the speaker/listener
relationship be an equilateral triangle. If the
speaker separation is too wide, face the speakers a
little towards each other.
V© -Wall
1 - “1
Approx. 15 mm
Twist tightly
O Keep the terminal button depressed and fully insert
^ the wires into the slot, and then release the button.
Pull on the speaker cord lightly to see if the connec¬
tion is secure.
— Place the speakers no higher than your ears when
you are seated, if the speakers are to be positioned
above the floor.
AC OUTLETS
These are used to power other audio components
whose total power consumption is less than the in¬
dicated wattage.
The SWITCHED outlets are controlled by the front panel
POWER switch.
The UNSWITCHED outlet is not controlled by the
POWER switch.
Do not connect any electrical home appliance such as
an electric iron, fan, TV or other high-wattage equip¬
ment to these ac outlets.
Generally speaker cords are coded with color, or mark,
indicating the © © polarities. Remember the coding
and prevent faulty connections.
Right speaker: to R SPEAKER terminals
Left speaker: to L SPEAKER terminals
© code: for © connection
© code: for © connection
7

Sony TA-AX310 Specifications

Power

power requirement	120 V ac. 60 Hz
power consumption	75 W
power output	32 watts per channel

Weight and Dimensions

weight	Approx. 4.8 kg
shipping weight	Approx. 6.3 kg
dimensions	430 x 106 x 285 mm
