Sony TA-S7AV - 6 Exploded Views; Cover Section; Front Panel Section

TA-S7AV
2020

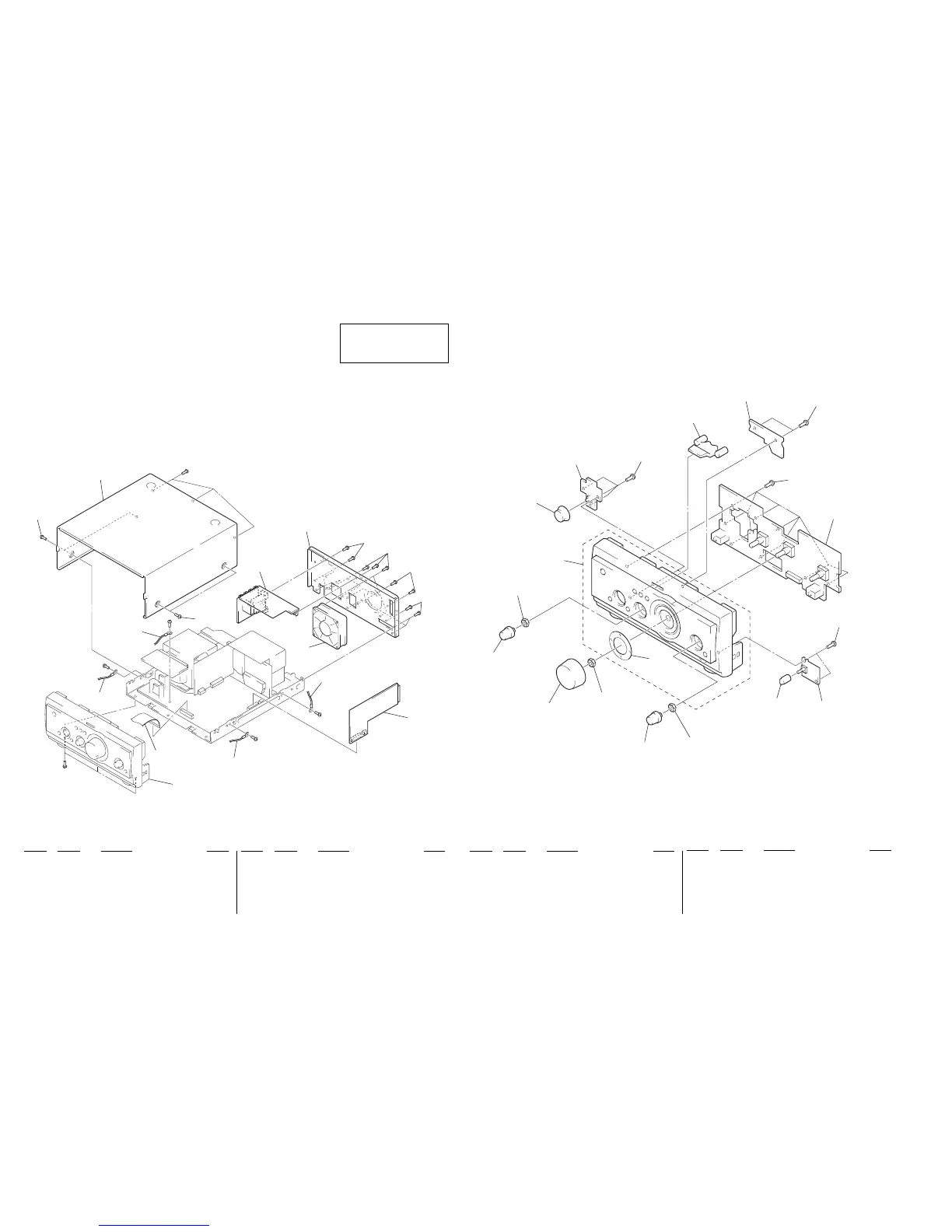

6-1. COVER SECTION
SECTION 6
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
6-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
#4
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
Front panel section
2
2
1
5
6
7
4
3
not supplied
not supplied
not supplied
51
51
53
52
54
59
56
supplied with S702
supplied with S703
supplied with S701
zC
zA
zB
55
56
57
56
56
58
(including zA,
zB, zC)
1 1-773-178-11 WIRE (FLAT TYPE) (23 CORE) (AEP, UK)
1 1-773-210-11 WIRE (FLAT TYPE) (25 CORE) (KR, MX, AUS)
2 3-363-099-21 SCREW (CASE 3 TP2)
3 4-232-336-11 COVER
4 4-232-337-01 PANEL (AV), BACK (AEP)
4 4-232-337-31 PANEL (AV), BACK (UK)
4 4-232-337-51 PANEL (AV), BACK (AUS)
4 4-232-337-71 PANEL (AV), BACK (MX)
4 4-232-337-81 PANEL (AV), BACK (KR)
5 1-680-751-11 SUB TRANS BOARD
6 1-763-072-11 FAN, D. C.
7 1-680-755-11 RELAY BOARD
51 4-232-342-01 KNOB (FUNC)
52 4-232-338-01 KNOB (VOL)
53 X-4953-453-1 PANEL ASSY, FRONT (AEP, UK)
53 X-4953-455-1 PANEL ASSY, FRONT (KR, MX, AUS)
54 4-232-341-01 SHEET (VOL)
55 4-232-343-01 BUTTON (ENTER)
56 4-951-620-01 SCREW (2.6X8), +BVTP
57 4-232-344-01 INDICATOR (BLUE)
58 A-4476-220-A PANEL BOARD, COMPLETE (AEP, UK)
58 A-4476-241-A PANEL BOARD, COMPLETE (KR, MX, AUS)
59 4-232-340-01 KNOB (MIC) (KR, MX, AUS)
• Abbreviation
AUS : Australian model
KR : Korean model
MX : Mexican model
