21
TA-S7AV
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.

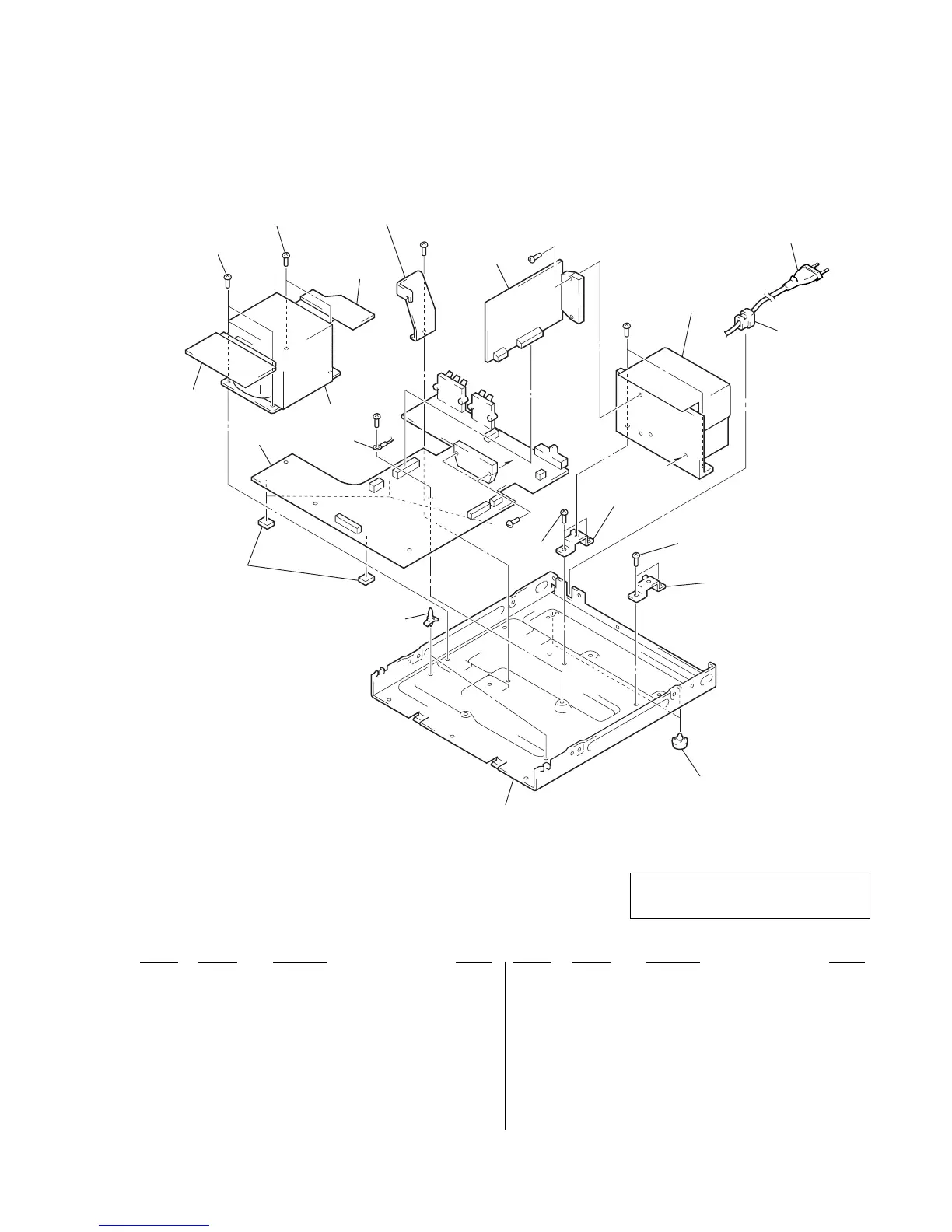

6-3. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 A-2007-899-A FRONT AMP BOARD, COMPLETE
(KR, MX, AUS)
101 A-4476-214-A FRONT AMP BOARD, COMPLETE (AEP, UK)
102 1-680-753-11 AC OUTPUT BOARD
103 4-900-386-01 SCREW
104 1-680-752-11 AC INPUT BOARD
105 A-2007-897-A SURROUND AMP BOARD, COMPLETE
(KR, MX, AUS)
105 A-4476-217-A SURROUND AMP BOARD, COMPLETE
(AEP, UK)
106 3-970-608-01 SUMITITE (B3), +BV
107 4-965-822-01 FOOT
* 108 3-703-244-00 BUSHING (2104), CORD
0 109 1-769-079-21 CORD, POWER (KR)
0 109 1-777-071-81 CORD, POWER (AEP)
0 109 1-783-203-11 CORD, POWER (AUS)
0 109 1-790-226-11 CORD, POWER (UK)
0 109 1-791-901-11 CORD, POWER (MX)
0 T911 1-435-934-11 TRANSFORMER, POWER (AEP, UK)
0 T911 1-435-935-11 TRANSFORMER, POWER (KR, MX, AUS)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
#2
#1
#1
#2
#3
T911
107
106
106
101
102
103
103
104
105
109
108
To Next Page
