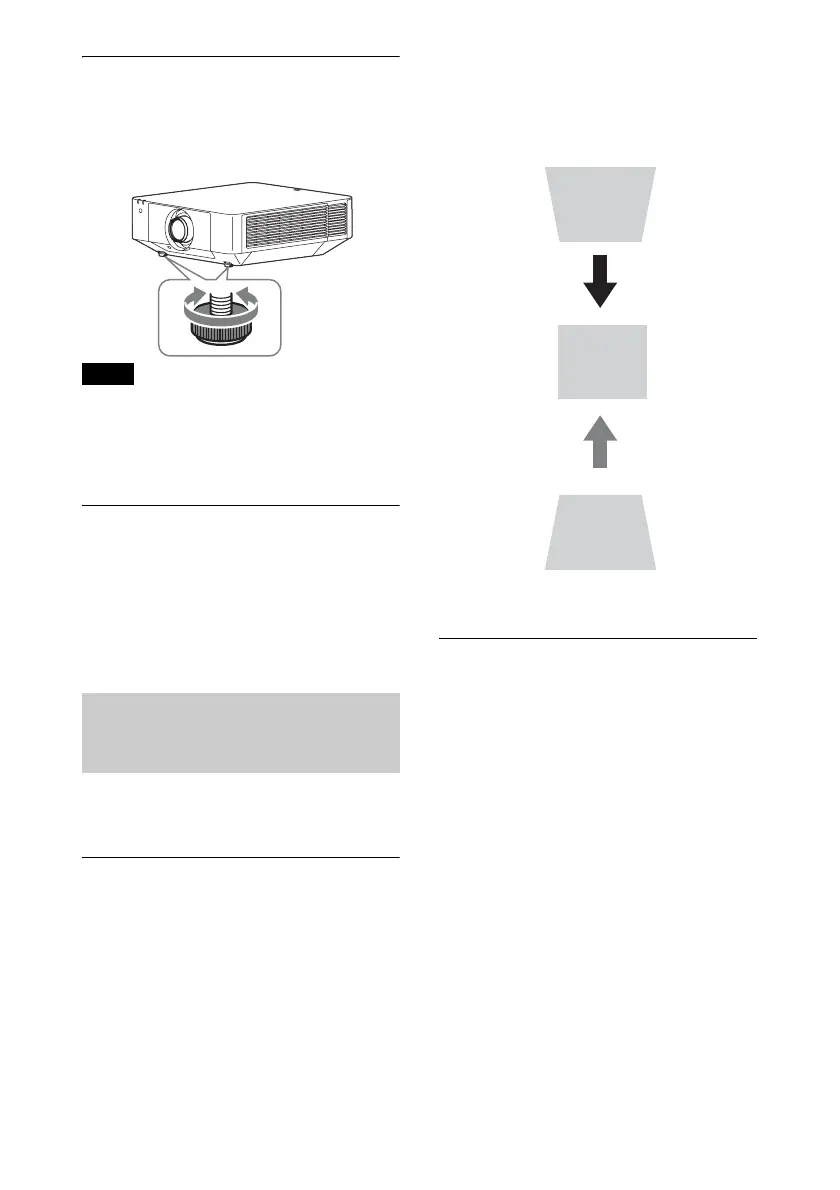

Adjusting the tilt of the projector
with the front feet (adjustable)
When the projector is installed on an uneven
surface, you can adjust using the front feet
(adjustable).
• Be careful not to let the projector down on
your fingers.
• Do not push hard on the top of the projector
with the front feet (adjustable) extended. It
may cause a malfunction.
Displaying a pattern for adjusting
an image
You can display a pattern for adjusting the
projected image with the PATTERN key on
the Remote Commander. Use V/v to change
the pattern and B/b to change its color.
Press the PATTERN key again to restore the
previous image.
If the screen is tilted, or you are projecting
from an oblique angle, perform keystone
adjustment.
If the projected image is
trapezoidally-distorted in the
vertical plane
1 Press the KEYSTONE key on the
Remote Commander once or select
“Screen Fitting” in the Installation
menu (page 36).
The “Screen Fitting” menu is displayed.
2 Select “V Keystone.”
3 Adjust the value using B/b.
The higher the setting, the narrower the
top of the projected image. The lower
the setting, the narrower the bottom of
the projected image.
Press the
RESET key to restore the
projected image before adjustment.
*1
If the projected image is
trapezoidally-distorted in the lateral
plane
1 Press the KEYSTONE key on the
Remote Commander once or select
“Screen Fitting” in the Installation
menu (page 36).
The “Screen Fitting” menu is displayed.
2 Select “H Keystone.”
Notes
Correcting for Trapezoidal
Distortion of the Projected
Image (Keystone Adjustment)
Increase setting
Decrease setting
To Next Page
