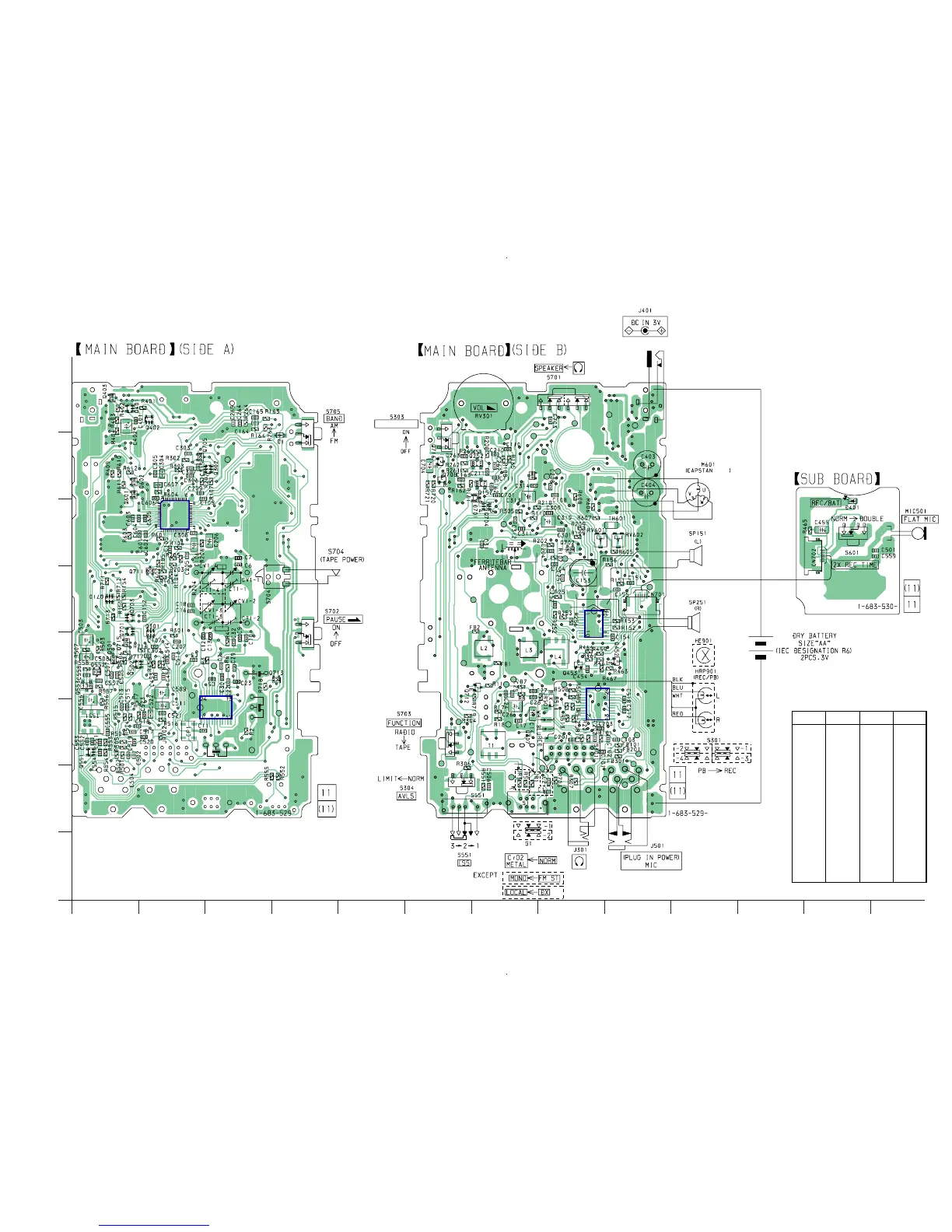

6-3. PRINTED WIRING BOARDS
IC151
IC501
IC301
IC1
X2
CF2
CF1
Q707
–1 –2
/REEL
SOUND BOOST
EXCEPT
US, CND,
5E
US, CND, 5E
EXCEPT
US, CND, 5E
US, CND, 5E
US, CND, 5E
12
A
B
C
D
E
F
G
H
345678910111213
• Semiconductor Location
Ref. No. Location
D1 B-4
D401 C-12
D701 C-7
IC1 F-3
IC151 D-8
IC301 C-2
IC501 E-9
Q152 B-7
Q252 B-7
Q301 D-2
Q302 B-3
Q401 A-1
Q402 A-2
Q403 A-1
Q452 E-9
Q453 E-8
Q501 E-1
Ref. No. Location
Q502 E-1
Q551 F-1
Q552 E-1
Q553 E-1
Q601 B-1
Q602 B-2
Q701 D-1
Q702 C-8
Q703 D-1
Q704 C-7
Q705 B-3
Q707 B-7
Q708 B-6
Q710 D-1
Q711 D-2
Q712 E-6
Q713 E-4
Q715 E-1
Q716 B-6
