Sony WM-GX221 - Mechanism Deck Block 2 Exploded View

20
WM-GX221

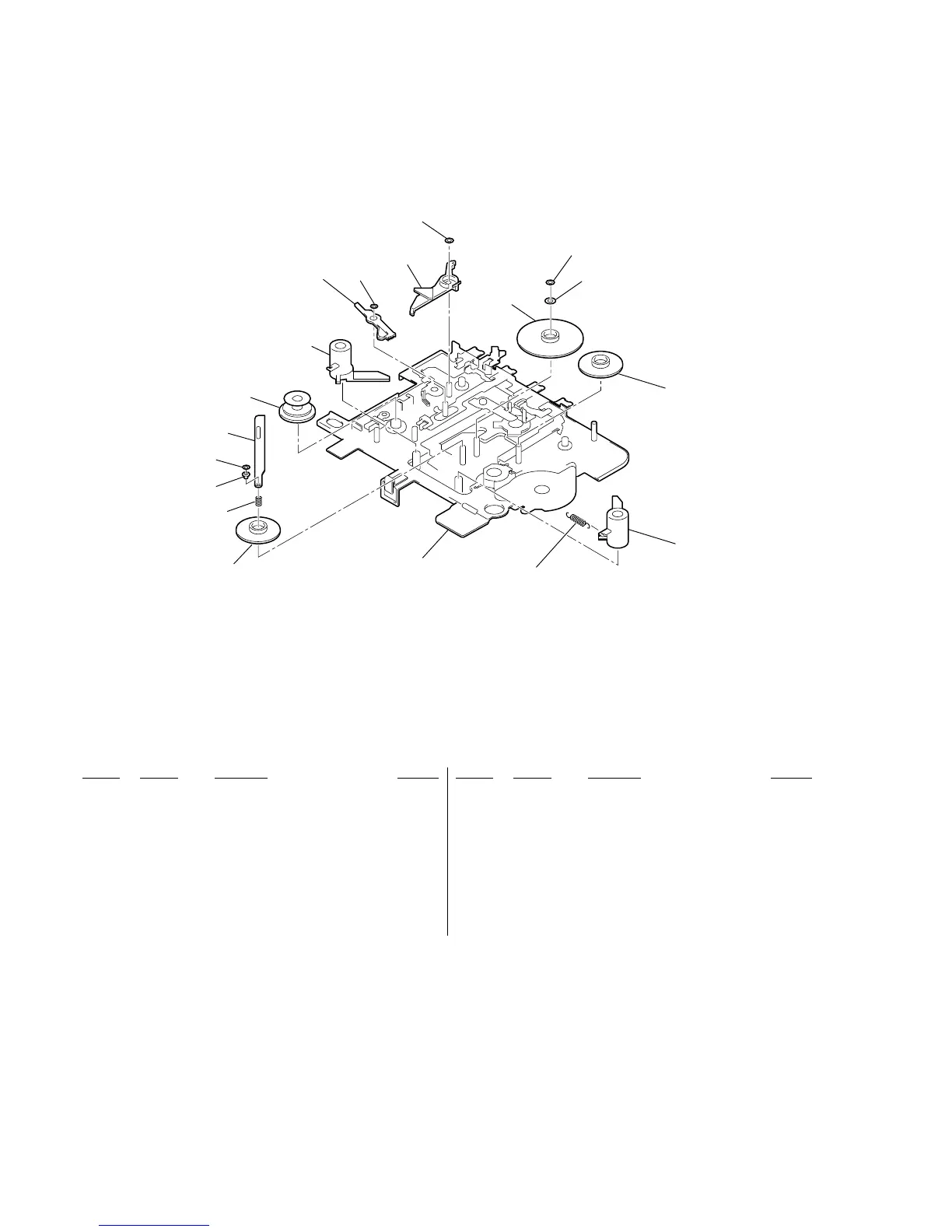

7-4. MECHANISM DECK BLOCK-2
(MT-WMGX221-175)
(Including A)
152
153
154
155
156
157
159
160
161
162
164
165
166
172
169
170
171
151
z
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
151 X-3381-206-1 CHASSIS ASSY (ARO)
152 3-225-385-01 GEAR (B)
153 3-229-063-01 SPRING (UD) (R), COMPRESSION
154 3-019-778-01 SLEEVE (MS)
155 3-728-091-01 WASHER, STOPPER
156 3-225-427-01 WASHER, LEVER
157 3-225-384-01 GEAR (A)
159 3-225-395-01 LEVER (REW ROTARY)
160 X-3380-677-1 LEVER (E DETECTION) ASSY
161 3-229-064-01 WASHER, STOPPER
162 3-225-393-01 LEVER (SHUT/OFF)
164 3-321-813-71 WASHER, COTTER POLYETHYLENE
165 X-3379-881-1 CLUTCH ASSY (AR)
166 3-315-384-31 WASHER, STOPPER
169 3-225-388-01 GEAR (D)
170 3-225-394-01 LEVER (FF ROTARY)
171 3-225-444-01 SPRING (FR ROTARY), TENSION
172 3-344-901-01 WASHER, STOPPER
