— 28 —
SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.

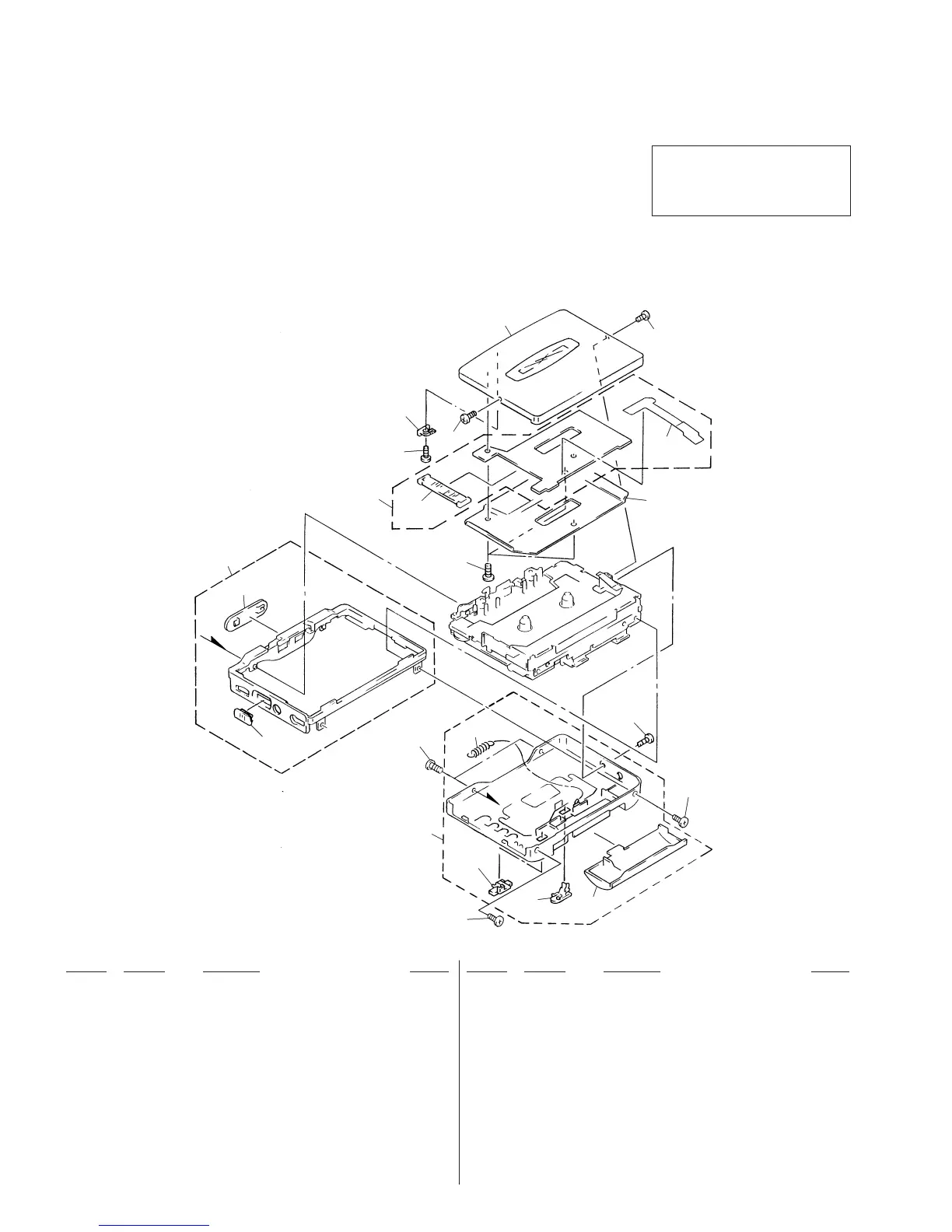

7-1. CASE SECTION
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Abbreviation
IT : Italian model
EA : Saudi Arabia model
JE : Tourist model
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
REF.No. Part No. Description RemarkREF.No. Part No. Description Remark
1 X-3371-291-1 LID (GX-Z) ASSY, CASSETTE (GX512)
1 X-3371-293-1 LID (GX-B) ASSY, CASSETTE (GX510)
2 3-704-197-11 SCREW (M1.4X2.0)
3 3-930-798-01 LOCKER, OPEN
4 3-318-382-61 SCREW (1.7X2.5), TAPPING
5 A-3016-756-A TUNER BOARD, COMPLETE
6 1-658-565-11 TUNER FLEXIBLE BOARD
7 3-930-797-01 COVER (TU)
8 X-3371-596-1 ORNAMENT (G7) ASSY, REEL (GX512)
8 X-3371-599-1 ORNAMENT (G3) ASSY, REEL (GX510)
9 3-928-474-01 KNOB (OPEN)
10 3-930-794-01 KNOB (HOLD)
11 3-704-197-33 SCREW (M1.4X3.0)
12 X-3371-597-1 CASE (RZ) ASSY (GX512)
12 X-3371-598-1 CASE (RB) ASSY (GX510)
13 3-930-806-01 SPRING, TENSION
14 3-932-654-01 KNOB (I)
15 3-932-653-01 KNOB (R)
16 3-932-649-21 LID, BATTERY CASE (GX510)
16 3-932-649-31 LID, BATTERY CASE (GX512)
L5 1-501-812-11 ANTENNA, FERRITE-ROD
1
3
4
5
2
L5
4
2
7
6
9
8
10
11
13
12
15
16
14
11
2
11
To Next Page
